Product Details:
|
| Name: | Poultry Feed Pellet Machine | ITEM: | Pellet Making Machine |
|---|---|---|---|
| Weight (KG): | 350 | Driven Type: | Motor ,diesel Engine,PTO |
| Pellet Diameter: | 2-12 Mm (can Be Selecation) | Warranty: | 1 Year |
| Raw Material: | Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton | Show Room: | Viet Nam, Indonesia,China |
| Key Selling: | Easy To Operate | Power Supply: | Diesel Engine/gasoline/motor/PTO Driven |
| Certificate: | CE | Dust Remove System: | Cyclone And Bag Dust, To Remove The Dust |
| Capacity: | 800-1000kg/h | ||
| High Light: | Biomass Sawdust Wood Pellet Mill,Alfalfa Sawdust Wood Pellet Mill,10T/H Organic Manure Wood Pellets Machine |
||

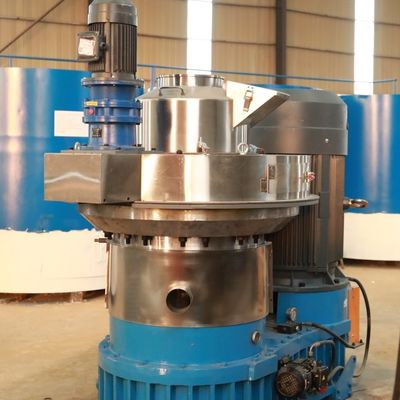

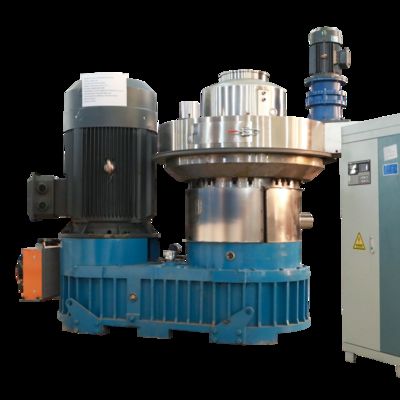

Wood Pellet Mill 1-10 T/H Organic Fertilizer Manure Alfalfa Fuel Hay Rice Husk Chips Grass Biomass Sawdust Wood Pellet
1) The main motor drive the ring die mould rotated. the press roller that were placed inside of the roller does not revolution, but will rotate because the friction of the ring die mould and sawdust wood powder raw material.
2) The biomass wood sawdust powder raw material was spread evenly into the space between the ring die and roller, and was press into the mould hole, formed column shape pellet, the pellet will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value.
3) Feeder: feeding raw material into the wood pelleting chamber.the feeder is made of stainless steel.
4) Forced feeding unit: since the raw material is fluffy, and the bulking value is higher, we equip the force feeding sets.
5) Pellet making unit: ring die mould and press roller inside work together to make the raw material into wood pellet.
6) Main motor: driving the pellet making system.
| Model |
Capacity (kg/h) |
Power (kw) |
Specification (mm) |
Weight(t) |
Dimension (mm) |
| RKL-250 | 100-200 | 15 | 4-6 | 0.5 | 1400*600*1000 |
| RKL-280 | 150-250 | 22 | 4-6 | 0.65 | 1760*670*1600 |
| RKL-300 | 100-300 | 30 | 4-8 | 0.76 | 1860*670*1600 |
| RKL-350 | 300-600 | 37 | 4.5-10 | 2.2 | 1900*850*1750 |
| RKL-400 | 500-800 | 55 | 4.5-10 | 4.3 | 2300*1100*1900 |
| RKL-550 | 1000-1500 | 90 | 4.5-12 | 5.5 | 2350*1100*2050 |
| RKL-800 | 1500-2500 | 160 | 4.5-12 | 6.8 | 3200*1235*2700 |
| RKL-1200 | 3000-5000 | 320 | 4.5-15 | 19 | 3800*1700*4200 |
24 hours continuous work
Automatic lubrication system to ensure 24-hour uninterrupted work, thereby increasing production
30% reduction in failure
The main shaft is thickened by 15% and adopts a high-strength bearing structure to reduce the failure rate.
Double-layer mold
Double-layer mold, one set of mold can produce two kinds of pellets of different specifications, which can effectively reduce the cost.
Vacuum quenching Process
The ring die is durable than alloy steel or carbon steel thanks to 42CrMo material. Compression stepped die hole help the sawdust enters smoothly.
