Biomass straw pellet fuel production line

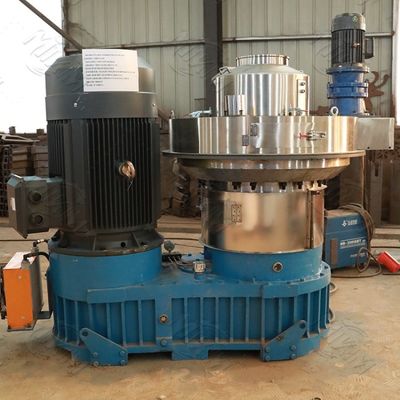

Large Image : Biomass straw pellet fuel production line

Product Details:

Place of Origin:	China
Brand Name:	MIKIM
Certification:	CE
Model Number:	Biomass straw pellet fuel production line

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	9000USD
Packaging Details:	Standard export packing
Delivery Time:	5-8work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100t/h

Contact Now

Biomass straw pellet fuel production line

Description

Raw Material:

Waste Wood Branch

Knife Qty:

168

Packing:

Standard Export Packing

Highlight:

biomass pellet production line

straw pellet fuel machine

wood sawdust pelletizer

Biomass Straw Pellet Fuel Production Line

Biomass Wood Pellet Machine is our competitive products. We are specialized in designing and manufacturing biomass pellet machinery and the complete production line (all auxiliary equipment) with advanced technology. Applications of Wood Pellet Production Line: It is mainly used for agro-forestry residues ,such as straw ,cotton stalk , rice husk, peanut shell ,bamboo,empty fruit branch,pulverized coal and waste paper etc.

Raw Material Compatibility Analysis

Wood Raw Materials (Pine/Fir, Moisture Content Required: 12-15%)
Agricultural Residues (Rice Husks/Corn Straw, Requires 1-2% Binder Addition)
New Raw Materials (Palm Fruit Bunches/Coffee Husks, Calorific Value Comparison)

Pretreatment Standards

Particle Size (3-5mm Screen Passage ≥95%)
Drying Control (Drum Dryer Exit Moisture 10-12%)

Technical Specifications

Model	Capacity	Power	Particle Size	Product Size	Weight
MK 560	1-1.5T/H	90KW	4-12MM	262016401770MM	5.2T
MK 560A	1.5-2T/H	132KW	4-12MM	268015601770MM	5.6T
MK 700	2-2.5T/H	160KW	4-12MM	256013802020MM	7.2T
MK 860A	3-4T/H	250KW	4-12MM	315015502240MM	9.5T

Production Process

Crushing and Screening: After all raw materials are crushed by the crusher, they are filtered through a sieve with the appropriate mesh size. Powder that meets the requirements passes through the sieve and enters the drying drum; powder that does not meet the requirements continues to be crushed in the crushing chamber.
Drying: The hot air and flue gas generated by the hot air furnace pass through the fire grid. The high-temperature hot air and flue gas are thoroughly mixed with the raw material powder from the crusher in the drying drum, heating and drying the raw materials.
Pressing and Molding: The semi-finished dry materials in the standby room are conveyed directly to the molding machine via a screw conveyor for molding. Based on customer needs, a biomass pelletizer is equipped to produce pellets of varying specifications.
Cooling: Due to the high pressure and temperature of the newly formed products, they are conveyed to a cooling tower via a bucket chain conveyor for cooling. Natural air cooling is primarily used during this process.

Why Choose Us?

We are a manufacturer that offers competitive prices and rigorous quality control.
Our equipment has been sold to numerous countries and has received widespread acclaim.
Our after-sales service is comprehensive and available 24/7 to answer your questions.
If necessary, we will dispatch professional technicians to your country to resolve your issue.

Finished Product Display
