|Name:||Biomass Wood Pellet Machine||ITEM:||Rice Husk Wood Pellet Machine Coffee Wood Pellet Mill|
|Weight (KG):||2000||Die:||Double Layer, Both Can Be Used|
|Driven Type:||Motor ,diesel Engine||Lubrication System::||Use Recycling Lubrication Oil|
|Wood Pellet Size:||6mm,8mm,10mm||Warranty:||1 Year|
|Raw Material:||Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton||Die Material:||Stailness Steel 4Cr13|
|Show Room:||Viet Nam, Indonesia||Key Selling:||Easy To Operate|
|Dust Remove System:||Cyclone And Bag Dust, To Remove The Dust||Capacity:||800-1000kg/h|
Wood Pellets Machine 0.6mm,
1500kgs/ h coffee pellet machine,
Double layer biomass wood pellet machine

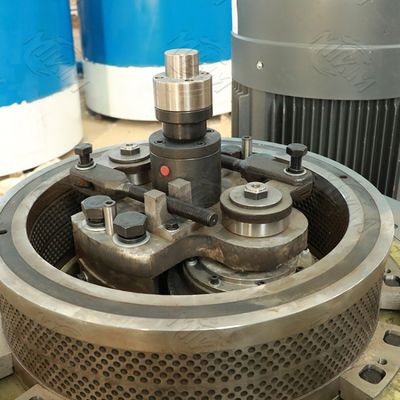

CE certificate wood pellet machine is our main product which has adopted the essence of pellet mill in oversea market. The heart parts "double layer die" has unique structural assembly and "rollers" are made of high wearable alloy materials. These two parts have the following characters: Particular design, reasonable structure, low energy, high efficiency, long life and so on. Through many technical experts' hard work, our company has developed this typical patent product which comes forth firstly in domestic market. The new machine has filled the country blank in vertical feeding for ring die pellet mill and reached the international advanced level.

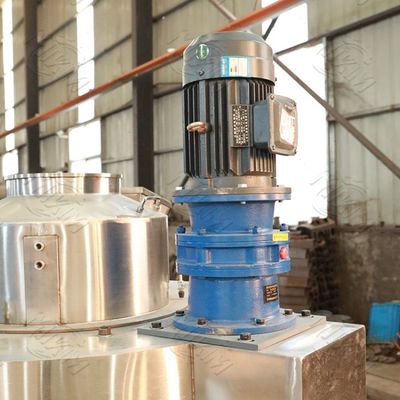

Deceleration host for multistage parallel shaft helical gear machine of decelerate of hard tooth flank, the motor for the vertical structure of V1, connection for instrumentation directly connected.
Multistage parallel shaft helical gear tooth surface reducer, V1 structure vertical motor, instrumentation directly connected.
When working, material from feeding mouth vertically to the roller frame board surface, through the rotation
of the roller frame board, continuous uniform within the mold cavity surface. (the surface for roller connected ring die), under the roller rolling powder material through the die hole
(Uniformly distributed in the inner surface of die)This process is the role of material under high pressure,high temperature, produce a physical change or proper chemical changes(depends on different kind of raw materials ), make the powder material form elongated cylindrical solid body, the cylindrical solid elongation continuously will be cutting by uniformly distributed around the mold cutting knifes, become to " Pellets";the kick out device will collecting the pellets to the outlet place. (Product structure chart) Pellets under the action of gravity automatic fall, this pellet making process is complete.
Parameter of wood pellet machines.
|Weight of the
|Dimension of the
Q: What is a pellet mill/pellet machine?
A: A pellet mill/pellet machine is a machine that takes raw materials and shapes it into pellet form for multiple uses.
Q: What kind of materials can be pelletized?
A: Materials such as wood wastes, saw dust, corn cobs/stover/stalks, straw, switch grass, other grasses, distillers grain, paper, etc. Basically, most Biomass materials that can be ground down to sawdust form can be pelletized.
Q: What are pellets used for?
A: Pellets are used mainly for heating, animal feed, and animal bedding. Many other applications may apply.
Q: What size does my material need to be, to run through the pellet mill?
A: All materials must be 5mm or less.
Q: What size pellets can I make?
A: We have dies sizes from 4mm-12mm, depending on the machine or your raw materials.
Q: Do you ship worldwide?
A: Yes. We have sent machines to Canada, Europe, Asia, Southeast Asia, Africa, South America, Ireland and Australia.
Q: If I purchase a pellet mill, will you show me how to make pellets?
A: Yes, we do. We will instruct you how to use it via video or phone or engineer avaliable abroad if you need.
