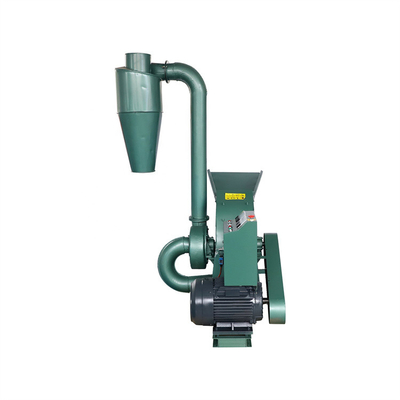

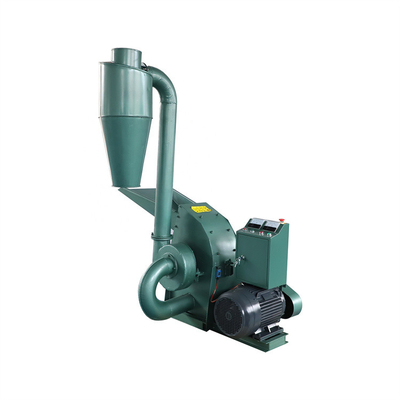

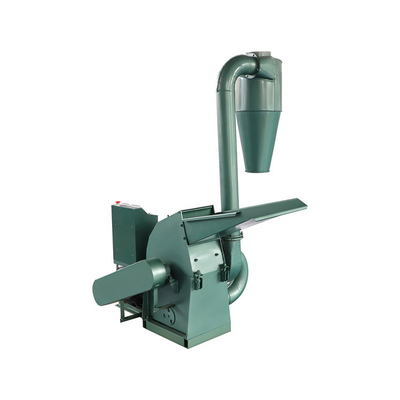

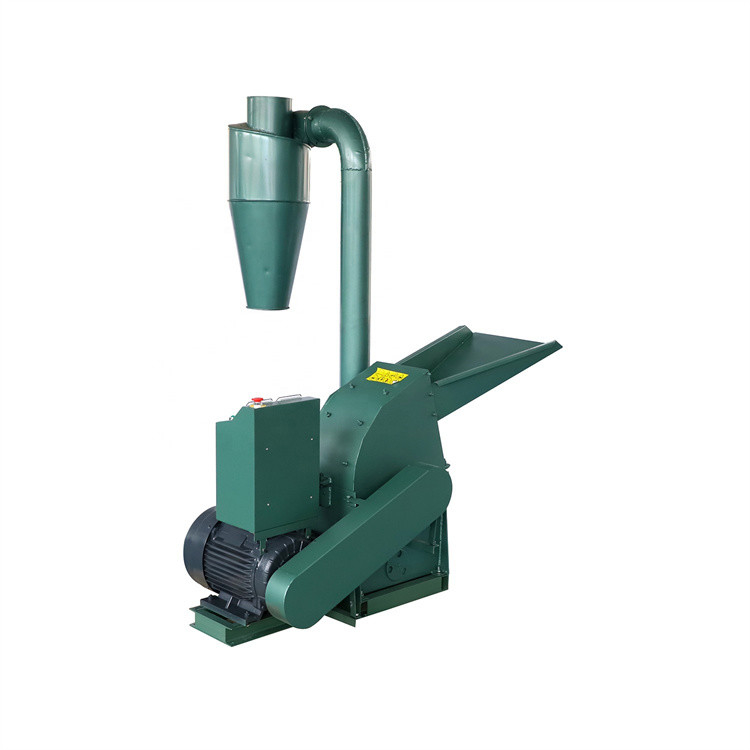

Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven

I'm Online Chat Now

Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven

Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven
Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven
Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven

Large Image :  Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: 158,198
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $500.00 - 910.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Wheat Straw Electric Hammer Mill Machine 1.1t/ H 360*160mm RP Driven

Description
Name: Electric Cob Straw Rice Husk Peanut Shell Wheat Stalk Hammer Mill Machine Coconut Crusher Machine Voltage: 380V
Warranty: 1 Year Condition: New
Type: Hammer Mill Capacity(t/h): 60-1100kg/h
Dimension(L*W*H): 2620*1340*1455 Sieve Screen Size: 360*160mm
High Light:

360*160mm Electric Hammer Mill

,

Hammer Mill Machine 1.1t/ h

,

RP driven straw hammer mill

Electric Cob Straw Rice Husk Peanut Shell Wheat Stalk Hammer Mill Machine Coconut Crusher Machine



Hammer mill is new- style and multipurpose machine, it is used for all kinds of straw, cotton stalk, alfalfa, peanuts shell and foodstuffs etc.



The number of hammers in a mill is variable, depending on the fineness looked after as well as the mill capacity, however, in general the higher the number of hammer, the finer will be the product, but the capacity will also decrease.



The mill can be more or less wide depending on the number of rows of hammers mounted on the shaft. Each row of hammer is separated from the other with a spacer plate.



Raw material of hammer mill machine

Electric Cob Straw Rice Husk Peanut Shell Wheat Stalk Hammer Mill Machine Coconut Crusher Machine



Working principle

The hammer mill is fixed with an engine and a power of RP-driven all kinds of different power.

After the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step by step. Then the crushed materials will be leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge. Finally, the powder material will be discharged down below and the air will be discharged upper.



Technical Parameters of Wood Hammer Mills

Model Power Voltage V/50Hz Sieve Screen Size Sieve Screen Size Capacity
CF158 2.2KW 380V 360*160mm 1.5-10mm 60-120kg/h
CF198 4KW 380V 510*200mm 2-10mm 200-300kg/h
CF198A 7.5HP 380V 510*200mm 2-10mm 200-300kg/h
CF420B 7.5KW 380V 680*280mm 2-10mm 200-500kg/h
CF420C 11KW 380V 680*280mm 2-10mm 200-500kg/h
CF420A 15HP 380V 680*280mm 2-10mm 200-500kg/h
CF420A 22HP 380V 680*280mm 2-10mm 200-500kg/h
CF500 22KW 380V 820*380mm 2-10mm 800-1100kg/h
CF500A 55HP 380V 820*380mm 2-10mm 800-1100kg/h



Main Features of Wood Hammer Mills

With capacity 60-120kg/h, this hammer mill can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing.



How to choose a good quality wood hammer mill?

Choose a reliable wood hammer mill manufacturer. Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.
