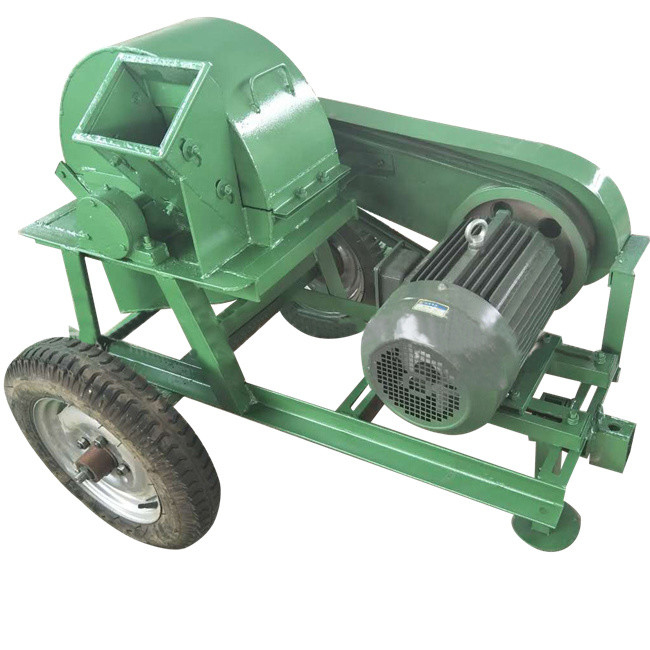

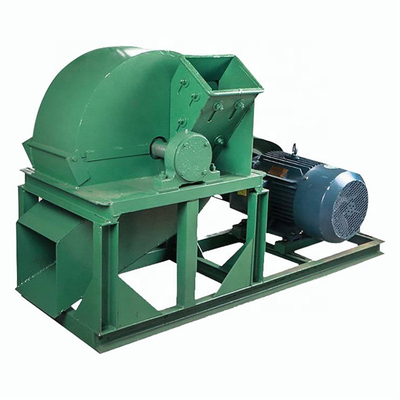

600kg/ H Wood Shaving Machine Energy Saving Plywood Pto Shaving Mill

I'm Online Chat Now

600kg/ H Wood Shaving Machine Energy Saving Plywood Pto Shaving Mill

600kg/ H Wood Shaving Machine Energy Saving Plywood Pto Shaving Mill
600kg/ H Wood Shaving Machine Energy Saving Plywood Pto Shaving Mill 600kg/ H Wood Shaving Machine Energy Saving Plywood Pto Shaving Mill

Large Image :  600kg/ H Wood Shaving Machine Energy Saving Plywood Pto Shaving Mill

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: BS-420,BS-1000,BS-800,BS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $950.00 - 3900.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

600kg/ H Wood Shaving Machine Energy Saving Plywood Pto Shaving Mill

Description
Name: CE Certificate Wood Shaving Machine Large Wood Shavings Machine For Animal Bedding Power(w): 11-55kw
Weight: 500kg Voltage: 380v ,Customized
Dimension(l*w*h): 1200*500*700mm Capacity: 600kg/h
Knives Qty: 6 TYPE: MFJ-700
High Light:

600kg/h wood shaving machine

,

wood shaving machine 0.6t/ h

,

plywood pto shaving mill

CE certificate wood shaving machine Large Wood Shavings Machine for animal bedding

The wood chipper is used for processing the round wood, wood logs, wood logs, big board and branches into wood chips, it is widely used in paper making, flake board, Medium density fiber and other industrial production. Compact structure, reasonable layout and easy installation, operation and maintenance convenience, high capacity. And the chip length can be adjusted freely in the stipulated range.

Product Overview

Wood Shavings Machine

The wood shaving machine produced by our company is a new product that adopts new technology and then improves it according to the needs of wood shavings and the current status of wood. This wood shaving machine can process all kinds of wood (such as sticks, branches, logs, furniture scraps from furniture factories, waste wood branches, etc.) into batches of thin wood shavings with uniform thickness. The wood enters the machine through the feed port and is sliced by the blade inside the machine to punch the shavings. The size and thickness of the shavings are even, which is not much different from the wood shavings produced by the wood factory, it also saves time and labor. The use of wood shavings: it can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.

Featrues

1,It is used for grinding of small wood blocks, chips before pelleting;

2,Multi grinding chamber to increase efficiency by 15%;

3,Multi grinding chamber to prolong service life of screen and beater;

4,Modified rotor to increase stability and avoid overheating from the bearing;

5,Modified screen locking device to make assembling &disassembling easily;

6,Unique structure design of door to absorb shake and reduce noise;

7,Modified design for grinding chamber to reduce airflow resistance and increase efficiency;

8,Depress barycenter of rotor to make more balanced and coarse and fine grinding can

be completed easily.

600kg/ H Wood Shaving Machine Energy Saving Plywood Pto Shaving Mill 0



Type Knives qty Input size(mm) Cutter dia(mm) Blade size(mm) Output(t/h) Spindle speed(r/min) Power(kw) Size(mm)
MFJ-420 4 160*155 424 90*60*8 0.8-1.5 2600 7.5-11 1200*550*750
MFJ-500 4 210*180 510 120*70*8 1.2-2.0 2400 18.5-22 1500*640*820
MFJ-600 4 235*200 600 150*70*8 1.8-2.5 2200 22-30 1600*700*1050
MFJ-700 4-6 230*200 600 180*70*8 2.5-3.5 2000 30-37 1850*830*1050
MFJ-900 8 280*290 750 150*100*10 5.5-6.5 1500 55-75 2000*870*1500
MFJ-1000 8 280*290 750 150*140*10 6-7 1500 75-6 1180*1100*940
MFJ-1200 8 390*385 1000 190*140*12 7-8.5 1200 90-6 1430*1500*1200
MFJ-1500 8 425*500 1160 230*140*14 9-11 1000 110-6 1650*1750*1400
MFJ-1800 12 530*560 1300 150*140*14 11.5-14 950 132-6 2050*1850*1620

Package

1.wood shaving machine will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.

2.Packaging details standard export wooden case or in container.

Our Services

Pre-Sales Service
1. Inquiry and consulting support. Sample testing support.
2. Sample testing support.
3. View our company

-Sale service
1. Instance guidance is available on the phone or email any time.
2. we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.

After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
3. Equipment warranty is 12 months, Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed.



Questions

Q1:Before the equipment leaves the factory, we will provide you with these services:

1. We will conduct a comprehensive test on the machine, and there will be obvious safety warning slogans in the position of the main parts of the machine. Such as filling hydraulic oil, equipment rotation direction, etc.

2. After the machine is loaded into the container, all accessories will be packed into a wooden box, and the installation serial number and the shipping list will be marked.

3. The photos when the machine is loaded will be sent to you. And prepare installation video and safety manual for you while the equipment is working.

Q2:How long is your delivery time?
If there is stock, it usually takes 5-10 days. It takes 20-30 days to customize the equipment according to your requirements.
