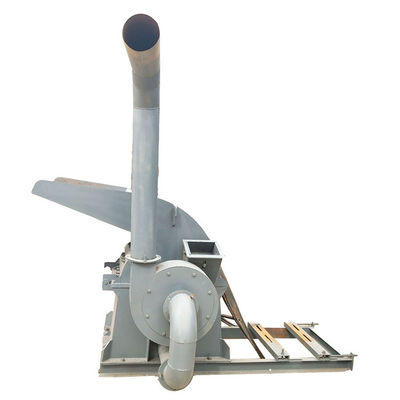

300 To 2000kg/ H Wood Shaving Machine For Animal Bedding CE

I'm Online Chat Now

300 To 2000kg/ H Wood Shaving Machine For Animal Bedding CE

300 To 2000kg/ H Wood Shaving Machine For Animal Bedding CE
300 To 2000kg/ H Wood Shaving Machine For Animal Bedding CE 300 To 2000kg/ H Wood Shaving Machine For Animal Bedding CE

Large Image :  300 To 2000kg/ H Wood Shaving Machine For Animal Bedding CE

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: BS-420,BS-1000,BS-800,BS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $950.00 - 3900.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

300 To 2000kg/ H Wood Shaving Machine For Animal Bedding CE

Description
Name: Low Price Tree Branch Trunk Log Softer Particles Wood Shaving Machine For Pet Bed Weight: 500kg
Power(w): 11-55kw Voltage: 380v ,Customized
Dimension(l*w*h): 1200*500*700mm Capacity: 300-2000kg/h
Speed Of Rotor(r/min): 1850 Output (t/h) Location:: 6.0
High Light:

300KG/ H Wood Shaving Machine

,

2000kg/ h Wood Shaving Machine

,

wood shaving machine for animal bedding ce

low price tree branch trunk log softer particles wood shaving machine for Pet bed

The wood chipper is used for processing the round wood, wood logs, wood logs, big board and branches into wood chips, it is widely used in paper making, flake board, Medium density fiber and other industrial production. Compact structure, reasonable layout and easy installation, operation and maintenance convenience, high capacity. And the chip length can be adjusted freely in the stipulated range.







Product Overview

Wood Shavings Machine

The wood shaving machine produced by our company is a new product that adopts new technology and then improves it according to the needs of wood shavings and the current status of wood. This wood shaving machine can process all kinds of wood (such as sticks, branches, logs, furniture scraps from furniture factories, waste wood branches, etc.) into batches of thin wood shavings with uniform thickness. The wood enters the machine through the feed port and is sliced by the blade inside the machine to punch the shavings. The size and thickness of the shavings are even, which is not much different from the wood shavings produced by the wood factory, it also saves time and labor. The use of wood shavings: it can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.

300 To 2000kg/ H Wood Shaving Machine For Animal Bedding CE 0

Featrues

1,It is used for grinding of small wood blocks, chips before pelleting;

2,Multi grinding chamber to increase efficiency by 15%;

3,Multi grinding chamber to prolong service life of screen and beater;

4,Modified rotor to increase stability and avoid overheating from the bearing;

5,Modified screen locking device to make assembling &disassembling easily;

6,Unique structure design of door to absorb shake and reduce noise;

7,Modified design for grinding chamber to reduce airflow resistance and increase efficiency;

8,Depress barycenter of rotor to make more balanced and coarse and fine grinding can

be completed easily.



Main Technical Parameters

Parameters

Model

Dia Of Rotor

(mm)

Width Of Grinding Chamber(mm) Speed Of Rotor(r/min)

Power

(kw)

Output

(t/h)

SFSP45-MX 800 450 1850 18.5/22 0.6-1.5
SFSP60-MX 800 600 1850 30/37 1.5-3.0
SFSP80-MX 800 800 1850 45/55 3.0-5.0
SFSP100-MX 800 1000 1850 75/90 6.0-8.0

Our Services

Pre-Sales Service
1. Inquiry and consulting support. Sample testing support.
2. Sample testing support.
3. View our company

-Sale service
1. Instance guidance is available on the phone or email any time.
2. we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.

After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
3. Equipment warranty is 12 months, Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed.



Questions

Q1:Before the equipment leaves the factory, we will provide you with these services:

1. We will conduct a comprehensive test on the machine, and there will be obvious safety warning slogans in the position of the main parts of the machine. Such as filling hydraulic oil, equipment rotation direction, etc.

2. After the machine is loaded into the container, all accessories will be packed into a wooden box, and the installation serial number and the shipping list will be marked.

3. The photos when the machine is loaded will be sent to you. And prepare installation video and safety manual for you while the equipment is working.

Q2:How long is your delivery time?
If there is stock, it usually takes 5-10 days. It takes 20-30 days to customize the equipment according to your requirements.
