Product Details:
|
| Name: | Small Animal Pet Dog Floating Fish Food Pellet Pet Feed Production Line | Condition: | New |
|---|---|---|---|
| Dimension(l*w*h): | 25000*1500*2200mm | Heating Source: | Electricity, Gas, Diesel, Steam |
| Power(w): | 70KW | Warranty: | 1 Year |
| Capacity: | 100-3000kg | Weight: | 245 Kg |
| High Light: | 2.5m small poultry feed making machine,200kg/ h pet food production line,240kg/ h Pet Feed Production Line |
||

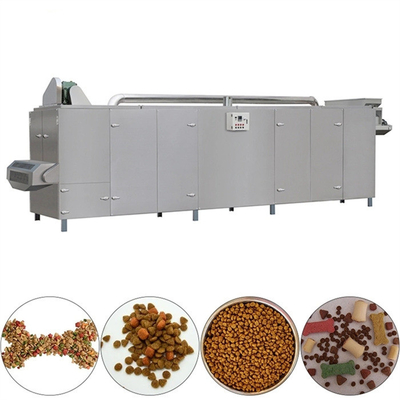

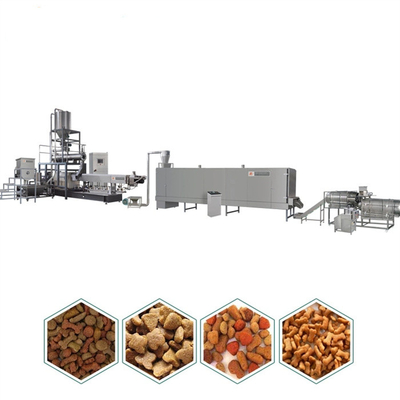

Small Animal Pet Dog Floating Fish Food Pellet Pet Feed Production Line
The Small Animal Pet Dog Floating Fish Food Pellet Pet Feed Production Line is designed for making commercial pellet feeds from corn four, wheat four, rice flour, soya bean powder, fish powder, bone powder and so on, and final feeds with different shapes, unique flavor, rich nutrients and fine texture, are widely used as aquatic and pet feed like fish, shrimps,pig, dog, cat and etc. Full automation control, high production efficiency, it is the best choice for medium and big sized feed mills and breeding farms. This production lines with different capacities can also available to meet customers' specific demands.
Technical Parameter of Pet Feed Production Line:
| Model | Installed power | Consumption | Output | Dimension |
| TSE65-P | 70kw | 40kw/h | 100-150kg/h | 22000*1200*2200mm |
| TSE70-P | 90kw | 50kw/h | 200-240kg/h | 25000*1500*2200mm |
| TSE85-P | 120kw | 100kw/h | 400-500kg/h | 30000*3500*4300mm |
| TSE90-P | 135kw | 100kw/h | 800-1200kg/h | 30000*3500*4300mm |
| TSE95-P | 150kw | 130kg/h | 2000-3000kg/h | 33000*3500*4300mm |
Application:
1. Multi-purpose pet, fish, shrimp puffing feed machine.
2. This model can be used: suspended aquatic feed pellets, sink fish, shrimp and crab feed pellets, pet feed pellets, hanging fishing feed pellets, etc.
3. Suitable for dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, donkeys, foxes, etc.
4. Feed pellet machine, widely used in large, medium and small aquaculture, grain and feed processing plants, livestock farms, poultry farms, individual breeding, Households, small, medium-sized farms, farmers or large, medium and small feed processing plants, and etc.
How is fish feed made by our fish feed machine?
(1) High-quality ingredients (fish meal, cereals, vegetable proteins …) are selected and ground according to the specific nutritional and pellets size requirements of the aquatic animals and various fish request.
(2) The particle quantity of fish feed raw material is a key factor for premium granulates production: therefore the grinding step is an important unit operation. The powder is then mixed with minor ingredients such as vitamins, mineral premixes… prior to the preconditioning out to the fish extruder directly.

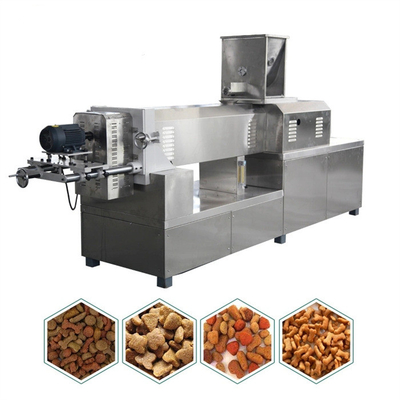

(3) Next, the heart of the process, extrusion cooking is done in three stages in the fish feed machine: preconditioning, extrusion cooking and die texturing/ shaping. Twin-screw extrusion-cooking uses its perfect mixing ability and parameters control such as shear, temperature, residence time to reach the highest physical and nutritional standards. Through direct steam injection, venting device and efficient barrel cooling, adjustable screw speed, screw configuration, shear and temperature conditions are perfectly controlled; this leads to optimized functional and nutritional pellet properties such as the bulk density, calibration, cooking degree, best ratio proteins- lipids, etc

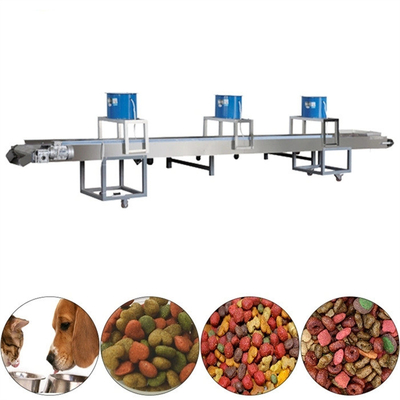

(4) Fish feed Pellets can then be oil coated and possible additives and are cooled down to complete the fish feed processing.
