MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm

I'm Online Chat Now

MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm

MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm
MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm

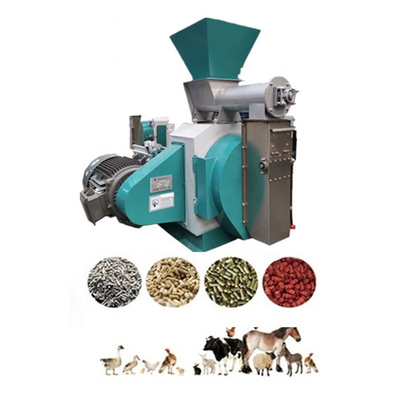

Large Image :  MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: MK15A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $15,000.00/Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm

Description
Name: Poultry Feed Manufacturing Machine Plant Mini Complete Animal Pet Feed Production Line Condition: New
Dimension(l*w*h): 2200*1000*1500mm Heating Source: Electricity, Gas, Diesel, Steam
Power(w): 22KW Warranty: 1 Year
Capacity: 100-1200kg/h Weight: 550 Kg
High Light:

poultry feed manufacturing machine 1.5mm

,

MK 25A poultry feed manufacturing machine

,

22KW chicken feed manufacturing plant

Poultry Feed Manufacturing Machine Plant Mini Complete Animal Pet Feed Production Line



This Poultry Feed Manufacturing Machine Can processing feed food for dog / cat / fish feed pellet / brid / animals/ Poultry / Livestock feed pellet etc. It can make kinds of fish feed, such as food fish, catfish, shrimps, crab, etc. The fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is 0.6-16mm. Promising fodder output evenly and continuously.

MK 25A 22KW Chicken Poultry Feed Manufacturing Machine Plant 1.5mm 0



The Pet Feed Production Line can produce biomass or feedstuff pellet well. It may also be applicable to biological fertilizer, organic manure as well as fertilizer for low-temperature granulation. The raw material: sawdust, rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially low-bonding and unformed materials. The moisture of raw materials is less than the national standard of 13%. If not, the raw material must be dried.



Parameter/Model MK-15A MK-20A MK-25A
Output(kg/h) 100-200 500-700 1000-1200
Power (kw) 3 11 22
Revolving Speed of ring die (r/min) 420 306 306
Inside diameter of ring die(mm) 150 200 250
Pellet diameter(mm) Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m) 0.75*0.45*0.8 1.1*1.15*1.25 1.1*1.15.1.25
Weight(kg) 175 500 625



1) It can suit various raw materials, such as corn flour, fish mill, meat mill and so on.
2) You can get various size of fish feed from 0.8-14mm and various shapes of pet food, such as: rings, triangle, core filling pet food etc.
3)We not only have the basic fish feed formula , but also the professional formula based on different kinds of fish.
4) The machines performance and products quality reach to the most advanced level in the world.
5) High efficiency, low consumption, easy to operate and maintain.

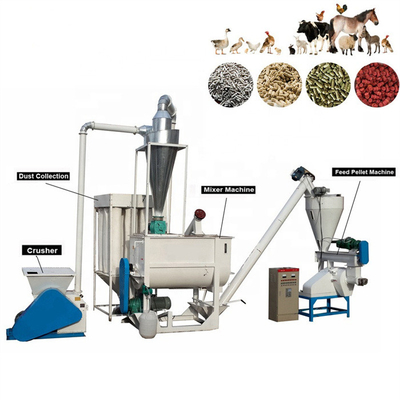

The machine is composed of feeding system, extrusion system, rotary cutting system, heating system, transmission system and control system. Adopt advanced screw extrusion technology, use high temperature and high pressure to mature and expand the material, complete at one time. The main engine adopts frequency conversion speed regulation to ensure the stability of the production process. The products are colorful, diverse in variety, beautiful in appearance, natural and lifelike, delicate in texture and widely used in raw materials.



Working principle-------pet feed Pellet machine

The main parts are made of alloy steel to be quite strong and malleable.

The main shaft and flat die in the effect of friction drive the compression roller rotating itself. The temperature will rise between the compression roller and mould disk, then the high temperature will ripen the starch, make the protein denaturation and solidification. Finally the raw materials will discharged from the mould holes. Then the pellets can be get out of the machine through the throwing disk. We can control the length of the pellets according to adjust the angle of cutting knives.
