Product Details:
|
Voltage: | 220/380V | Condition: | New |
---|---|---|---|
Warranty: | 12 Months | Type: | Press Machine |
Usage: | Oil Press | Automatic Grade: | Automatic |
Certification: | CE,SGS,CE SGS ISO,EMC,CE/SGS | Feature: | Easy Operation,automatic Type,High Quality,Personalized Custom,High Cost-effective |
Modern oil press mill machine cold oil making machine oil press machine

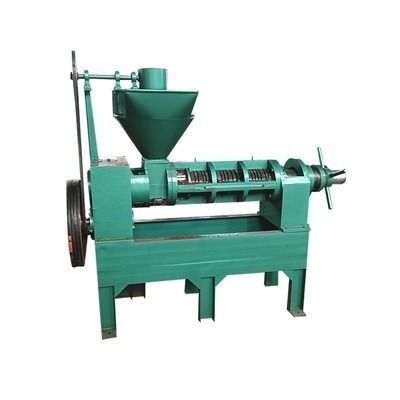

Pictures display
The characteristics of screw oil press are that the horizontal and vertical warping dragon works synchronically, the squeezing chamber is axially split, the chamber shell is fixed with the center point of dovetail groove single bolt press block, the opening and closing of the chamber shell adopts the warping chain structure, and adopts the cold-warm structure for cooling;
The spiral general range is segmented structure, the spiral and bushing between the use of labyrinth type sealing gasket, in the side of the spiral set the anti-leakage spiral.
This machine has the function of novel design, reasonable structure and automatic manual cake calibration, which can clean and replace easily worn parts without stopping the machine.
Model | 6YL-60 | 6YL-70 | 6YL-80 | 6YL-100 | 6YL-125 |
Power | 2.2 kw | 3 kw | 5.5 kw | 7.5 kw | 15 kw |
Capacity | 50-60kg/h | 70-80kg/h | 80-130kg/h | 140-280kg/h | 300-400 kg/h |
Weight | 220kg | 380kg | 780kg | 1100kg | 1280kg |
Dimension(mm) | 1200*780*1100 | 1400*860*1260 | 1700*1200*1500 | 1800*1300*1680 | 2100*1430*1700 |

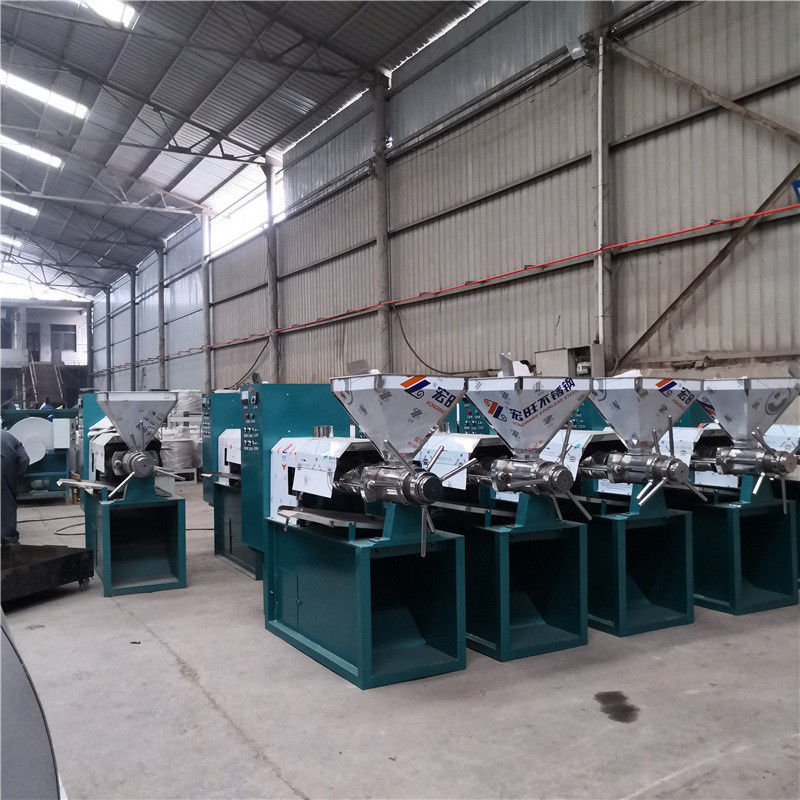

Production line
The raw materials are stir-fried in the wok, and then transferred through the feeding conveying into the screw oil press to extract the oil, and the waste into oil cake.
Installation method of screw oil press:
Before installation, the newly purchased screw oil press should be thoroughly cleaned. Remove the main shaft, remove the upper press cage, and polish the outer surface, inner surface and spiral feeder with emery cloth. Grease should be applied to all lubricating parts and the type and brand of lubricating oil added to the gear box should meet the requirements of the manual. After the round row is polished and clean, it must be arranged in the original position and cannot be misplaced, because the arrangement position and order of the round row have a great influence on the performance of oil extraction. After the circular row is installed, press the circular disc with a pressing nut, and the degree of pressing is appropriate for the disc to creep when pressing the oil. After the above treatment, the oil mill equipment can be fixed on the foundation with anchor bolts. During installation, the belt pulley of the motor should be aligned with the belt pulley of the oil extractor, with proper position, correct rotation direction and proper tightness of the belt.
We determine the packaging method based on the products purchased by the customer. In general, container shipping is used. The usual mode of transport is shipping, depending on the actual situation.
