Home use oil pressers mini screw oil pressing machine oil extractor

I'm Online Chat Now

Home use oil pressers mini screw oil pressing machine oil extractor

Home use oil pressers mini screw oil pressing machine oil extractor
Home use oil pressers mini screw oil pressing machine oil extractor

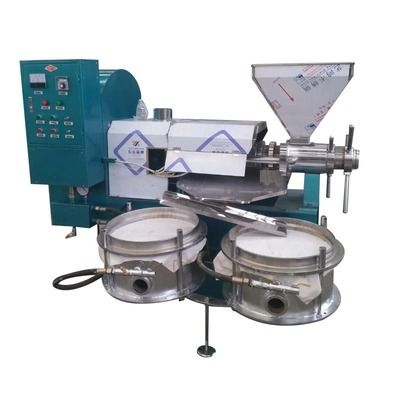

Large Image :  Home use oil pressers mini screw oil pressing machine oil extractor

Product Details:
Place of Origin: CHINA
Brand Name: MIKIM
Certification: CE,IOS
Model Number: 6YL-60,6YL-70,6YL-80,6YL-100,6YL-125,6YL-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $1600.00 - 5000.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Home use oil pressers mini screw oil pressing machine oil extractor

Description
Voltage: 220/380V Condition: New
Warranty: 12 Months Type: Press Machine
Usage: Oil Press Automatic Grade: Automatic
Certification: CE,SGS,CE SGS ISO,EMC,CE/SGS Feature: Easy Operation,automatic Type,High Quality,Personalized Custom,High Cost-effective

Home use oil pressers mini screw oil pressing machine oil extractor



hot screw oil press with multifunction is a new research improvement product .It can use to press rapeseed, peanuts, soybean, sesame, sunflower seed and other plant oil materials, This kind of machine adopts micro-electrical control, filter system, muti-stage press and can hot press. The product oil is the clean oil after filtering, it can directly to use. The machine is the most optical equipment for individual processing.



Home use oil pressers mini screw oil pressing machine oil extractor 0

Model 6YL-60 6YL-70 6YL-80 6YL-100 6YL-125
Power 2.2 kw 3 kw 5.5 kw 7.5 kw 15 kw
Capacity 50-60kg/h 70-80kg/h 80-130kg/h 140-280kg/h 300-400 kg/h
Weight 220kg 380kg 780kg 1100kg 1280kg
Dimension(mm) 1200*780*1100 1400*860*1260 1700*1200*1500 1800*1300*1680 2100*1430*1700



features:

6YL series spiral oil press is mainly composed of 7 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism, transmission system, electric control part and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.



Home use oil pressers mini screw oil pressing machine oil extractor 1

Home use oil pressers mini screw oil pressing machine oil extractor 2

Home use oil pressers mini screw oil pressing machine oil extractor 3

Operating principle:

1. When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.

2. Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.

3. On the other hand, root diameter of the pressing screw carries larger from one end to the other.

4. Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.

5. meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.

6. Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.





Packaging & Shipping

PACKAGE
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.

DELIVERY TIME

For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order
