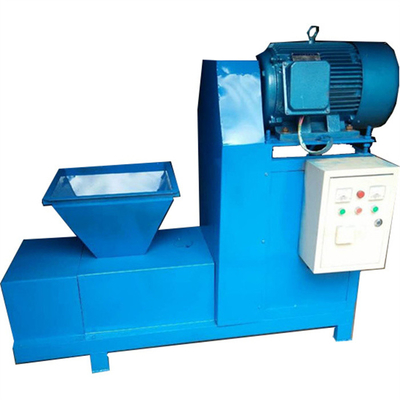

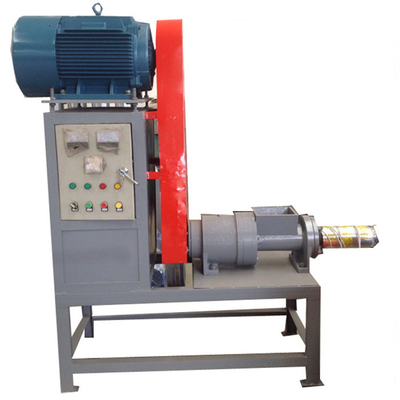

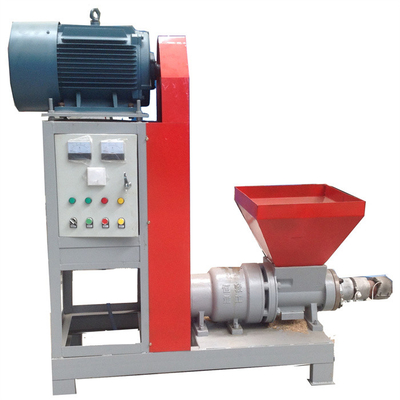

Wood Waste Charcoal Briquette Machine 50hz Fully Automatic

I'm Online Chat Now

Wood Waste Charcoal Briquette Machine 50hz Fully Automatic

Wood Waste Charcoal Briquette Machine 50hz Fully Automatic
Wood Waste Charcoal Briquette Machine 50hz Fully Automatic Wood Waste Charcoal Briquette Machine 50hz Fully Automatic Wood Waste Charcoal Briquette Machine 50hz Fully Automatic Wood Waste Charcoal Briquette Machine 50hz Fully Automatic

Large Image :  Wood Waste Charcoal Briquette Machine 50hz Fully Automatic

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: MK-50,MK-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000.00 - 2400.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Wood Waste Charcoal Briquette Machine 50hz Fully Automatic

Description
Name: Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine Type: Screw Briquetting Charcoal Briquette Machine
Warranty: 12 Months Voltage: 380V 50hz
Dimension(l*w*h): 1800*600*1600mm Weight: 600 KG
Diameter Of Briquettes: 50~80mm Customized Spare Parts: Screw Propreller,mold Cyclinder
High Light:

Fully Automatic Charcoal Briquette Machine

,

Wood Waste Charcoal Briquette Machine

,

50hz coal Briquette Machine

Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine



Charcoal briquette making machine is a main equipment which is made of wood, rice hull, peanut shell, plant straw and other carbon containing wood materials (without adding any additives), and is made into rod solid fuel under high pressure and high temperature.

Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Briquette Machine

Main Features of charcoal briquette making machine
1. Cheap price charcoal briquette making machine has the characteristics of reasonable design, reliable manufacturing quality, simple structure, convenient operation, small volume, less area, less work and electricity saving.
2. The designed automatic control electric heating device can adjust the dry humidity of the material randomly, ensure the stability of the material forming and improve the working efficiency.
3. The main parts of this product are specially treated with wear-resistant material, so it can be continuously pressed and durable.

Working principle of Cheap price charcoal briquette making machine



Model
IV
V
80
ZBJ-500
Power
15kw
18.5kw
22kw
22kw
Capacity
140-200kg/h
220-280kg/h
320-380kg/h
400-500kg/h
Dimension
1.65*0.6*1.6m
1.65*0.6*1.6m
1.9*0.6*1.6m
1.9*0.6*1.6m
Weight
600kg
600kg
700kg
700kg



Charcoal briquette making machine is using sawdust, straw (corn straw, soybean straw, sorghum straw, cotton stalk, rape straw, peanut, sunflower stalk), rice husk, grasses, shrubs, bamboo head, butts, such as bagasse as raw material, high temperature and high pressure area is formed after wood crusher in the spiral propulsion device and the heating ring under the action of loose material into the hollow rod. The product has high density, small size, good flammability, and can replace firewood and coal. The general products outside diameter 50-60mm, diameter 15-20mm, hollow four or six angle form. It can also be made into spherical, granular and honeycomb coal.



If your raw material is biomass wood sawdust, there are several steps to make briquettes:
1. The frist step is crush biomass wood sawdust become small size, less than 3mm.
2. The second step is dry raw biomass wood sawdust, in order to reduce the moisture less than 12%.
3. The third step is use press machine produce briquette.
4. The fourth step is carbonize briquette become charcoal.



Pre-Sales:
Act as a good adviser and assistant of clients,enable them to get rich and competitive from the returns of their investment.
1. Select suitable equipment model.
2. Design and manufacture products according to clients special requirements.
3. Train technical personnel for clients.
4. Professional suggestion for customer.



Service During The Sales:
Respect clients,devote ourselves to improving the total value of clients.
1. Take photos(including raw material,semi-products,final products and loading products).
2. Pre-check and accept products ahead of delivery.
3. Prepare all clearance documents,so that the customer clearance smoothly.



After-sales service:
Provide considerate service to minimize clients worries.
1. Provide civil engineering drawings of the equipment.
2. Free training(including installation, maintaince) to every customer.
3. Install and debug the equipment,ensure the dryer running smoothly.
4. Examine the equipment regularly.
