The fully automated poultry feed production line integrates raw material handling, processing, and quality control modules through intelligent technology, enabling unmanned operation throughout the entire feed production process.
Raw Material Handling System
Intelligent Batching Machine: Utilizes high-precision sensors to automatically weigh and proportion raw materials such as corn and soybean meal, supporting multi-bin linkage and recipe switching.
High-Efficiency Pulverizer: The water-drop pulverizer controls raw material particle size within an optimal range to meet the digestive needs of different poultry species.
Double-Shaft Mixer: Provides fast mixing speed and high mixing uniformity.
Ring Die Pelletizer: High-temperature and high-pressure extrusion converts powdered feed into pellets with adjustable hardness to suit different poultry species, such as chickens and ducks.
Enclosed Conveying Pipeline: Spiral or pneumatic conveying systems reduce dust emission and are equipped with pulse dust removal equipment.
PLC integration with the Internet of Things system supports remote monitoring of production parameters (such as temperature and pressure), automatic fault diagnosis, and recipe traceability.
<table border="1" cellpadding="0" cellspacing="0" class="table" open="" sans",="" poppins,="" oswald,="" "noto="" montserrat,="" arial,="" sans-serif;="" font-size:="" 16px;="" width:="" 650px;="" overflow-wrap:="" break-word;"="" style="font-family: Roboto; font-size: 12px; margin: 0px; padding: 0px; -webkit-tap-highlight-color: transparent; border-collapse: collapse; color: rgb(17, 17, 17); overflow-wrap: break-word;">
| Capacity |
15-20t/h |
| Range of application |
large commerical feed factory,could make chicken,sheep,cow,shrimp feed |
| Workers requirments |
4-5 people |
| Shipment requirments |
6*40ft container |
| Product advantages |
Fully automatic intelligent batching, computer control system with stable output, efficient and continuous operation, labor saving, direct packaging, particle size can be selected from 1-12mm. |
| size for whole line |
According to land size and layout |
Hammer Mill
Feed grinder is a special equipment used to process crop straw, grain, soybean meal and other raw materials into powdered feed. It belongs to the category of crushing machinery and is mainly used in feed processing, biomass energy and straw comprehensive utilization.
Screw Conveyor
Used for conveying grain and powdery raw materials, sealed structure, reliable, clean, hygienic, no residue.
Stainless Steel Mixer
Stainless steel mixer is suitable for mixing powdered raw materials, with high efficiency and fast mixing speed, suitable for small-scale feed.
Feed Pellet Machine
Feed pellet machines are widely used in large, medium and small livestock and poultry farming. They can produce feed pellets of various specifications with simple structure, wide adaptability, small footprint and low noise.

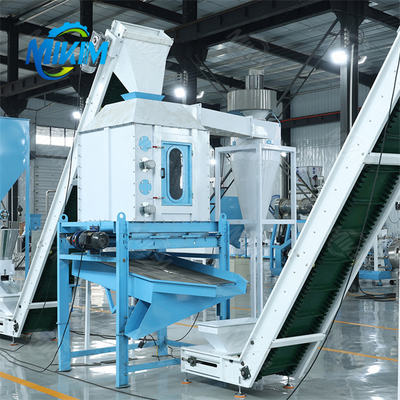

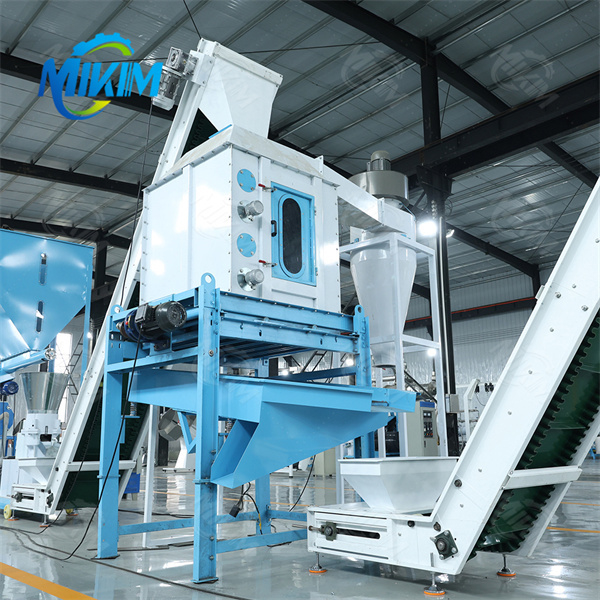

cooler
Feed cooler is a cooling equipment that adopts the countercurrent cooling principle. The particles are cooled fully and evenly. It runs smoothly and discharges smoothly.
packer
The device mainly consists of three parts: automatic weighing and packaging machine, conveying device and sewing device. It is mainly suitable for quantitative packaging of granular and granular powder mixed materials.
Finished Product Display
FAQ
Is MIKIM Machinery a manufacturer?
Yes, we are a feed mill equipment manufacturer. We are a factory, not a middleman or a trading company. All equipment prices are ex-factory prices.
Does MIKIM Machinery provide installation services?
Yes, we do provide installation services. We provide full-process services including design, manufacturing, delivery, installation, commissioning, training, etc. Regarding installation, customers can choose to install it themselves or choose us to install it on site. In either case, we provide full installation guidance and technical support!
Does the equipment produced by MIKIM Machinery have CE certification?
Yes, the company has passed many certifications such as CE and ISO.
For more information on process design, equipment layout, plant construction plan, single machine equipment quotation, turnkey quotation, etc., please feel free to contact us.

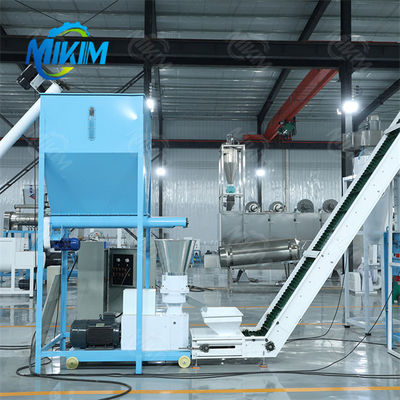

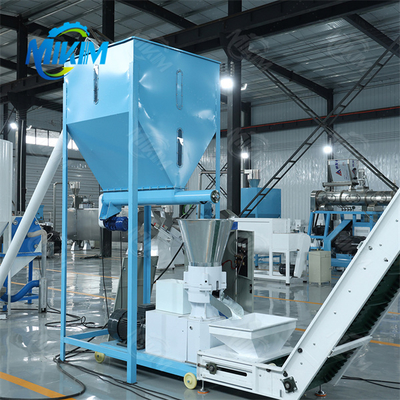

Equipment Photos
