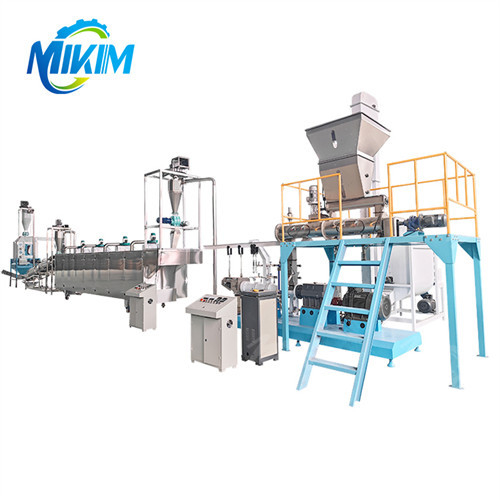

500-2000kg/h Aquatic Fish Feed Production Line

500-2000KG/H fish feed extruder machine floating fish feed pellet machine for Aquaculture Industry

MIKIM pet food processing line series use extruding and inflating technology is that can supply amazing processing measure, combine with market demand, adopts particular process technical and equipment, products with the fashion shape, special taste, scientific nutrition, easy to absorb and popular with the market inquiry.

Flow chart: Flow Chart: 1.Mixer→ 2.Screw Conveyor→ 3.Twin Screw Extruder→ 4.Air Conveyor→ 5.Multilayer Dryer→ 6.Hoister→ 7.Double Roller→ 8. Oil Sprayer

The capacity ranges from 500kg/h to 2000kg/h, and we can make different designs according to your request.

• Capacity: 500-2000kg/h
• Power: 94-217kw
• Pellet size: 1-12mm
• Range of application: Good for medium/big commercial Aquatic/pets feed factory
• Product advantages: Long working life, makes high protein feed, stable output, high efficiency, continuous work, labor saving, can pack directly from 1-12mm, pellet size could be chosen
• Size: 30*6*7m
• Workers requirements: 2-3 people
• Shipment requirements: 2*40ft container

It is used for the production of catfish feed, Tilapia fish feed, tortoise feed, frog feed, shrimp feed, cat food, dog food, and so on. Just changing the mould can make many different shapes. Output pellet can be floating on the water within 12 hours without sinking or dispersing, keeping the water clear and not polluted.

• Pulse dust removal: A new type of high-efficiency bag dust removal device that screens dust-containing gas through fiber filter material with high dust removal efficiency.
• Grinder: Crushes feed raw materials to increase surface area and improve digestibility.
• Bucket Elevator: Designed with reduced material backflow and high-strength, well-sealed cylinder body.
• Mixing machine: Mixes powder and granular raw materials with stable effect and high efficiency.
• Cache Silo: Temporarily stores materials to balance supply and demand during production.
• Fish feed machine: Key equipment for processing extruded feed through screw extrusion principle.
• Multi Layer Dryer: Removes moisture to ensure material is dry, easy to pack, and doesn't deteriorate.
• Wind conveyor: Uses air to transport materials in a closed pipeline.
• Drum Seasoning Machine: For spraying and seasoning feed to enhance flavor.
• Counterflow coolers: Cools feed in layers with large air intake area for significant cooling effect.
• Silos: Stores bulk feed while protecting from moisture, mildew and pests.

• We provide design, production, transportation, installation, training and after-sales service
• We build various fully automatic feed production lines
• Customize turnkey production lines according to your needs
• Experienced technical experts provide first-class technology and equipment
• Free feed formula and aquaculture solutions
• Professional and systematic training to maximize project needs

For more information on process design, equipment layout, plant construction plan, single machine equipment quotation, turnkey quotation, etc., please feel free to contact us.
