PLC Automatic Chicken Mutton Cutting Machine 750kg/ H Frozen Meat Slicing Machine

I'm Online Chat Now

PLC Automatic Chicken Mutton Cutting Machine 750kg/ H Frozen Meat Slicing Machine

PLC Automatic Chicken Mutton Cutting Machine 750kg/ H Frozen Meat Slicing Machine
PLC Automatic Chicken Mutton Cutting Machine 750kg/ H Frozen Meat Slicing Machine PLC Automatic Chicken Mutton Cutting Machine 750kg/ H Frozen Meat Slicing Machine PLC Automatic Chicken Mutton Cutting Machine 750kg/ H Frozen Meat Slicing Machine PLC Automatic Chicken Mutton Cutting Machine 750kg/ H Frozen Meat Slicing Machine

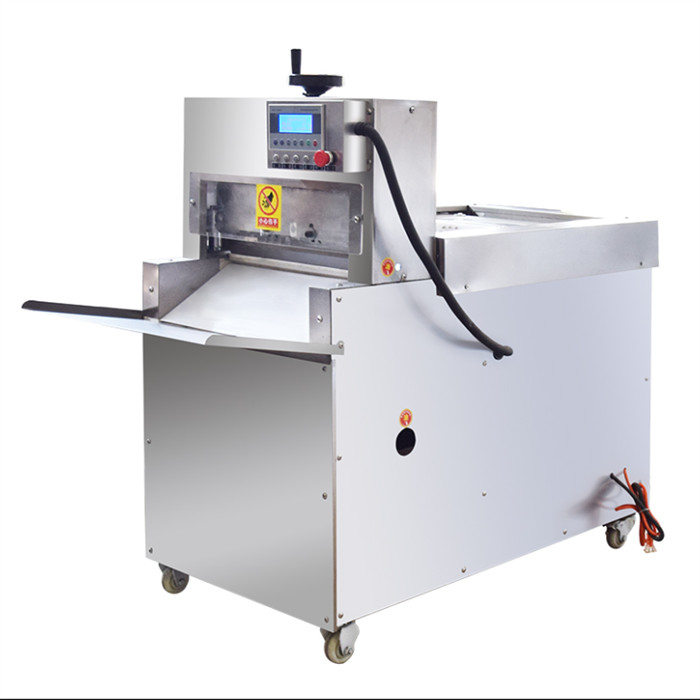

Large Image :  PLC Automatic Chicken Mutton Cutting Machine 750kg/ H Frozen Meat Slicing Machine

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: HC-MS200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $1450.00 / Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

PLC Automatic Chicken Mutton Cutting Machine 750kg/ H Frozen Meat Slicing Machine

Description
Name: Automatic Frozen Meat Slicing Machine Meat Slicer Sausage Bacon Beef Mutton Meat Processing Machine Condition: New
Voltage: 220v/380V Weight: 200 KG
Dimension(l*w*h): 1100*400*1300mm Warranty: 1 Year
Power(w): 3kw Capacity: 750kg/h
High Light:

PLC chicken and mutton cutting machine

,

Automatic chicken mutton cutting machine

,

750kg/ h Frozen Meat Slicing Machine

Automatic Frozen Meat Slicing Machine Meat Slicer Sausage Bacon Beef Mutton Meat Processing Machine



This kind of full automatic mutton beef slicer machine has different models, 4 rolls, 2 rolls, are available for sale, double layer overlay cutting, touch screen operation, PLC control, servo motor drive, double screw horizontally Material, cutting height up to 20 cm, fully automatic operation.



Automatic Frozen Meat Slicing Machine Meat Slicer sausage bacon beef Mutton meat processing Machine



It is suitable for large, medium and small meat processing enterprises. This product adopts electric pusher, electric presser, electric adjustment thickness, stepping pusher, meat processing, cutter automatically stops, pusher plate automatically retreats, automatic stop, cutter open conveyor automatic synchronous operation, protective door open. The whole machine is automatically powered off, the degree of automation is high, the meat slice is cut, the thickness is adjusted, the meat roll is delivered, and the meat is automatically stopped. It can be completed with one button, saving labor and time.



Parameters of fresh /frozen meat cutting machine

Model HC-MS200 HC-MS400 HC-MS800
Voltage 220v/380v 220v/380v 220v/380v
Power 2.5kw 3.0kw 3.5kw
Rolls 2 4 8
Capacity 50-200kg/H 150-300kg/H 50-600kg/H
Slice speed 50-60/m 50-60/m 50-60/m
Slice thickness 0.3-5mm 0.3-5mm 0.3-5mm
Width (custom-made) 270mm 510mm 900mm
Height(custom-made) 200mm 200mm 200mm
Length(custom-made) 600mm 600mm 600mm
Dimension 1100*400*1300mm 1100*660*1300mm 1200*1000*1450mm
Weight 200kg 350kg 600kg



Features of meat slicer

1. products without thawing can be cut on the machine, reducing your waiting time.

2. high degree of automation, simple operation, all functions are used point switch, easy and fast

3. safe operation, the product cut out of the meat through the food conveyor belt with automatic output, the operator without hand at the front of the cutter to grab the meat. Cutter front also has a safety door, when the protective door is opened, the cutter automatically power off to stop running, do not close the security door, the cutter can not run, double safety protection, to ensure the safety of the operator.

4. Slice fast, high production efficiency, 62 times per minute knife speed.

5. cut out the meat roll thickness uniform, neatly arranged, the size has been.

6. small size, light weight, easy to move. Slicer and conveyor belt for the split, small footprint, conveyor belt length can be adjusted, easy maintenance



Maintenance of frozen meat cutting machine

1. before use, must be tied to the ground line to prevent leakage.

2. the use of the machine, the first start the motor, and then feeding.

3. cut the meat, meat, the meat must take the net bone, to prevent damage to the blade.
