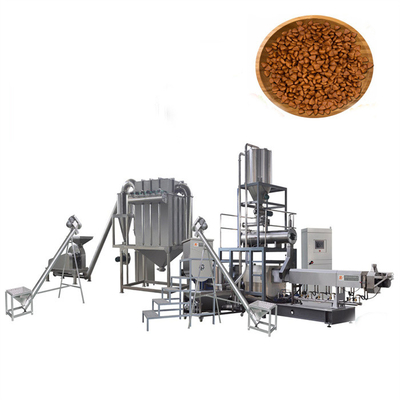

Full Automatic 150KW Cat Pet Feed Production Line 25*2.5*3.5m Stainless Steel

I'm Online Chat Now

Full Automatic 150KW Cat Pet Feed Production Line 25*2.5*3.5m Stainless Steel

Full Automatic 150KW Cat Pet Feed Production Line 25*2.5*3.5m Stainless Steel
Full Automatic 150KW Cat Pet Feed Production Line 25*2.5*3.5m Stainless Steel Full Automatic 150KW Cat Pet Feed Production Line 25*2.5*3.5m Stainless Steel Full Automatic 150KW Cat Pet Feed Production Line 25*2.5*3.5m Stainless Steel Full Automatic 150KW Cat Pet Feed Production Line 25*2.5*3.5m Stainless Steel

Large Image :  Full Automatic 150KW Cat Pet Feed Production Line 25*2.5*3.5m Stainless Steel

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: 65,70,75
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $15,000.00/Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Full Automatic 150KW Cat Pet Feed Production Line 25*2.5*3.5m Stainless Steel

Description
Name: Full Automatic Cat Food Manufacturing Machine Pet Feed Production Line Condition: New
Dimension(l*w*h): 25*2.5*3.5m Heating Source: Electricity, Gas, Diesel, Steam
Power(w): 150KW Warranty: 1 Year
Capacity: 100-1200kg/h Weight: 380 Kg
High Light:

150KW Pet Feed Production Line

,

pet food production line 25*2.5*3.5m

,

cat food making machine L25M

Full Automatic Cat Food Manufacturing Machine Pet Feed Production Line



The pet dog cat food machine can manufacturer the food with novel various shape, particular tastes and scientific nutrition for lovely pets. Our machines enjoy excellent sales by its high outputs and simple and easily be operated which can help you save manufacture space and manufacture cast.


Full Automatic Cat Food Manufacturing Machine Pet Feed Production Line
1. Pet food is plant or animal material intended for consumption by dogs, cat or other canines. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.
2. Pet Food Processing Line adopts corn flour, bone meal, fish meal as raw materials.
3. Different shapes can be made by adjusting the dies from extruder.



Voltage of pet food processing machine

Three phases of pet food processing machine: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to customers' local voltage in different countries.



Technical Parameter of pet food processing machine

Model Installed capacity Power consumption Output Length
CW65-I 58KW 38KW 100~120KG/H 16*1.2*2.2m
CW70-II 70KW 45KW 150~200KG/H 18*1.2*2.2m
CW85-II 90KW 60KW 450~500KG/H 20*1.5*3.2m
CW90-II 180KW 150KW 800~1200KG/H 25*2.5*3.5m

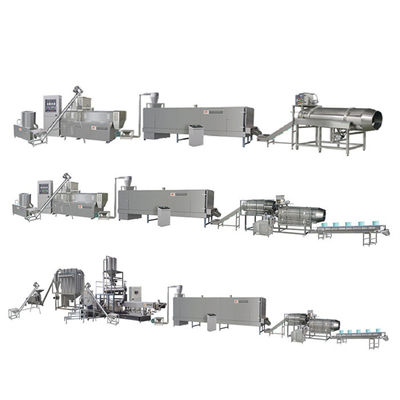

Flow chart diagram:

Grinding→mixing→extruding→drying→flavoring→cooling→packaging

Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.



Raw material:

Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.



Final product:

fish feed pellet /color customized/floating and sinking type/length customized
diameter from 0.2mm to 20mm



Our Service

1) Provide factory layout according to your factory size in advance;
2) Provide the basic formula;
3) Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4) Technician will work with your workers together and teach your workers how to install machines,
how to operate machines, how to maintain machines during daily working;
5) Our engineers will teach your workers how to clean the extruder, how to change the screw,
how to change barrel etc, and provide technology support with you forever;
6) Provide English Version of Installation / Operation / Service / Maintenance Manual.
