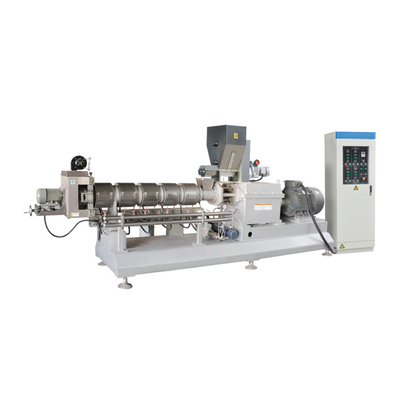

120kg/ H 22KW Dry Pet Food Production Line Dog Treat Extruder 3mm

I'm Online Chat Now

120kg/ H 22KW Dry Pet Food Production Line Dog Treat Extruder 3mm

120kg/ H 22KW Dry Pet Food Production Line Dog Treat Extruder 3mm
120kg/ H 22KW Dry Pet Food Production Line Dog Treat Extruder 3mm 120kg/ H 22KW Dry Pet Food Production Line Dog Treat Extruder 3mm 120kg/ H 22KW Dry Pet Food Production Line Dog Treat Extruder 3mm 120kg/ H 22KW Dry Pet Food Production Line Dog Treat Extruder 3mm

Large Image :  120kg/ H 22KW Dry Pet Food Production Line Dog Treat Extruder 3mm

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: 65,70,85
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $15,000.00/Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

120kg/ H 22KW Dry Pet Food Production Line Dog Treat Extruder 3mm

Description
Name: Feed Pellet Making Machine Food Making Machine Dog Pet Feed Production Line Condition: New
Dimension(l*w*h): 12000x4000x2200mm Heating Source: Electricity, Gas, Diesel, Steam
Power(w): 22KW Warranty: 1 Year
Capacity: 120-1200kg/h Weight: 380 Kg
High Light:

22KW dry pet food production line

,

dry pet food production line 120kg/ h

,

dog treat extruder 3mm

Feed Pellet Making Machine Food Making Machine Dog Pet Feed Production Line



Small and medium-sized pet processing machine can be widely used in the production of dog, cat, fish, shrimp, fox, bird and various pet feeds. It is an ideal choice for manufacturers with rigid requirements.



The production line has some advantages include small investment, high output, small floor area and so on. The expansion technology uses internationally advanced twin screw extrusion technology.



Feed Pellet Making Machine Food Making Machine Dog Pet Feed Production Line

The technical specification of production line

Model 65twin screw extruder line(dry type) 70 twin screw extruder line(dry type) 85 twin screw extruder line 75 twin screw extruder line 95twin screw extruder line
Main machine power

22kw

30kw 37/45 55/75 90/110
Drying type gas/electric gas/electric gas/electric/steam gas/electric/steam gas/electric/steam
Production capacity 120-150kg/h 150-180kg/h 350-500kg/h 450-600kg/h 1000-1200kg/h
Appearance size 12000x4000x2200mm 13500x4000x2200mm 16500x4000x3200mm 18500x4000x3200mm 21000x4000x3200mm



The flow chart of pet food production line :

Raw material preparation → mixing → conveying → extrusion → conveying → drying → oil spraying → flavoring → cooling → screening → packaging



The composition of pet food production line

1. Mixer:add a certain proportion of water to the raw materials such as corn flour, rice flour, soybean flour, meat flour, cereal flour, additives, etc., and mix well.

2. Feeding machine: The motor is used for screw conveying, and the mixed raw materials are conveyed to the feeding hopper of the extruder to ensure convenient and fast feeding.

3. Twin-screw extruder: Under the conditions of high temperature and high pressure environment and screw extrusion,it could produce different feed by adjusting the production process. The specific particle size and shape can be changed.

4. Conveyor: transporting the feed to the oven,

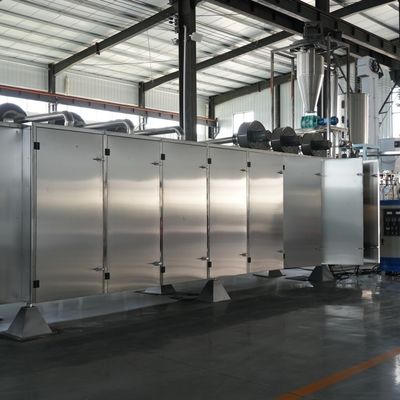

5. Multi-layer ovens: most ovens are electric ovens. The temperature is adjusted by the control cabinet between 0-200 degrees. The inside is a stainless steel double-layer mesh bag to reduce the moisture of feed particles, promote the maturation rate and increase the shelf life.

6. Flavoring line: the oil sprayer sprays oil, phagostimulants and so on. The flavoring tube includes octagonal tube, cylinder, lifting single drum, double drum flavoring line.Spraying the grease on the feed surface according to the output and product nature configuration.Meanwhile,it spray minced meat and spices evenly.

7. Cooling and conveying: reduce the temperature of frying and feed, promote the solidification of fat, reduce the temperature of particles, and facilitate packaging.



Advantages of pet feed production line:

1. The Fish feed manufacturing machinery is stainless steel.
2. It is fully continuous and automatic.
3. The final shapes and sizes can be various by changing the moulds.
4. Free formula and moulds is provided.
5. Packing machine is supplied to work with the fish feed production line on your requirements.
