|Name:||Dog Extrusion Turtle Floating Fish Feed Pellet Extruder Pet Feed Production Line||Condition:||New|
|Dimension(l*w*h):||2200*1000*1500mm||Heating Source:||Electricity, Gas, Diesel, Steam|
|Type:||Pet Feed Production Line||After-sales Service Provided:||Online Support|
fish feed pellet extruder 1ton/ h,
DGP60 Pet Feed Production Line,
DGP40 Pet Feed Production Line

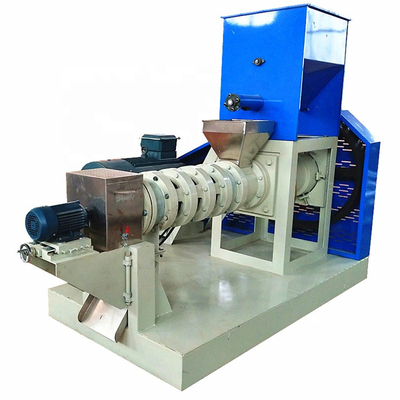

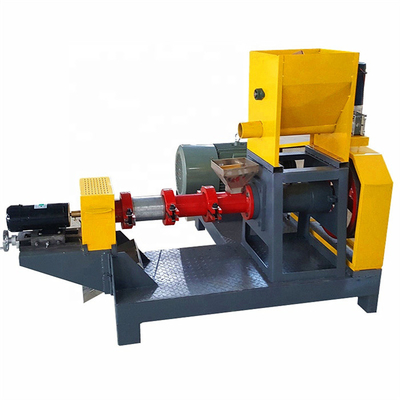

Dog Extrusion Turtle Floating Fish Feed Pellet Extruder Pet Feed Production Line
The pet food extruder, also named fish food extruder, which is used for processing for making the food of pets (like dogs, cats, rabbits, fishes, tortoise, birds, pigs, foxes, etc.) and the feed for other aquatic products, birds, domestic animals, etc. It has a wide range of applications and it is high and new technical program which can catch the developing pet food market and also animal husbandry.
The fish food extruder mainly use amino acids, grains, fish meal, fat, whey powder, soybean meal, straw, green fodder, meat and bone meal, miscellaneous meal as the main raw materialss to get final puffed pet food through mixing, puffing, roasting, seasoning processing.

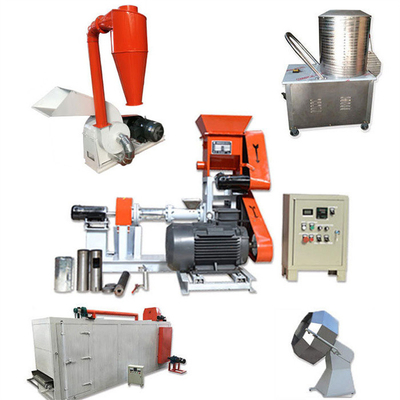

The whole production line including Crusher-Mixer-Fish feed extruder machine-Dryer-Cooler-Oil spray machine-Packing machine.
This line is widely used for process all kinds of grains into high-grade aquatic floating or sinking feed pellet for fish,catfish,shrimps,crab. It also can make pet feed for dog,cat etc with different shape and chicken feed.
|,2||Dusting collection and storage bin||Capacity of storage bin 0.5-1.0m³||1||0.75*2|
|3||ixer||25kg/batch, need 10-15 minutes per batch||1||4|
|4||Extruder (send you another one more set spare parts)||100-150||1||Main Power: 15
Cutting Power: 0.4
Feeding Power: 0.4
|5||Pneumatic conveying equipment||200||1||Fan power: 2.2kw
Discharge Power: 0.75kw
|6||Mesh belt drye||150-200||1||Heating power: 15-18kw
Mesh belt power: 1.5kw
Fan power: 0.37kw
|7||Spray machine||25kg/batch, need 5 minutes per batch||1||Main power: 0.75kw
Oil pump power: 0.37kw
The advantages of feed extruder:
1. The machine is a pellet feed extruder, which can produce a variety of flower-shaped pet food, and can also customize molds according to customer requirements.
2. The product discharge port is equipped with a frequency conversion speed regulating rotary cutting device, which can adjust the blade rotation speed at will to control the cutting speed and length.
3. The cost of self-made extruded feed is lower than 60%-80% of the market price. The extruded feed pellet produced by this machine is neat and smooth, floats on the water surface for more than 12 hours without sinking, does not pollute the water source, sterilizes and reduces fish diseases.
4. The feed extruder model has built-in screw and extended screw sleeve, the material has a long peeling time, adjustable temperature, and adjustable output torque, so that the made material has a high degree of expansion and a smooth surface.
5. The design is novel, unique, simple in structure, easy to install and disassemble, and easy to operate. The screw sleeve and screw are made of special wear-resistant and high-temperature resistant alloy steel materials, and are heat-treated, which have the advantages of wear resistance and long service life.
