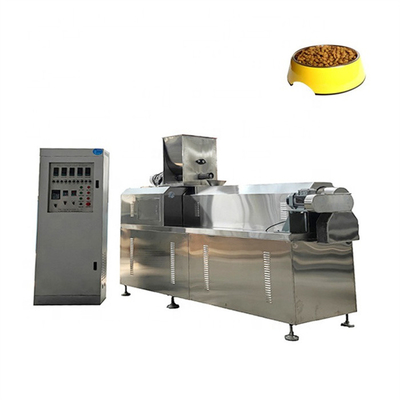

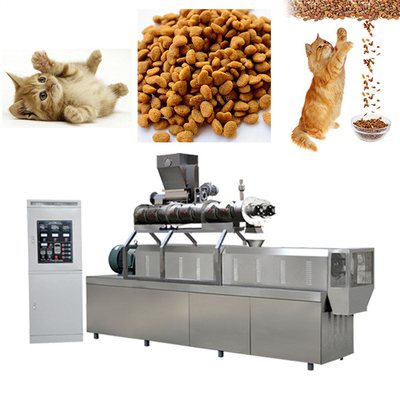

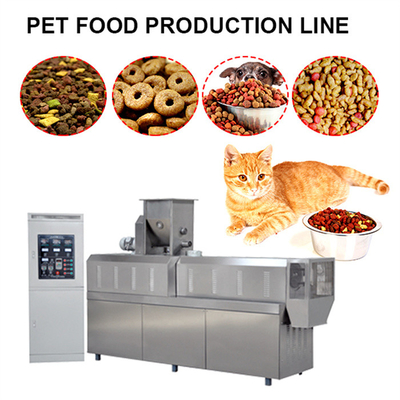

Chicken Pet Feed Production Line Stainless Steel Animal Feed Mill 3.5×0.95×1.85m

I'm Online Chat Now

Chicken Pet Feed Production Line Stainless Steel Animal Feed Mill 3.5×0.95×1.85m

Chicken Pet Feed Production Line Stainless Steel Animal Feed Mill 3.5×0.95×1.85m
Chicken Pet Feed Production Line Stainless Steel Animal Feed Mill 3.5×0.95×1.85m Chicken Pet Feed Production Line Stainless Steel Animal Feed Mill 3.5×0.95×1.85m Chicken Pet Feed Production Line Stainless Steel Animal Feed Mill 3.5×0.95×1.85m Chicken Pet Feed Production Line Stainless Steel Animal Feed Mill 3.5×0.95×1.85m

Large Image :  Chicken Pet Feed Production Line Stainless Steel Animal Feed Mill 3.5×0.95×1.85m

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: LY65,LY70,LY85
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $15,000.00/Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Chicken Pet Feed Production Line Stainless Steel Animal Feed Mill 3.5×0.95×1.85m

Description
Name: 150kg Per Hour Easy Operate Stainless Steel Animal Pet Feed Production Line Condition: New
Dimension(l*w*h): 3500x950x1850mm Heating Source: Electricity, Gas, Diesel, Steam
Power(w): 30KW Warranty: 1 Year
Capacity: 180-500kg/h Voltage: Customer's Requirement
High Light:

3.5m Pet Feed Production Line

,

chicken feed pellet machine 0.95m

,

animal feed mill 3.5×0.95×1.85m

150kg Per Hour Easy Operate Stainless Steel Animal Pet Feed Production Line



Industrial pet dog food treats making machine/pet food processing line uses meat meal, fish meal, corn powder, soya meal and other grains powder as main materials to make the pet food, such as dog, cat, fish, bird food etc. With different shapes and tastes by changing the dies and formulations. The pet foods are made under high temperature condition, and popular to the pet food market.


In order to increase the protein and other nutrients for our pet. Automatic dry dog pet food machine/processing line use meat powder,grains,beans and vegetables as raw materials to produce pet food with new shape, unique taste to let them live healthier.



150kg Per Hour Easy Operate Animal Pet Feed Production Line



1. Ingredients: corn, soya, bean meal, vegetables, bone meal, meat meat etc.
2. Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes by Changing the Dies and Formulations.
3. Capacity: 120-200 KG/H,300-500 KG/H,800-1000 KG/H,1-2T//H,2-3T/H,3-5T/H, etc.
4. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage according to different countries.
5. Machines Materials: All the machines are made by food grade stainless steel.



Technical Parameters of pet food double screw extruder machine production line:

Model Installed Power Power Consumption Output Size (L*W*H)
LY65 47KW 30KW 180kg/h 3500x950x1850mm
LY70 53KW 37KW 200-250kg/h 3200x760x2000mm
LY70L 53KW 37KW 200-250kg/h 3200*930*2000mm
LY85 99KW 75KW 500kg/h 3800*1100*2350mm



Flow Chart of pet food double screw extruder machine production line

Flour Mixer → Double-screw Extruder → Conveyor → Dryer → Elevator → Coating Line → Cooling Conveyor



The Equipment of pet food double screw extruder machine production line:

Ribbon Blender→Bucket Elevator→Storage Hopper→ Conditioner→ Twin Screw Extruder→ Air Conveyor→ Seven layer dryer→Air Conveyor→ Oil Sprayer→ Flavoring Roller→ Cooling Conveyor→Air Conveyor→Sifter→Air Conveyor



Applications of double screw extruder machine production line:

Different raw material and nutrient elements can be added together according to advanced formula, so the final products are tasty and easy to digest.



The features of the pet feed:
The water content is below 12%
Digestibility can reach 70%
Nutrition is comprehensive and balanced
Easy to carry, long shelf life



FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
30% is paid by T/T as the down payment, 70% is paid by T/T orL/C before shipment
Q:Guarantee?
Within 12 months.
