Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H

I'm Online Chat Now

Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H

Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H
Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H

Large Image :  Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: MK15A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $15,000.00/Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H

Description
Name: 300KG/H Fish Feed Production Plant Floating Pet Feed Production Line Condition: New
Dimension(l*w*h): 2200*1000*1500mm Power(w): 34KW
Capacity: 100-1000kg/h Weight: 380 Kg
Motor: Clients' Requiers Color: As Your Requirement
High Light:

fish feed processing machine 11kw

,

AC220V floating fish feed making machine

,

300KG/ H fish feed processing machine

300KG/H Fish Feed Production Plant Floating Pet Feed Production Line



In order to increase the protein and other nutrients for our pet, Fish Feed Production Plant Floating Pet Feed Production Line use meat powder, grains, beans and vegetables as raw materials to produce pet food with new shape, unique taste to let them live healthier.

Automatic AC220V Floating Fish Feed Processing Machine 11kw 300KG/ H 0

300KG/H Fish Feed Production Plant Floating Pet Feed Production Line
Main Machines
Power
Capacity
Feed Hammer Mill
11kw
300-400kg/h
Horizontal Mixer
3kw
1000kg/batch
DSP90 Feed Extruder
37kw
300kg/h
Dryer
24kw
300-400kg/h
Flavoring Machine
0.75kw
400-500kg/batch
Packing Machine
AC 220V 50Hz
50kg/h
Control System
/
/



1). The fish food whole line fully continuous and automatic.
2). We could provide basic fish food formula according to your require.
3). The final fish food shapes and sizes can be various by changing the mould.
4). Supply different size mould free of charge.
5). Packing machine could be supplied to work with the fish feed production line (depending on your require).

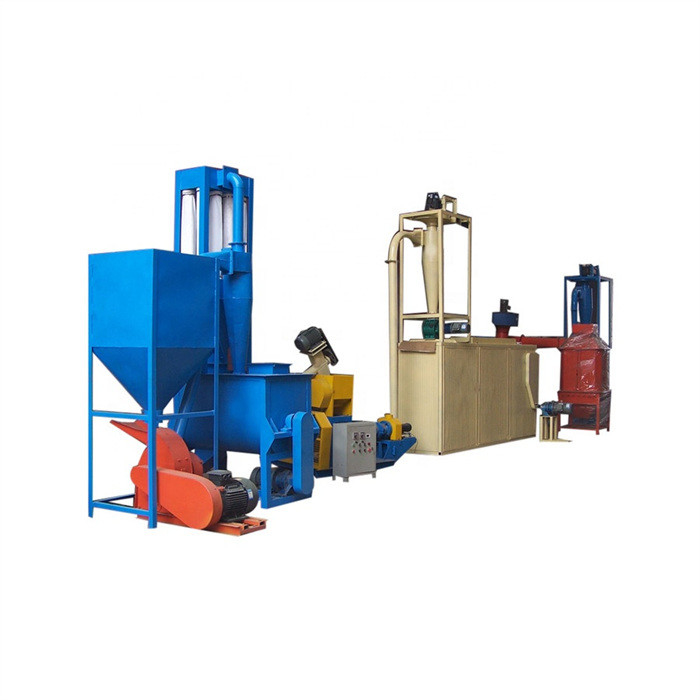

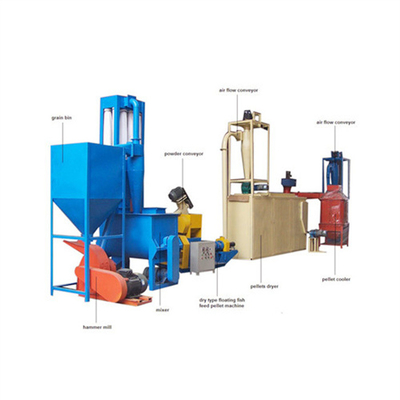

Structures of 300KG/H Fish Feed Production Plant Floating Pet Feed Production Line

Crushing

Crushing With our tph fish feed product line, we firstly break the raw materials into smaller pieces, for an efficient pellet making. This is done by fast-moving rotating hammers within the crushing chamber. To further reduce the size, the materials are run through a rapid airflow of very high pressure, breaking the materials into much smaller pieces. A fish hammer mill is therefore necessary for fish pellet grinding in a fish pellet plant.



Mixing

Mixing The crushed materials which are now in powdered form should be thoroughly mixed to get a fish feed that is nutritional and of high quality. One crucial part of the mixing process is shearing and convection, and this mixing effect is achieved with our feed mixer which has a twin ribbon and a single shaft.



Extruding (fish feed pelletizing)

Extruding The mixed feed materials are compressed into desired shapes and pellet sizes with the fish feed production line machinery. For a cheap, easy-to-operate, yet reliable tablet fish food machine for a small-scale or medium-scale fish pellet plant, the dry type fish feed extruder is highly recommended. For large factories however, the wet type feed extruder that has a conditioner will be able to produce in large quantity, a high quality fish feed pellet.



We are a professional and advanced supplier which mainly supply feed equipments like feed crusher,mixer,pellet machine,granule crumbler,feed pellet cooler, packing and entire feed pellet production line. Leabon has extensive expertise in the areas of engineering. The continuous research helps us to develop the latest technology in biomass new energy field more effectively.





FAQ
Q1: What the main funtion about this equipment?
A: This pet feed making line used to making food for dog, cat, fish, shrimp, etc.
Q:I know litter for this machine, how can I choose most suitable machine?
A: Please kindly inform:
1. What is your raw material of this pet feed making line?
2. What is the capacity do you need? (kgs)
3. What is the size of the final feed pellets do you want?(mm)
