Home ProductsPet Feed Production Line

Automatic Twin Screw Extruder Food Processing Machine 50hz 380V

I'm Online Chat Now

Automatic Twin Screw Extruder Food Processing Machine 50hz 380V

Automatic Twin Screw Extruder Food Processing Machine 50hz 380V
Automatic Twin Screw Extruder Food Processing Machine 50hz 380V Automatic Twin Screw Extruder Food Processing Machine 50hz 380V Automatic Twin Screw Extruder Food Processing Machine 50hz 380V Automatic Twin Screw Extruder Food Processing Machine 50hz 380V Automatic Twin Screw Extruder Food Processing Machine 50hz 380V

Large Image :  Automatic Twin Screw Extruder Food Processing Machine 50hz 380V

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: MK65
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $15,000.00/Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Automatic Twin Screw Extruder Food Processing Machine 50hz 380V

Description
Name: Twin Screw Extruder Automatic Pet Food Production Line Dog Food Making Machine Condition: New
Voltage: 380V/50Hz, Or As Per Request Dimension(l*w*h): 21000x1200x2200mm
Heating Source: Electricity, Gas, Diesel, Steam Power(w): 34KW
Warranty: 1 Year Capacity: 150kg/h To 3000 Kg/h
High Light:

50hz auto twin screw extruder machine

,

twin screw extruder food processing 50hz

,

380V twin extruder machine

Twin Screw Extruder Automatic Pet Feed Production Line Dog Food Making Machine



Pet Food Production Line / pet food processing machine is widely used for producing variety materials into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The final products have unique shape and good taste, high nutrition and smooth textures. For feeds of fish and shrimp, the floating time in water can be adjusted by the extrusion degree adjustment. China extrusion dog food production process machinery is an ideal for small and medium fish farm holders or feed processing plant.



Twin Screw Extruder Automatic Pet Food Production Line Dog Food Making Machine



Production process of dry extruded dog food production line / pet food processing machine
Mixer → Screw conveyor → Extruder → Conveyor → Oven → Cooling → Packaging

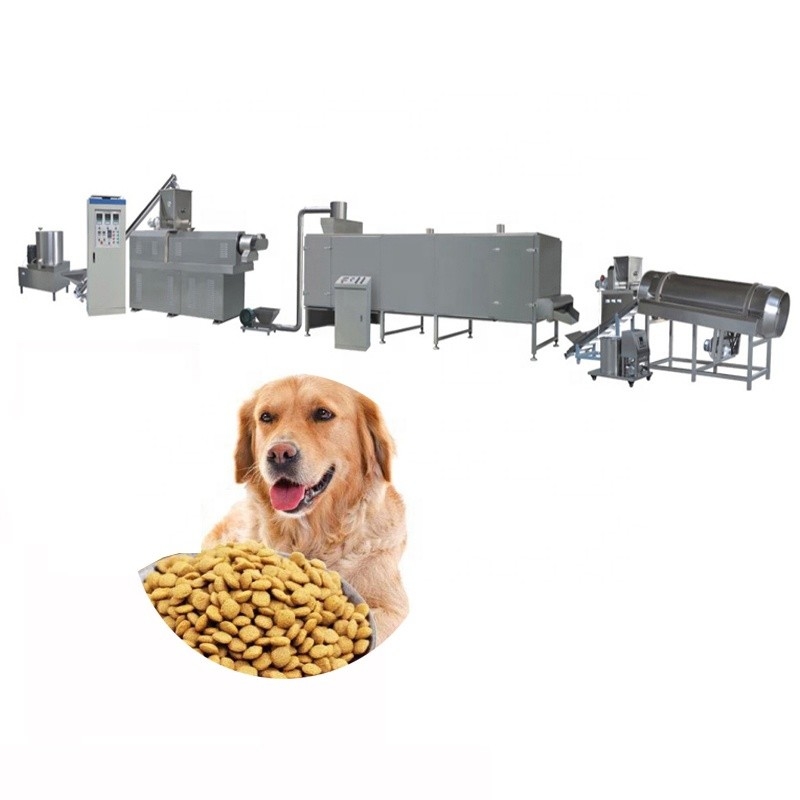

Full production line of Pet Food Production Line

dog food production line includes Mixing system; Extrusion system; Drying system; Seasoning system, Packaging system. Below is the detailed information for main machines in this processing line.



Model
Installed power
Real power
Output
Dimension
MK-65
81.5kw
53kw
150kg/h
21000x1200x2200mm
MK-70
115kw
76kw
200kg/h
23000x1500x2200mm
MK-85
180kw
117kw
300kg/h
28000x1500x4300mm



Technical Features of dry extruded dog food production line / pet food processing machine
1. This extruder equipment adopts the auto-controlling speed feeding tool to produce the feed material evenly.
2. Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
3. High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
4. The cutting knife adopts the frequency controlling speed in order to change the material size.
5. The floating time can be controlled by the puffing degree adjustment.
6. Auto-temperature control system makes the temperature controlling more direct viewing and the parameter more precise.



Automatic Twin Screw Extruder Food Processing Machine 50hz 380V 1







Mixer

1.main motor :4.0kw

2.size: 1.2*0.9*1.4m

3.Output: 3.0kg-4.0kg/time

Functions:

Mixer makes the raw material which adding water and liquid chemical additive fully mixer equally . The machine mixers the flour and prepares them ready to be used in the next step .













Screw Conveyor

Output: 0--150kg/h
Main motor : 1.1kw
Size: 2.5*0.6*2.3m
Functions:

Screw conveyor can not only convey on the level but aslo by any angel these materials can be conveyed in the stainless steel roller without leaking , dust pollution.

Automatic Twin Screw Extruder Food Processing Machine 50hz 380V 2
Automatic Twin Screw Extruder Food Processing Machine 50hz 380V 3

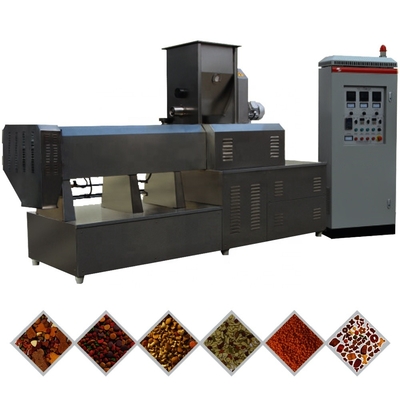

Extruder

Brand: MIKIM
Original: China
We can supply your different models extruder according to your targer capcity . With a same extruder , you can produce different shapes of food by changing different moulds .





Dryer

Brand: MIKIM
Original: China
It is used for drying . The net belt running speed can be controlled to change the food drying time in the dryer . The temperature aslo can be controlled.

Automatic Twin Screw Extruder Food Processing Machine 50hz 380V 4





Packing

Machines will be packed into wooden cases or wrapped by plastic film. Firstly, anti-rust oil is painted onto the machine,

then wrap film and air bubble pad then to export non-fumigation wooden cases outside. Containers will be sent to our

factory to load the machines and will be sealed before being sent out to make sure the safety of our machines.



Our Service



1. OEM & ODM

2. One year guarantee and life-time maintenance service.

3. Consultation service before, during, and after sales.

4. Project planning and design services.

5. Debugging of machines until all are functional.

6. Training the customers how to operate and maintain the machines correctly.

7. Offer new product techniques and recipes timely.
