Product Details:
|
| Name: | Mobile Hammer Mill Machine Wood Grinder Crusher Machine For Sawdust Powder | Voltage: | 380V |
|---|---|---|---|
| Type: | Mill Machine | Quantity Of The Hammers: | 56pcs |
| Dimension(L*W*H): | 610*635*780mm | Capacity(t/h): | 650-800kg/h |
| High Light: | Hammer Mill Machine 380Volt,Log Branches Wood Sawdust Hammer Mill,High Capacity Wood Sawdust Hammer Mill |
||

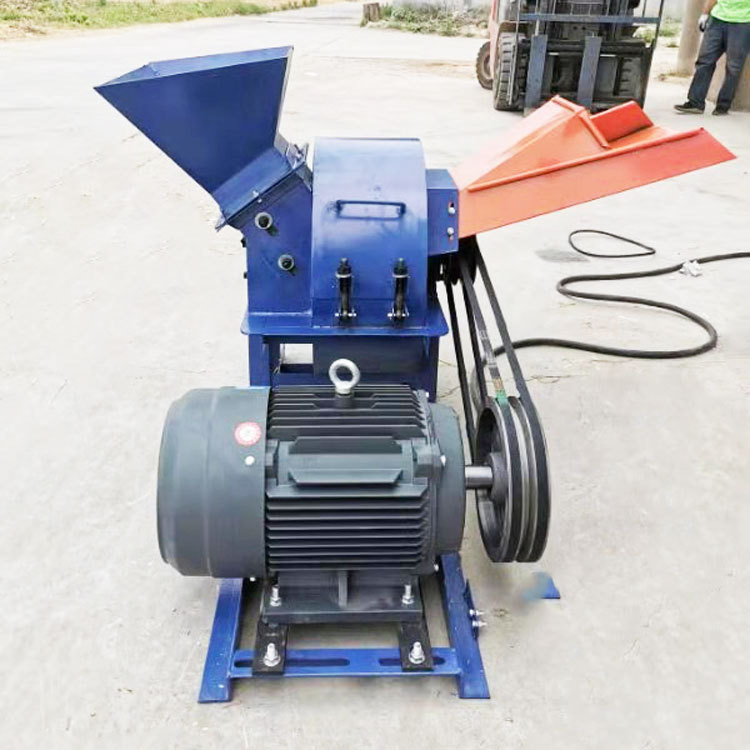

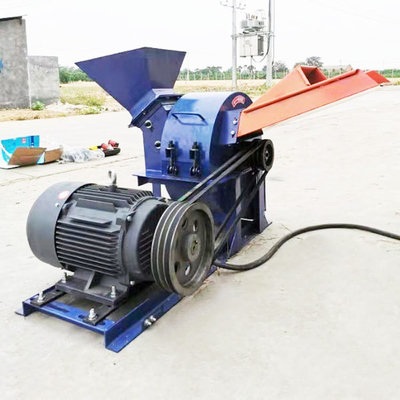

High Capacity Biomass Crusher Pine Log Branches Wood Sawdust Hammer Mill
1. This series of crushers can crush all kinds of coarse fibers and large bulk materials,
such as branches, bark, plant roots, wood blocks, life refuse and chemical waste.
2. High yield and low energy consumption.
3. This series of pulverizer adopts steel plate welding structure.
4. the motor and rotor are installed on the same base,
5. and the belt turns and the rotor is tested by dynamic balance.
6. The feed mouth is at the top of the mill, which can be matched with the feeding mechanism of screw conveyor or belt conveyor.
7. The hammer is arranged in a symmetrical arrangement.
8. The structure is simple, durable, safe and reliable, easy to install, easy to operate and maintain, small vibration.
| Model |
Power (KW) |
Capacity (T/H) |
Rotor diameter (MM) |
Rotate speed (RPM) |
Weight (KG) |
| SFSPMX80×45 | 22/37 | 1.5-2 | 800 | 2400 | 2000 |
| SFSPMX80×60 | 45/55 | 2.5-3.5 | 800 | 2400 | 2045 |
| SFSPMX80×80 | 75/90 | 4-6 | 800 | 2400 | 2200 |
| SFSPMX80×100 | 110/132 | 7.5-8.5 | 800 | 2400 | 2300 |
| SFSPMX80×120 | 160/200 | 10-12 | 800 | 2400 | 2450 |
