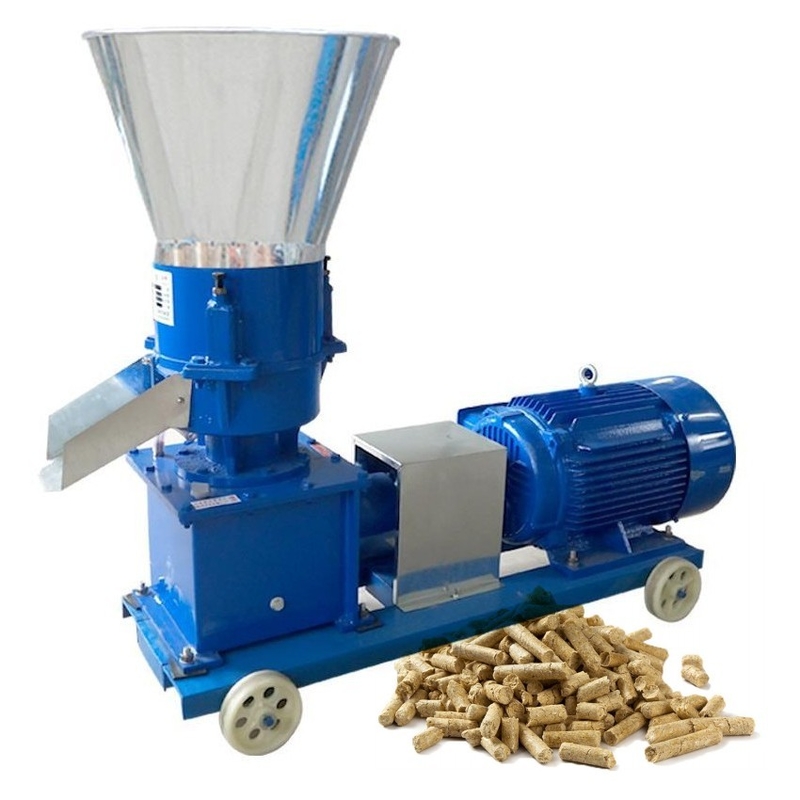

Product Details:
|
| Name: | Poultry Feed Pellet Machine | ITEM: | Pellet Making Machine |
|---|---|---|---|
| Weight (KG): | 125 KG | Dimension(L*W*H): | 1000*480*780mm |
| Pellet Diameter: | 2-12 Mm (can Be Selecation) | Warranty: | 1 Year |
| High Light: | Biomass Animal Feed Pelletizer,Biomass Wood Granulator Machine,12mm Wood Granulator Machine |
||

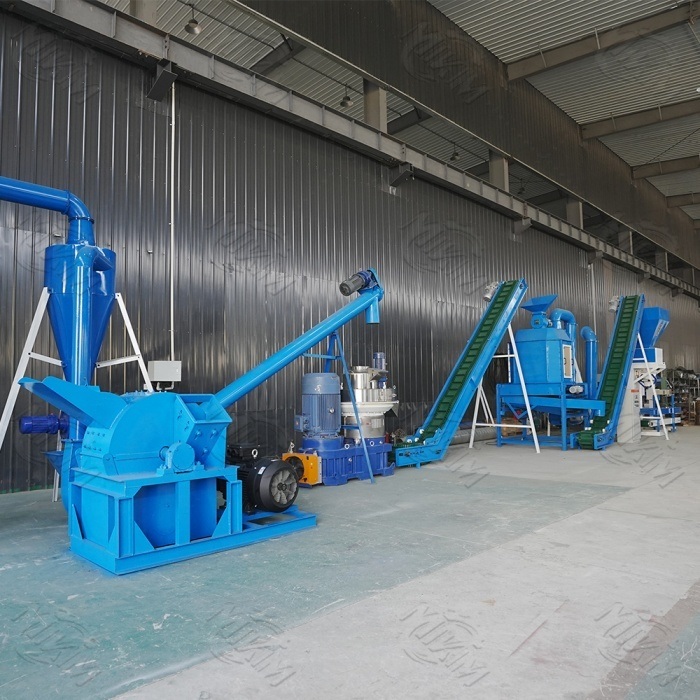

1. Biomass wood sawdust pellet making machine is our company patent products, our company is the pellet machine manufacturer, produce the wood pellet production line and our main products include: pellet machine, hammer mill, wood chipper, sawdust machine, drying and cooling machine, packing machine.
2. Our this series biomass wood sawdust making pellet machine is applied to the materials with low adhesiveness and low shaping, such as biomass waste from sawdust, rice husk, coffee husk, agricultural stalk, straw, peanut shell, sun flower seed, palm shell, paper, plastic etc, fertilizer materials such as animal manure ,plant waste etc.
3. Biomass woood sawdust pellet making machine adopts the hart part adopts "double-layer die" as the unique structure; The roller are made by abrasion proof alloy stell improving the use life to spare part greatly; for the drive parts, the grease is filtrated automatically lubricated properly; special design, rational structure, low power consumption, high efficiency
4. Biomass wood sawdust pellet making machine contains automatical lubricate spare parts oil systems, which can lubricate spare parts oil automatically---- such as rollers, vertical shaft , gears, bearings ,this technology got national patent.
5. Our this series biomass wood sawdust pellet making machine works with air fan and bags dust filter, on one hand, it will clean dust, very environmental protection . on the other hand, it can cool pellet machine inner spare parts heat temperature,making sure long continuous working hours. This character is our products different from other suppliers products.
Advantages of biomass wood sawdust pellet making machine
1.Vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.
2.Die fixed,rollers rotating,materials centrifugal,evenly distributed around.
3.Double-layer dies,up and down dual-use,high capacity,saving energy.
Model |
Power(kw) |
Capacity(t/h) |
Pellet Size(mm) |
Weight(t) |
Dimension( mm ) |
Roller Qty |
| XGJ560 | 90+1.5+0.37+1.5kw | 1-1.5 | 6-10 |
6.1 |
2600 × 1300 × 2300 |
2 |
| XGJ720 | 160+3+0.37+1.5kw | 1.5-2.5 | 6-10 |
9.5 |
2800 × 1400 × 2500 |
2 |
| XGJ850 | 220+3+0.55+2.2kw | 2.5-3 | 6-12 |
14.5 |
3300 × 1400 × 3100 |
3 |
| XGJ920 | 315+5.5+0.55+1.5+3 kw | 3-4.5 | 6-12 |
18 |
3800 × 1680 × 3400 |
3 |
| XGJ1050 | 315+5.5+0.55+1.5+3 kw | 4.5-6 | 6-12 |
24.5 |
4000 × 1700 × 3800 |
3 |
