Small Wood Hammer Mill Wood Block Crusher for Waste Wood

I'm Online Chat Now

Small Wood Hammer Mill Wood Block Crusher for Waste Wood

Small Wood Hammer Mill Wood Block Crusher for Waste Wood
Small Wood Hammer Mill Wood Block Crusher for Waste Wood
Small Wood Hammer Mill Wood Block Crusher for Waste Wood Small Wood Hammer Mill Wood Block Crusher for Waste Wood Small Wood Hammer Mill Wood Block Crusher for Waste Wood

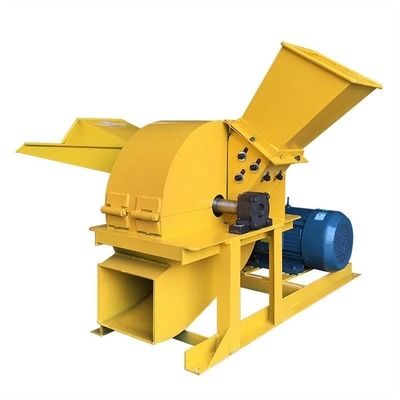

Large Image :  Small Wood Hammer Mill Wood Block Crusher for Waste Wood

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: SFSP56×36
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $500.00 - 910.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Small Wood Hammer Mill Wood Block Crusher for Waste Wood

Description
Name: Mobile Hammer Mill Machine Wood Grinder Crusher Machine For Sawdust Powder Voltage: Customized, 380V,50HZ
Power: 3-4 Kw Dimension(L*W*H): 1550*920*1100mm
Screen Size: 74*900 Mm Capacity(t/h): 500kg/h
High Light:

Small Wood Hammer Mill

,

500kg/h Wood Block Crusher

Small Wood Hammer Mill Wood Block Crusher And Waste Wood Crusher Machine

Wood crusher is an ideal equipment for producing wood sawdust, wood chips. It is suitable for crush the wood, branches, fork and other raw materials into sawdust and other small pieces wood chips. It is mainly used in shaving board, sawdust board, biomass pellet, charcoal production, mushroom and other raw materials processing. The main raw materials for wood crusher are bamboo, thatch, corn stalk, sorghum stalk, small wood, branches etc.Hammer crusher is used for crushing medium hard materials with weak abrasiveness, and the compression strength of the materials to be crushed should not exceed 100MPa, and the water content should be lower than 15%. The materials that can be crushed by hammer crusher include coal, salt, chalk, gypsum, tile and limestone and also fiber structure and broken wood and paper with strong elasticity and tenacity.

Model CQ420 CQ500 CQ600 CQ700 CQ800 CQ900
Cutter diameter 420mm 500mm 600mm 700mm 800mm 1000mm
Blade number 4 4 4 4 4 4
Blade length 90mm 100mm 150mm 200mm 230mm 260mm
Inlet size 160*200mm 180*200mm 200*200mm 200*250mm 250*300mm 300*400mm
Rotated speed 2600r/min 2600r/min 2600r/min 2300r/min 2000r/min 2000r/min
Power 7.5-11kw 15kw 18.5-22kw 22-30kw 37-45kw 75kw
Capacity 600-900kg/h 800-1000kg/h 1200-1500kg/h 1800-2000 kg/h 2500kg/h 3000-4000kg/h

hammer mill

Product features:

1.Low noise and small machine and small footprint;

2.Compact and simple;

3.High output and low energy consumption;

4.Wide range of applications
