Product Details:
|
| Name: | Poultry Feed Pellet Machine | ITEM: | Pellet Making Machine |
|---|---|---|---|
| Weight (KG): | 350 | Driven Type: | Motor ,diesel Engine,PTO |
| Pellet Diameter: | 2-12 Mm (can Be Selecation) | Warranty: | 1 Year |
| Raw Material: | Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton | Show Room: | Viet Nam, Indonesia,China |
| Key Selling: | Easy To Operate | Power Supply: | Diesel Engine/gasoline/motor/PTO Driven |
| Certificate: | CE | Dust Remove System: | Cyclone And Bag Dust, To Remove The Dust |
| Capacity: | 800-1000kg/h | ||
| High Light: | 12Mm Wood Pellet Machine,Agri Stalks Wood Pellet Machine |
||

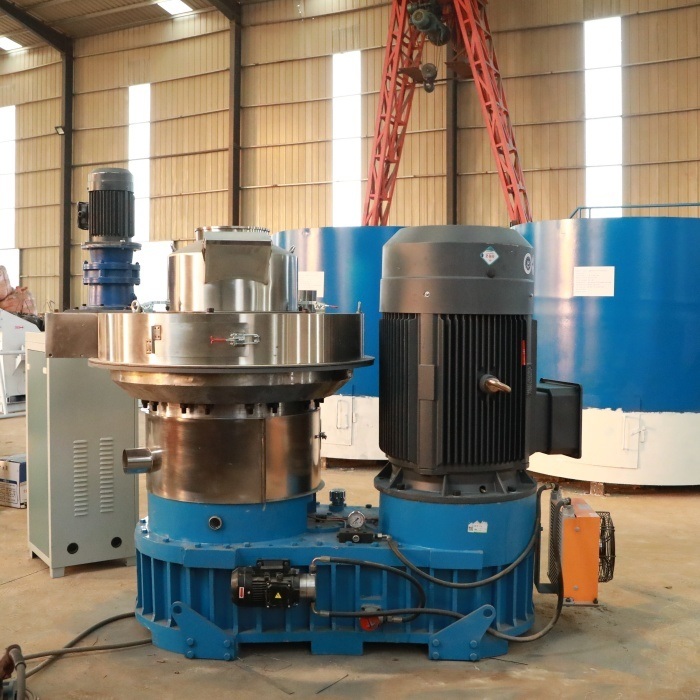

Hot Sale China Supplier Wood Pellet Machine Price
The wood pellet machine makes the fuel pellets from wood sawdust, agri-stalks, alfalfa, grass, waste paper, shell, rice husk, bamboo, palm and others, they are suitable for wide materials.
| Model |
Capacity (kg/h) |
Power (kw) |
Specification (mm) |
Weight(t) |
Dimension (mm) |
| RKL-250 | 100-200 | 15 | 4-6 | 0.5 | 1400*600*1000 |
| RKL-280 | 150-250 | 22 | 4-6 | 0.65 | 1760*670*1600 |
| RKL-300 | 100-300 | 30 | 4-8 | 0.76 | 1860*670*1600 |
| RKL-350 | 300-600 | 37 | 4.5-10 | 2.2 | 1900*850*1750 |
| RKL-400 | 500-800 | 55 | 4.5-10 | 4.3 | 2300*1100*1900 |
| RKL-550 | 1000-1500 | 90 | 4.5-12 | 5.5 | 2350*1100*2050 |
| RKL-800 | 1500-2500 | 160 | 4.5-12 | 6.8 | 3200*1235*2700 |
| RKL-1200 | 3000-5000 | 320 | 4.5-15 | 19 | 3800*1700*4200 |
(1)Big Gear Box
The gearbox adopts independent research and development big 3 level drive,module increased , gear strengths increased,carrying more and more ability.The service life increased 8-10 times than the traditional reducer,greatly increase the service life.
(2) Casting material of gearbox with high stability. Gearbox body is casted. Its advantages has strong,good heat dissipation,low heat deformation, high steady etc. Avoid disadvantages of the bad sealing for welding boby, easily deformation due to high heat,low steady in basis etc.

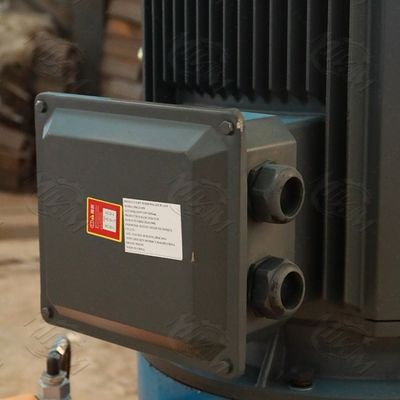

(3) Siemens Brand Motor: Motor of biomass pellet machine use Siemens Brand. This kind of motor is frequency and has thick copper coil, it won’t be burned due to instantaneous current.
(4) Parallel vertical installation reduce energy consumption loss. The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.
