Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding

I'm Online Chat Now

Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding

Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding
Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding

Large Image :  Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: BS-420,BS-1000,BS-800,BS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $950.00 - 3900.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding

Description
Name: CE Certificate Tunisia Bulk Pine Aspen Wood Shavings For Horse Animal Bedding Machine Wood Shaver Power(w): 11-55kw
Weight: 500kg Voltage: 380v ,Customized
Dimension(l*w*h): 1200*500*700mm Capacity: 300-2000kg/h
After-sales Service Provided:: Online Support Package: Wooden Case
High Light:

Animals Bedding Wood Log Shaving Mill

,

380v Wood Shaving Equipment

Wood log shaving mill /machine making wood shavings for animals bedding



Wood shaving machine also called wood crusher, wood chipper, is designed to cut wood into shavings, the production could be used as packing filler, animal bedding, or the raw material for making plywood board, for paper making industry.It is mainly used for the bulk production of even thickness wafer shavings and is kind of wood shaving mill automatically.

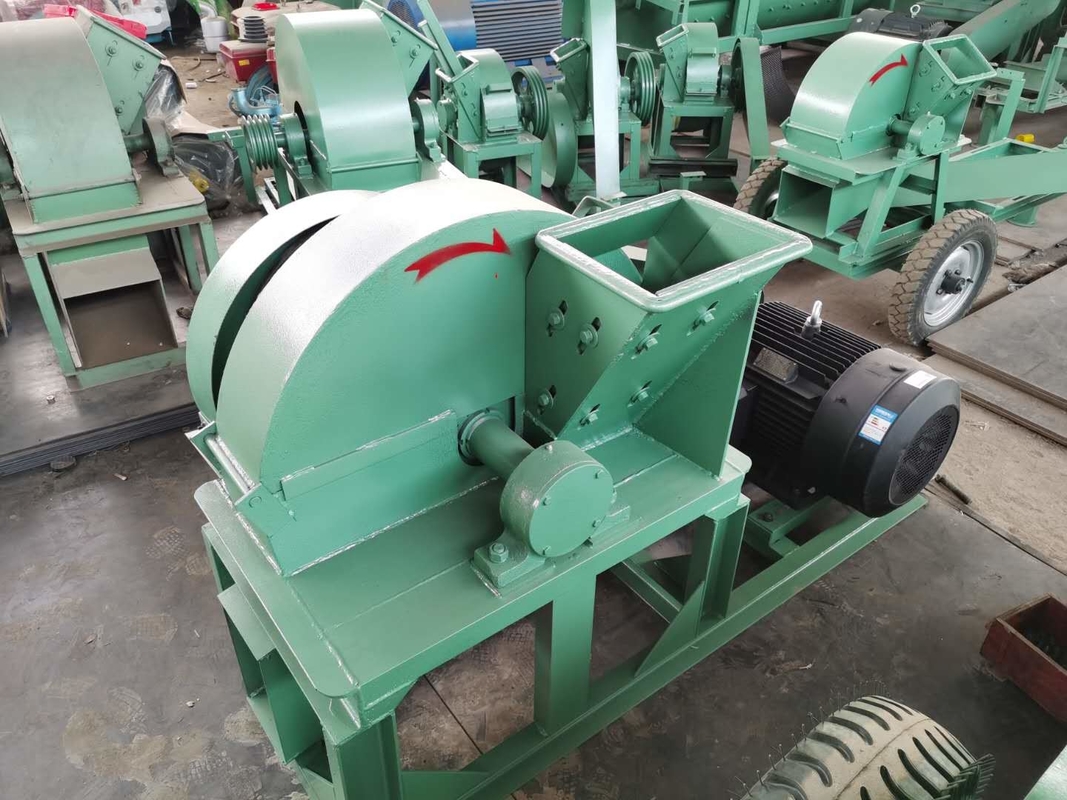

Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding 0

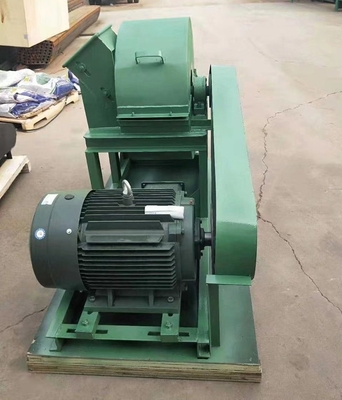

Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding 1

  Type     Knives qty    Input size(mm)    Cutter dia(mm)    Blade size(mm)    Output(t/h)    Spindle speed(r/min)    Power(kw)          Size(mm)
420 4 160*155 424 90*60*8 0.8-1.5 2600 7.5-11 1200*550*750
500 4 210*180 510 120*70*8 1.2-2.0 2400 18.5-22 1500*640*820
600 4 235*200 600 150*70*8 1.8-2.5 2200 22-30 1600*700*1050
700 4-6 230*200 600 180*70*8 2.5-3.5 2000 30-37 1850*830*1050
900 8 280*290 750 150*100*10 5.5-6.5 1500 55-75 2000*870*1500
1000 8 280*290 750 150*140*10 6-7 1500 75-6 1180*1100*940
1200 8 390*385 1000 190*140*12 7-8.5 1200 90-6 1430*1500*1200
1500 8 425*500 1160 230*140*14 9-11 1000 110-6 1650*1750*1400
1800 12 530*560 1300 150*140*14 11.5-14 950 132-6 2050*1850*1620



Application

1) Wood shaving machine is mainly used for mass production of uniform thickness sheet shavings, Machine can be used make Particleboard (plywood), wood pulp paper mills do raw materials

Wood log shaving mill /machine making wood shavings for animals bedding

2) Transportation companies do fragile transportation filling for small pig, cattle, sheep and various animals nest do fillings can also used for bioenergy.

Wood log shaving mill /machine making wood shavings for animals bedding

3) The machine is capable of logs, branches (branches), board edges processed into shavings produced shavings shavings and furniture factory produced.

Wood log shaving mill /machine making wood shavings for animals bedding

4) Fully automatic feeding equipment, greatly improving the speed of production, but also saves time and manpower.

Wood log shaving mill /machine making wood shavings for animals bedding

5) The machine is automatically crushed processed wood into wood shavings equipment, raw materials from the inlet into the first blade cutting into the crushing chamber, crushed by highspeed rotation of the hammer impact and shear knife appointment, then by the built-in FAN a wind generated by the screen sends the feed port or external fans pumping spout.

Wood log shaving mill /machine making wood shavings for animals bedding

6) The shavings Size is determined by adjusting the blade length and mesh aperture size to accommodate a variety of needs.

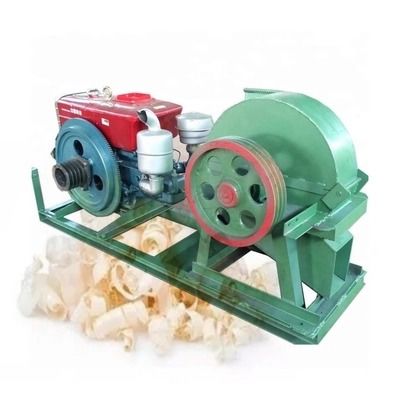

Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding 2

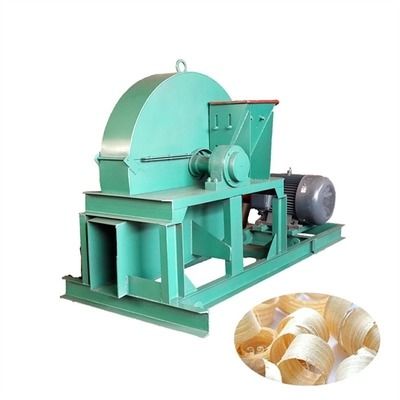

Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding 3

Wood Log Shaving Mill Machine Making Wood Shavings For Animals Bedding 4

Features:



1. Widely application:

Wood shaving machine can used for the nest of animals, chipboard, raw material for paper making factory, filler of fragile objects for transport company, biological energy source,etc.


2. Made of high quality materials:This wood shaving machine is made of high manganese carbon steel, which has the features of anti-corrosion, longer service life, etc. Further, this series machine cutter is made of high quality alloy.


3. Cost saving:

Compact and simple structure, so it can save your area occupying cost; Made of high quality steel, so it can save your maintain cost and spare parts cost;


4. Low noise,cover place saving,little invest and more return.


5. Simple operation.




FAQ
1.How is the product quality?
We have CE certification
We take a test on every product before delivery
Customers who have purchased have said that the product quality is good.

2.Is the product price high?
We are supplier and the prices are ex-factory prices
Discount can be given according to quantity

3.Can you send the goods to my home?
Usually we delivery the goods by sea to port
But, if the customer asks us to delivery to home, we also can do it

4.If it can be customized?
We can produce products according to your needs

5.How long is the warranty of your equipment? Do you supply spare parts?
Our warranty period is one year generally.
We can supply spare parts.

6.Do you provide after-sale service?
We have a professional after-sale service team to promptly and thoroughly solve your problems.

7. Do you provide equipment operation training?
We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.




Package

1.wood shaving machine italy will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.

2.Packaging details standard export wooden case or in container.



Shipping

1.We will serve your shipping method about ocean transport ,air lift ,freights and so on.

2.The delivery time is usually 7-15 working days upon receipt of your payment.
