Product Details:
|
| Name: | CE Certificate Tunisia Bulk Pine Aspen Wood Shavings For Horse Animal Bedding Machine Wood Shaver | Power(w): | 11-55kw |
|---|---|---|---|
| Weight: | 500kg | Voltage: | 380v ,Customized |
| Dimension(l*w*h): | 1200*500*700mm | Capacity: | 300-2000kg/h |
| After-sales Service Provided:: | Online Support | Package: | Wooden Case |
| High Light: | Pet Bed Wood Shaving Machine,Customized Machine That Shaves Wood,Wood Shaving Mill For Pet Bed |
||

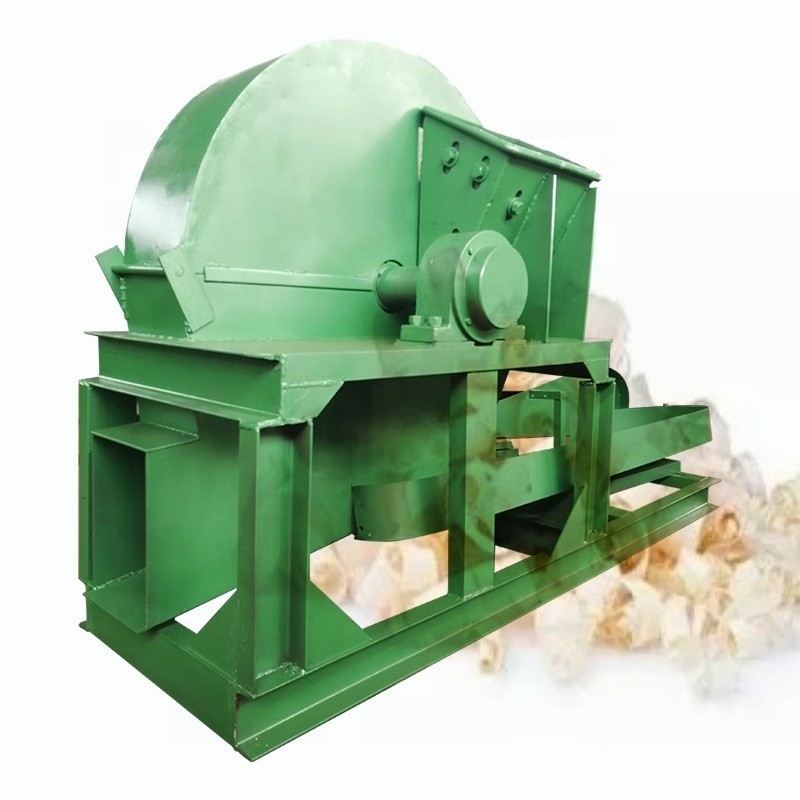

low price tree branch trunk log softer particles wood shaving machine for Pet bed
The wood pulverizer is composed of three parts: the body, the middle body and the lower body. The middle body is equipped with triple stator coil, crushing knife disc and fineness analyzer.Main engine adopts alloy cutter head.It has a high abrasion resistance and thus increases production.With coarse crushing, fine crushing, and centrifugal to smash, driven by the motor crusher rotor high-speed operation, so that the machine to produce high-speed air to crush the material to produce high strength of the impact force, compression force, cutting force, and achieve a unique crushing function.
| Type | Knives qty | Input size(mm) | Cutter dia(mm) | Blade size(mm) | Output(t/h) | Spindle speed(r/min) | Power(kw) | Size(mm) |
| 420 | 4 | 160*155 | 424 | 90*60*8 | 0.8-1.5 | 2600 | 7.5-11 | 1200*550*750 |
| 500 | 4 | 210*180 | 510 | 120*70*8 | 1.2-2.0 | 2400 | 18.5-22 | 1500*640*820 |
| 600 | 4 | 235*200 | 600 | 150*70*8 | 1.8-2.5 | 2200 | 22-30 | 1600*700*1050 |
| 700 | 4-6 | 230*200 | 600 | 180*70*8 | 2.5-3.5 | 2000 | 30-37 | 1850*830*1050 |
| 900 | 8 | 280*290 | 750 | 150*100*10 | 5.5-6.5 | 1500 | 55-75 | 2000*870*1500 |
| 1000 | 8 | 280*290 | 750 | 150*140*10 | 6-7 | 1500 | 75-6 | 1180*1100*940 |
| 1200 | 8 | 390*385 | 1000 | 190*140*12 | 7-8.5 | 1200 | 90-6 | 1430*1500*1200 |
| 1500 | 8 | 425*500 | 1160 | 230*140*14 | 9-11 | 1000 | 110-6 | 1650*1750*1400 |
| 1800 | 12 | 530*560 | 1300 | 150*140*14 | 11.5-14 | 950 | 132-6 | 2050*1850*1620 |
Production Characteristics
1. This product is reasonable in design, reliable in quality, simple in structure, convenient in operation, small in volume, less
in occupation of space, and energy-saving in labor and electricity.
2, the equipment is divided into electric version and diesel version of two models, according to their own needs to choose the model.
3. The main parts of the product are made of thickened steel plates, which are strong and durable. The cutting tools are specially treated and can be operated continuously.
4. Suitable for all kinds of raw materials (corn straw, cotton stalk, corn cob, branches, leaves, green garbage, etc., or wood
factory scraps, etc.)
PACKAGE
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.
DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order
