Product Details:
|
| Voltage: | 380v ,Customized | Name: | CE Certificate Tunisia Bulk Pine Aspen Wood Shavings For Horse Animal Bedding Machine Wood Shaver |
|---|---|---|---|
| Power(w): | 11-55kw | Weight: | 500kg |
| Dimension(l*w*h): | 1200*500*700mm | Capacity: | 300-2000kg/h |
| After-sales Service Provided:: | Online Support | Package: | Wooden Case |
| High Light: | Seamless Welding Wood Shaving Machine,Animal Bedding Wood Logs Crusher,CE Approved Wood Shaving Baler Machine |
||

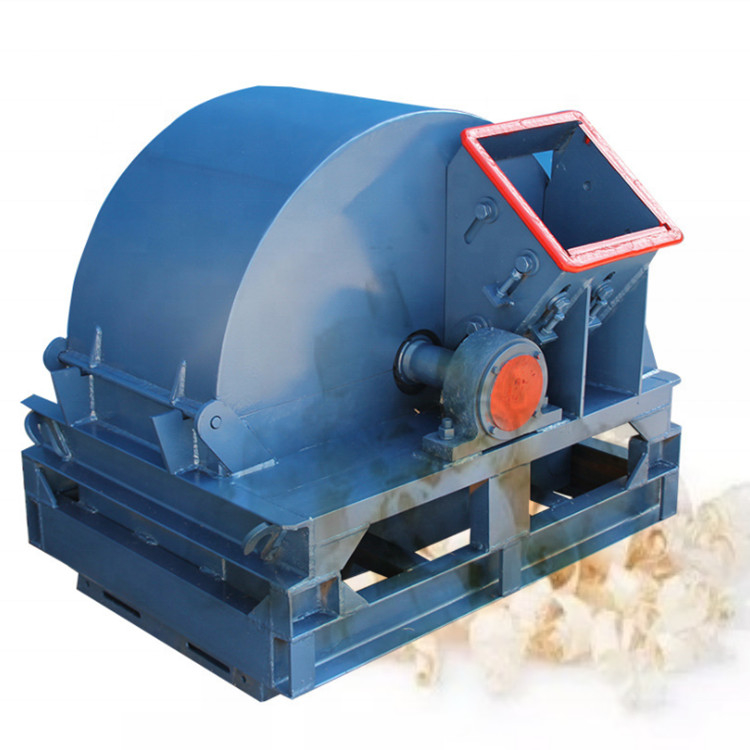

wood shaving machine for animal bedding cutting wood logs crusher
The wood shaving machine is mainly used for mass production of thin shavings with uniform thickness. The finished product is the same as the shavings produced by the wood factory. The wood shaving machine adjusts the size of the finished shavings by adjusting the blade angle and the screen diameter. To adapt to various needs.
The machine can process logs, branches, planks and other woods within 30 cm into wood shavings, divided into multiple models, with an output of 500-2000kg/h. It can meet different needs.
| Type | Knives qty | Input size(mm) | Cutter dia(mm) | Blade size(mm) | Output(t/h) | Spindle speed(r/min) | Power(kw) | Size(mm) |
| 420 | 4 | 160*155 | 424 | 90*60*8 | 0.8-1.5 | 2600 | 7.5-11 | 1200*550*750 |
| 500 | 4 | 210*180 | 510 | 120*70*8 | 1.2-2.0 | 2400 | 18.5-22 | 1500*640*820 |
| 600 | 4 | 235*200 | 600 | 150*70*8 | 1.8-2.5 | 2200 | 22-30 | 1600*700*1050 |
| 700 | 4-6 | 230*200 | 600 | 180*70*8 | 2.5-3.5 | 2000 | 30-37 | 1850*830*1050 |
| 900 | 8 | 280*290 | 750 | 150*100*10 | 5.5-6.5 | 1500 | 55-75 | 2000*870*1500 |
| 1000 | 8 | 280*290 | 750 | 150*140*10 | 6-7 | 1500 | 75-6 | 1180*1100*940 |
| 1200 | 8 | 390*385 | 1000 | 190*140*12 | 7-8.5 | 1200 | 90-6 | 1430*1500*1200 |
| 1500 | 8 | 425*500 | 1160 | 230*140*14 | 9-11 | 1000 | 110-6 | 1650*1750*1400 |
| 1800 | 12 | 530*560 | 1300 | 150*140*14 | 11.5-14 | 950 | 132-6 | 2050*1850*1620 |
Depending on the number of blades, shavings of different sizes can be cut. Large shavings are suitable for cattle and sheep as gaskets, small shavings are suitable for hamsters, and rabbits are used as cushion nests.
High-strength operation
The cutter plate is made of high manganese steel for continuous high-strength operation. The high-manganese steel cutter plate is not easy to deform and has a long life span.
Alloy steel blade
The alloy steel blade has excellent wear resistance and can continuously crush 20 to 30 tons of materials. High-quality blade material can effectively reduce the number of sharpening.
Seamless welding
Each welding process is completed by the most advanced modern seamless welding technology, which makes the machine stronger and more durable.
Outlet duct
A discharge air duct can be installed to directly blow the shavings to the designated position.
The finished product uses particleboard (plywood), the paper mill is used as the raw material for wood pulp paper, and the transportation company is used as the filler material for the transportation of fragile goods. It is used as filling material for small pigs, cattle, sheep and various animal nests.
PACKAGE
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.
DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order
