|Name:||Wood Branch Hammer Mill Machine Crusher Wood Grinder Hammer Mill Crusher Machine||Voltage:||380V|
|Dimension(L*W*H):||900 X 500 X 800||Weight:||260 Kg|
rustproof wood hammer mill,
diesel chipper hammer mills 2ton/ h,
hammer mill for wood chips 37kw

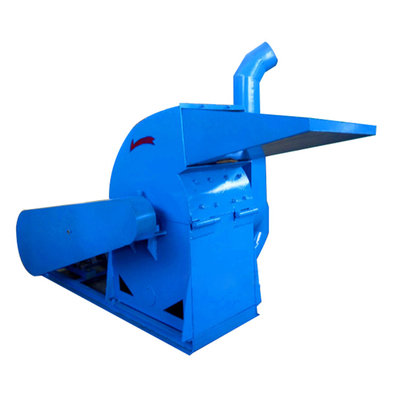

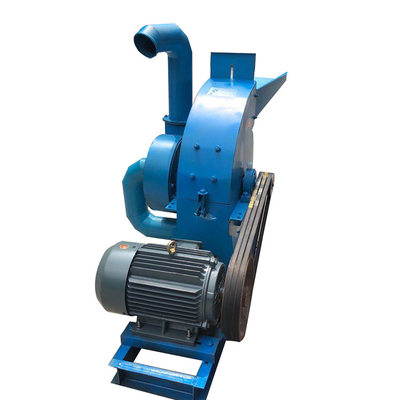

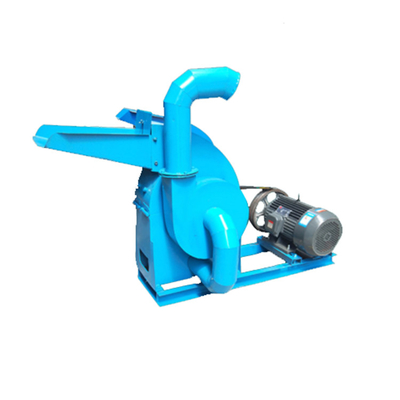

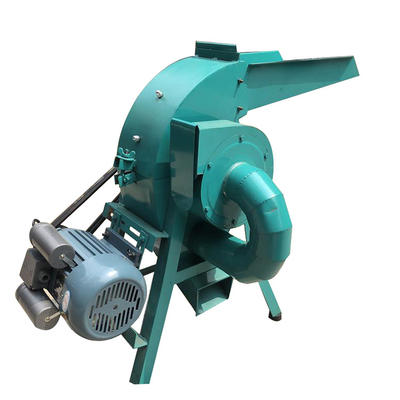

Wood Branch Hammer Mill Machine Crusher Wood Grinder Hammer Mill Crusher Machine
This series of hammer mills can crush all kinds of branches, bark, corn stalks, peanut shells, hay, cotton stalks, etc. This series of crushers has simple structure, high production efficiency, convenient operation, reliable use and easy maintenance; it is suitable for all kinds of users. In addition, this machine can also crush Chinese medicinal materials, quartz, coal, coal gangue, wood and other medical and industrial raw materials.
|9FQ-320||5.5 kw||300 -350||260||900 x 500 x 800|
|9FQ-420||7.5 kw||400 -500||350||1100 x 550 x 850|
|9FQ-500-28||15 kw||600 -800||450||1250 x 650 x 1000|
|9FQ-500-40||22 kw||900 -1000||750||1400 x 780 x 1250|
|9FQ-500-50||30 kw||1000- 1500||900||1600 x 850 x 1350|
|9FQ-500-60||37 kw||1500- 2000||1300||1750 x 900 x 1550|
Wood hammer mill working principle:
The wood hammer mill have 16pcs hammers attached on the rotating rotor, source materials are feed into the crushing chamber. the materials are milled by striking first against the rotating hammers and then against the liner.
If they are milled to the targeted size, then through the screen. If there are any larger-size particles that have failed to move through the screen, they go through the milling processes again.
The high efficiency wood hammer mill is applied for grinding many crude material: wood chips, small branches, rice husk, nut shell, corn, sorghum, grain, legumes, broken cake pellet and other materials, used in the wood pellet making plant and feed pellet making plant.
The size of the final products from the wood hammer mill is changeable from 2-12mm, through changing the sieve screener of the machine to make different size power material to meet customer requirement.
High Quality Hammer
Forged high-strength manganese steel is used for wear resistance, impact resistance and crushing strength
Optional Screen Mesh
A variety of sizes of screens are available, the screens can be replaced, and the thickness can be adjusted
Copper core motor
Strong power, good heat dissipation, durable, energy-saving
1. We will reply you within 12 hours if you have any inquiry about our products.
2. We provide 1 year guarantee.
3. We provide English manual and video for installation and operation.
4. Our technicians is available to serve abroad.
