Product Details:
|
| Name: | Feed Crusher And Grinder Agricultural Machine Grass Feed Processing Machine Hammer Mill Machine | Voltage: | 380V |
|---|---|---|---|
| Warranty: | 1 Year | Condition: | New |
| Type: | Hammer Mill | Capacity(t/h): | 100-1000kg/h |
| Dimension(L*W*H): | 1.66*1.2*1.77 | Weight: | 2900 Kg |
| High Light: | hammer mill grinder 1ton/ h,100Mpa small hammer mill grinder,hammer mill grinder 1.66*1.2*1.77m |
||

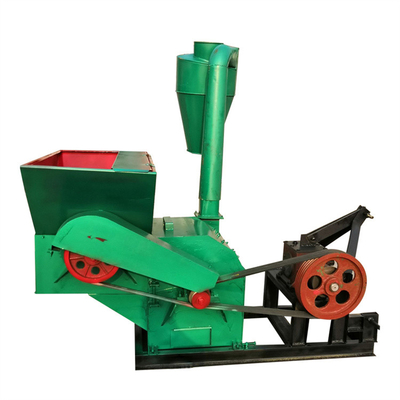

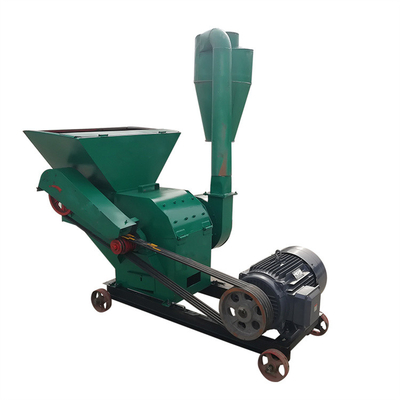

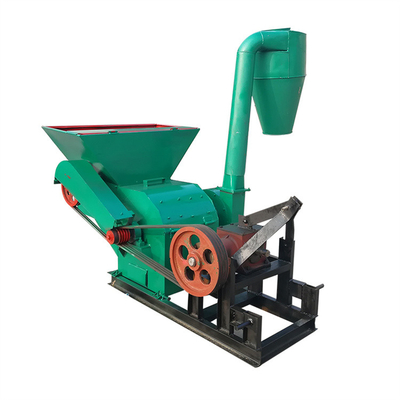

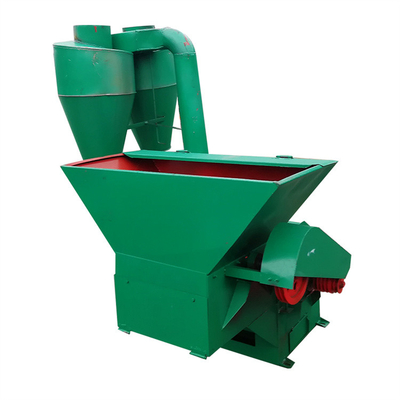

Feed Crusher And Grinder Agricultural Machine Grass Feed Processing Machine Hammer Mill Machine
Wood grinder is also called hammer crusher. It is suitable for the crushing of mid-hard and light erosive materials, whose pressure resistance strength is no more than 100Mpa and humidity lower than 15%, such as coal, salt, chalk, gypsum, blocks, limestone, etc. The hammer mill can be also used for crushing wood branches, chips, rice, straw, wheat straw, corn straw, grass, river reeds, palm husk, soybeans husk, coffee husk, paddy straw, sunflowers stalk, bamboo and other agro-waste etc.
Parameter of Hammer Mill Crusher :
| Model | Power (kw) | Capacity (kg/h) | Net/Gross Weight(kg) | Packing dimension(m³) |
| HM-I | 4 | 100-300 | 250/300 | 1.5*1*0.8=1.2 |
| HM-II | 7.5 | 400-500 | 350/400 | 1.7*1.2*1=2.04 |
| HM-III | 11 | 500-600 | 400/450 | 1.7*1.2*1=2.04 |
| HM-IV | 18.5 | 700-800 | 490/560 | 1.66*1.2*1.77=3.53 |
| HM-V | 22 | 1000 | 490/560 | 1.66*1.2*1.77=3.53 |
Work principle of Hammer Mill Crusher:
wood grinder is a kind of crusher shredding the material into fine particles. A hammer mill is essentially a steel drum containing a vertical or horizontal cross-shaped rotor on which pivoting hammers are mounted. The hammers are free to swing on the ends of the cross. The rotor spins at a high speed inside the drum crashing the material fed into the feed hopper. The material is impacted by the hammers on the ends of the rotating cross and thereby shredded and expelled through screens in the drum.
Advantages of Hammer Mill Crusher:
The use of Wood grinder can reduce environmental pollution, have a high utilization value, but also crusher in the faster, ideal, affordable a crushed wood equipment. Finished shape from the sawdust, granular to the sheet can be free to adjust the advantages and uses of wood grinder is also a lot.
1) Wood grinder (sawdust mill, wood shredder)Making fine
2) High processing technology, the use of double body, the body into the tap water to play a role in water.
3) Put into a new material, play a noise, cooling function.
4) Small noise in the production, no vibration. Crushed wood can be used to make wood chips and binder and even press the composite board, used to do decoration ceiling, noise insulation. Sawdust can be used to grow mushroom culture medium, can also be blended in the soil to do potted aquaculture "pots of soil", so that can make the use of wood crusher greatly increased.
Packing & Delivery
Packing: PE bag,foam pad,brown carton,or to customer's requirement.
Delivery: within 15 days after confirming the payment
FAQ
Q1: Are you manufacture or a trading company?
A1: We are manufacture ,we sincerely welcome you to visit our factory.
Q2: What's the MOQ? And how about the guarantee period?
A2: We provide sample orders to support every client who want to test our machines. The guarantee period is one year, and you can
also contact us once you meet any problems in the process of using the machine.
Q3: Do you accept OEM&ODM?
A3: Yes, OEM & ODM is also available, You can have your own color, logo and design, even we can design the logo, package box for you base on at least a 20ft container.
Q4: This machine is installed or not when pack it?
A4: The main body of the machine already installed when packing, you just only need to install some spare parts, it's quite simple and convenient.
