|Name:||Shisha Scrap Charcoal Briquette Machine Cube Compress Hard Wood Coal Production Machinewood Charcoal Briquette Machine Carbonizing Furnace For Carbonizing Sawdust Briquette||Type:||Carbonizing Furnace|
|Warranty:||12 Months||Voltage:||380V 50hz|
|Diameter Of Briquettes:||50~80mm Customized||Spare Parts:||Screw Propreller,mold Cyclinder|
80mm Charcoal Briquette Machine,
carbonizing furnace 300c,
High temperature briquette furnace
wood charcoal briquette machine carbonizing furnace for carbonizing sawdust briquette
The whole machine adopts the hoisting combination structure, and each equipment is equipped with three internal furnace devices. After the first furnace carbonization, the second furnace carbonization can be directly carried out with a tank crane without preheating, improving the carbonization efficiency. When the temperature of the continuous carbonization furnace exceeds 300℃, combustion gas will be generated. After centralized recovery, they are separately introduced into the furnace bottom.Circulating heating and burning can effectively reduce the use of fuel and reduce the cost. Each furnace can process about one ton of logs or about two tons of semi-finished wooden sticks, Each batch raw materials will carbonize about 6 hours.And the carbonization rate is very high, when the furnace temperature is up to 700°C,the carbon rate will be up to 92%. and three furnaces can be used continuously without downtime.
|Diameter of the product /mm||50||60||70||80|
Main part of the wood charcoal briquette carbonizing furnace machine for sawdust :

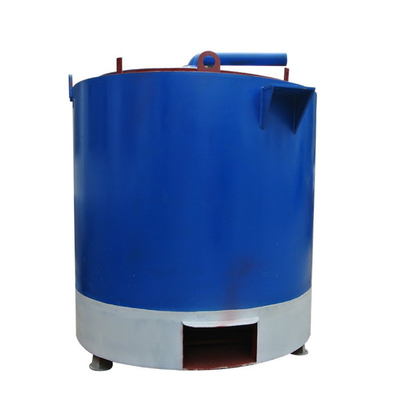

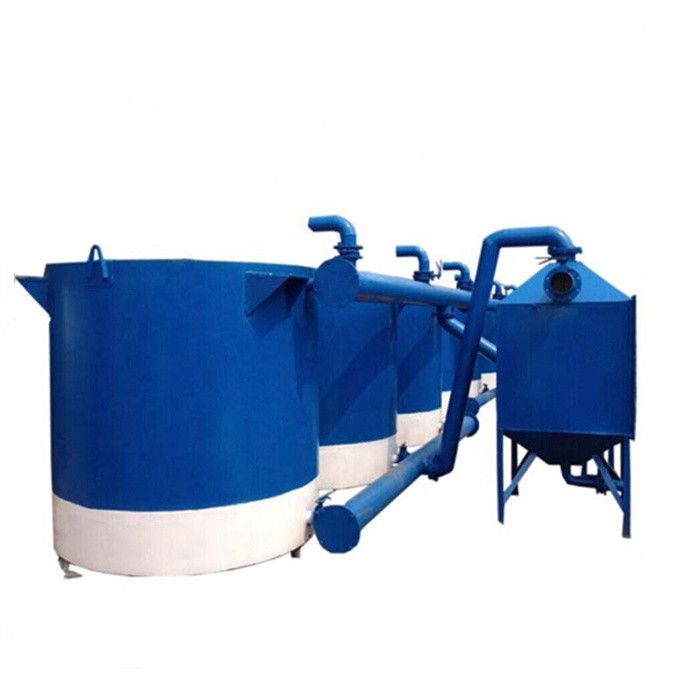

This type of machines include the outer stove, three set of inner stoves , purification tank, smoking recycle tube, hoisting equipment.

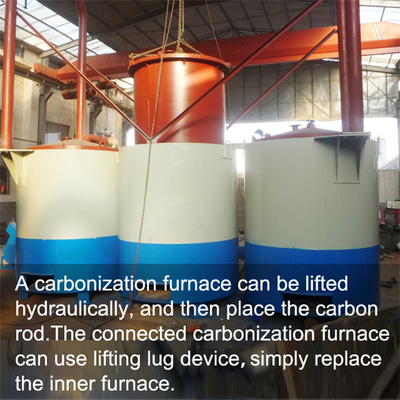

Hoisting equipment includes the steel hoisting frame and the E-hoist .And it is easy for loading and unloading the stove, and can reduce labor intensity, and it can avoid the high-temperature burn when lift the carbonization basket.
Working process of the wood charcoal briquette carbonizing furnace machine for sawdust
When one inner stove have been finished carbonization, we will use the hoisting tools to hoist the inner stove out of the outer stove, then put down the inner stove on earth for natural cooling,
at the same time, we can put another inner stove into the outer stove for the second
carbonization,which will save a lot of time, so the productivity increase a lot, it is the ideal
choice for mass production of charcoal.
Carbonizing time: 6-8hours
Cooling type: Natural cooling or forced cooling
Cooling time: 8-12hours(natural cooling)
The Main Features of the wood charcoal briquette carbonizing furnace
It adopts a movable steel plate structure, the exhaust pipe of the furnace at the top of turn connection with the tar separator and induced draft fan, with features of a unique structure, the big effective volume, advanced carbonization technology, short carbonization cycle, high output, good environmental conservation, long life etc.
Smoking recycle tube of the wood charcoal briquette carbonizing furnace machine:

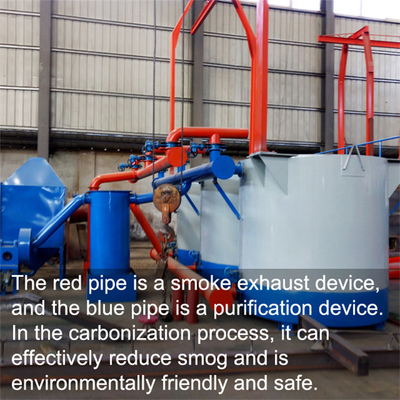

During the process of carbonizing, there will be some smoke which can burn, the smoke can return to the furnace through tube for purifying, after purification , the combustible smoking can be flow into the heating room of the outer stove for heating the stove again. And the smoke which can not burn will go through a smoke purification systerm and will become water vapor, and it will not pollute the air. Smoking purification system are used for purify the smoking (can not burning) and filter the wood tar. The wood tar will go out through a tube to be filled in a container.
Packing & Delivery
Packing of carbonization furnace
Inner packing: we can use plastic packing if the client needs
Outer packing: usually wooden case or the container
Delivery of carbonization furnace
Delivery method: by sea
Delivery time: within 15 days after receiving the deposit
