Product Details:
|
| Name: | Wood Sawdust Pellet Machine | ITEM: | Wood Biomass Pellet Machine |
|---|---|---|---|
| Weight (KG): | 2000 | Die: | Double Layer, Both Can Be Used |
| Driven Type: | Motor ,diesel Engine | Lubrication System:: | Use Recycling Lubrication Oil |
| Pellet Diameter: | 3~25 Mm (can Be Selecation) | Warranty: | 1 Year |
| Raw Material: | Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton | Die Material: | Stainless Steel 4Cr13 |
| Show Room: | Viet Nam, Indonesia | Key Selling: | Easy To Operate |
| Voltage: | Customized | Certificate: | CE ISO |

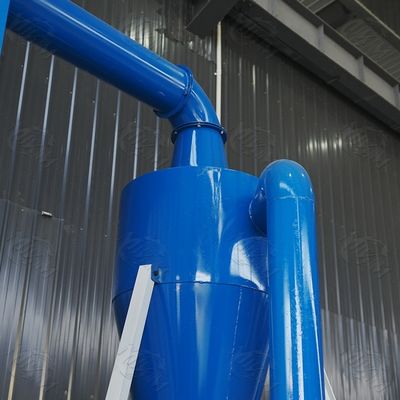

| Dust Remove System: | Cyclone And Bag Dust, To Remove The Dust | Capacity: | 800-1200kg/h |
| Application: | Machine Make Biomass Fuel Pellet | ||
| High Light: | alfalfa pellet making machine 55KW,Stainless Steel alfalfa pellet making machine,alfalfa pellet machine Ring die |
||
Alfalfa Pellet Making Machine Ring Die Vertical Feeding
Biomass pellet machine function will agricultural and forestry processing wastes such as sawdust, straw, rice husk, bark and other biomass as raw material, through the pretreatment and processing, the curing forming for high density of pellet fuel, is to replace the ideal fuel kerosene, both to save energy and reduce smoke emission, and economic benefit and social benefit. Is a kind of efficient, clean and renewable energy. Biomass particle machine is divided into flat mode biomass pellet machine and the ring mode biomass pellet machine.
Features:

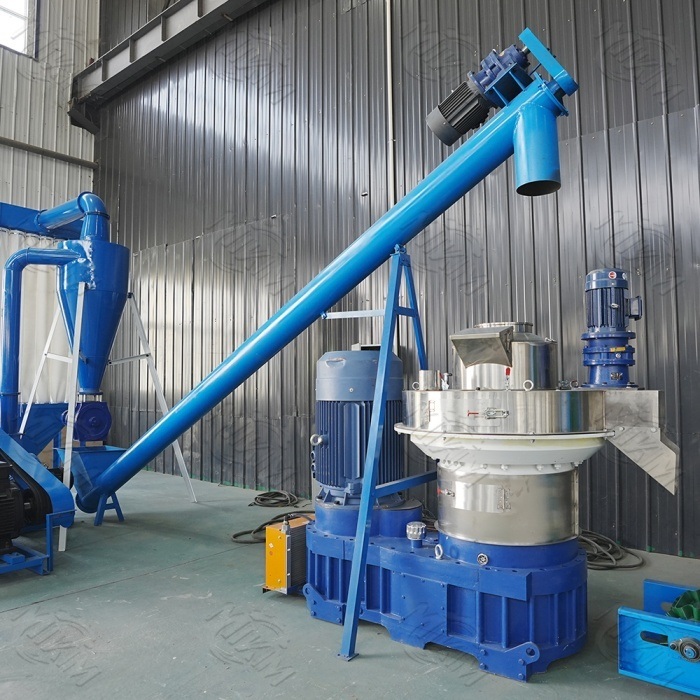

1.Vertical ring-die pellet making machines adopt vertical feeding method. The powdery material is fed into pelletizing chamber directly. The mold of the machine is still while the ring-die is rotating. Under the function of centrifugal force, the material will distribute evenly in the pelletizing chamber. The mold of a vertical pellet machine is not easily clogged. Thus, the service life of the mold is prolonged.
2.The main gear adopts high-accuracy gear drive and the bearing is made from high-quality alloy material. The pelletizing rate of vertical pellet making machine is up to 95%. It is applicable to large-scale pellet production line.
Main application
1. Civil heating and living energy: high fuel utilization, easy storage.
2. Biomass industrial boiler: as the main fuel for industrial boilers, instead of burning coal, to solve environmental pollution.
3. Power generation: can be used as fuel for thermal power generation.
Technical parameter
| Capacity (t/h) | Power(KW) | Processing specifications |
| 0.8-1.2 | 55 KW | φ4-12mm |
| 1.2-1.5 | 90 KW | φ4-15mm |
| 2.5-3.5 | 220 KW | φ4-20mm |
| 5-8 | 360 KW | φ4-30mm |
| 8-12 | 550 KW | φ4-30mm |
Biomass Wood Pellet Mill Quotation Details :
(1)Payment: 40% payment should be prepaid by telegraph transfer, the balanced 60% should be paid within 5(five) days after got the copy of B/L
(2)Delivery Time: 25- 30 days after receive the advance payment
(3)Price based on FOB Shanghai port,China Per Set
(4)Packing: Standard export packing by Fumigation-free wooden cases
(5)MOQ:1set
(6)Validity of Quotation: 2 months
(7) Warranty Period: 18 months except the spare parts
