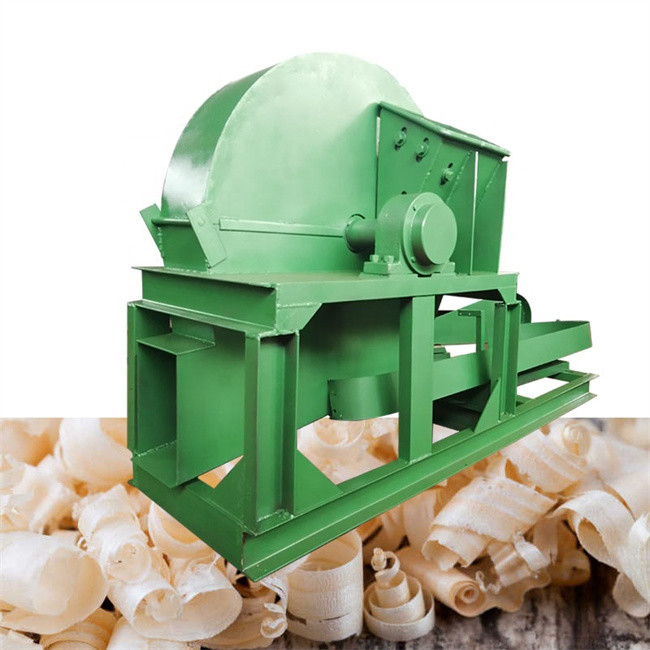

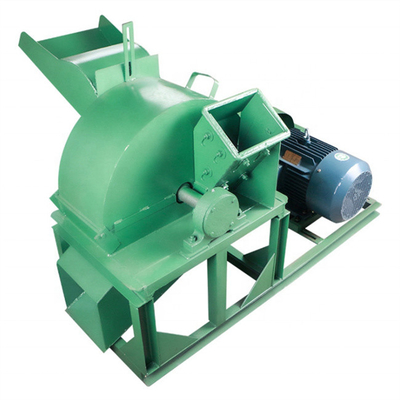

MIKIM Small Wood Chip Crusher Machine 2400r/ Min AC380V For Chicken Farming

I'm Online Chat Now

MIKIM Small Wood Chip Crusher Machine 2400r/ Min AC380V For Chicken Farming

MIKIM Small Wood Chip Crusher Machine 2400r/ Min AC380V For Chicken Farming
MIKIM Small Wood Chip Crusher Machine 2400r/ Min AC380V For Chicken Farming MIKIM Small Wood Chip Crusher Machine 2400r/ Min AC380V For Chicken Farming

Large Image :  MIKIM Small Wood Chip Crusher Machine 2400r/ Min AC380V For Chicken Farming

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: BS-420,BS-1000,BS-800,BS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $950.00 - 3900.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

MIKIM Small Wood Chip Crusher Machine 2400r/ Min AC380V For Chicken Farming

Description
Name: Small Type Wood Chipper For Animal Horse Bedding/Wood Chipping Machine/professional Wood Shaving Machine Power(w): 11-55kw
Weight: 500kg Voltage: 380v ,Customized
Blade Size(mm): 120*70*8 Capacity: 300-2000kg/h
Spindle Speed(r/min): 2400 Local Service Location:: Indonesia, Spain, Morocco
High Light:

MIKIM wood chip crusher

,

wood chip crusher 2400r/ min

,

AC380v small wood crusher machine

Small type Wood chipper for animal horse bedding/Wood chipping machine/professional wood shaving machine

This wood shaving machine is designed to produce wood shavings in desired and suitable size to be able to use them as bedding at chicken farming and horse breeding sectors.
There are all adjustment possibilities to get wood shavings in desired size and high quality.
Our machine designed to get good quality of wood shavings by shaving roundwood from 10 cm up to 45 cm diameter.
Chicken farming and horse breeding companies would also get a chance to produce their own wood shavings needs in desired quality, size, and amount with our shaving machine

Product Overview

Wood Shavings Machine

The wood shaving machine produced by our company is a new product that adopts new technology and then improves it according to the needs of wood shavings and the current status of wood. This wood shaving machine can process all kinds of wood (such as sticks, branches, logs, furniture scraps from furniture factories, waste wood branches, etc.) into batches of thin wood shavings with uniform thickness. The wood enters the machine through the feed port and is sliced by the blade inside the machine to punch the shavings. The size and thickness of the shavings are even, which is not much different from the wood shavings produced by the wood factory, it also saves time and labor. The use of wood shavings: it can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.

Featrues

  • Automatic running from start to ending
  • Containus running
  • Preventetive system for wood jamming
  • Shaving deepth can be adjusted
  • Two motor drive
  • UK safety standard

MIKIM Small Wood Chip Crusher Machine 2400r/ Min AC380V For Chicken Farming 0



Type Knives qty Input size(mm) Cutter dia(mm) Blade size(mm) Output(t/h) Spindle speed(r/min) Power(kw) Size(mm)
MFJ-420 4 160*155 424 90*60*8 0.8-1.5 2600 7.5-11 1200*550*750
MFJ-500 4 210*180 510 120*70*8 1.2-2.0 2400 18.5-22 1500*640*820
MFJ-600 4 235*200 600 150*70*8 1.8-2.5 2200 22-30 1600*700*1050
MFJ-700 4-6 230*200 600 180*70*8 2.5-3.5 2000 30-37 1850*830*1050
MFJ-900 8 280*290 750 150*100*10 5.5-6.5 1500 55-75 2000*870*1500
MFJ-1000 8 280*290 750 150*140*10 6-7 1500 75-6 1180*1100*940
MFJ-1200 8 390*385 1000 190*140*12 7-8.5 1200 90-6 1430*1500*1200
MFJ-1500 8 425*500 1160 230*140*14 9-11 1000 110-6 1650*1750*1400
MFJ-1800 12 530*560 1300 150*140*14 11.5-14 950 132-6 2050*1850*1620

Package

1.wood shaving machine will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.

2.Packaging details standard export wooden case or in container.

Our Services

Pre-Sales Service
1. Inquiry and consulting support. Sample testing support.
2. Sample testing support.
3. View our company

-Sale service
1. Instance guidance is available on the phone or email any time.
2. we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.

After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
3. Equipment warranty is 12 months, Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed.



Questions

FAQ

1. Are you manufacturer?

Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4. Warranty time of your machine?
1 year except for consumable spare parts.
5. How about delivery time of your machine?
Generally it needs 5-7 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
