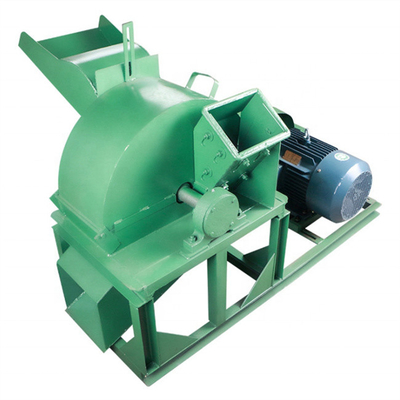

950R/ Min Animal Bedding Shaving Machine 2ton/ H Wood Chipper Machien 1.3m Dia

I'm Online Chat Now

950R/ Min Animal Bedding Shaving Machine 2ton/ H Wood Chipper Machien 1.3m Dia

950R/ Min Animal Bedding Shaving Machine 2ton/ H Wood Chipper Machien 1.3m Dia
950R/ Min Animal Bedding Shaving Machine 2ton/ H Wood Chipper Machien 1.3m Dia 950R/ Min Animal Bedding Shaving Machine 2ton/ H Wood Chipper Machien 1.3m Dia

Large Image :  950R/ Min Animal Bedding Shaving Machine 2ton/ H Wood Chipper Machien 1.3m Dia

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: BS-420,BS-1000,BS-800,BS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $950.00 - 3900.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

950R/ Min Animal Bedding Shaving Machine 2ton/ H Wood Chipper Machien 1.3m Dia

Description
Name: Manufacture Big Capacity Wood Shaving Machine Animal Bedding Sell Diesel Log 9 Inch Wood Chipper Power(w): 11-55kw
Type: MFJ-1800 Voltage: 380v ,Customized
Dimension(l*w*h): 1200*500*700mm Capacity: 300-2000kg/h
Knives Qty: 12 Local Service Location:: Indonesia, Spain, Morocco
High Light:

950R/ min animal bedding Shaving Machine

,

animal bedding Shaving Machine 2ton/ h

,

wood chipper machine 1.3m

Manufacture Big Capacity wood shaving machine animal bedding sell diesel log 9 inch wood chipper

The wood chipper is used for processing the round wood, wood logs, wood logs, big board and branches into wood chips, it is widely used in paper making, flake board, Medium density fiber and other industrial production. Compact structure, reasonable layout and easy installation, operation and maintenance convenience, high capacity. And the chip length can be adjusted freely in the stipulated range.
Our machine designed to get good quality of wood shavings by shaving roundwood from 10 cm up to 45 cm diameter.
Chicken farming and horse breeding companies would also get a chance to produce their own wood shavings needs in desired quality, size, and amount with our shaving machine.

950R/ Min Animal Bedding Shaving Machine 2ton/ H Wood Chipper Machien 1.3m Dia 0



Featrues

1,It is used for grinding of small wood blocks, chips before pelleting;

2,Multi grinding chamber to increase efficiency by 15%;

3,Multi grinding chamber to prolong service life of screen and beater;

4,Modified rotor to increase stability and avoid overheating from the bearing;

5,Modified screen locking device to make assembling &disassembling easily;

6,Unique structure design of door to absorb shake and reduce noise;

7,Modified design for grinding chamber to reduce airflow resistance and increase efficiency;

8,Depress barycenter of rotor to make more balanced and coarse and fine grinding can

be completed easily.

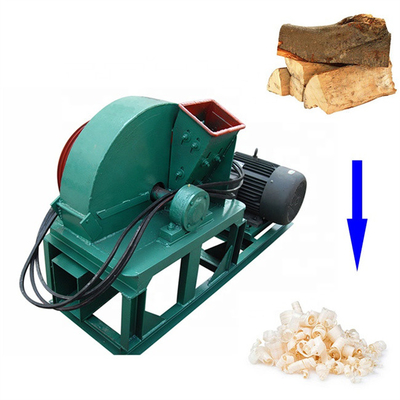

The wood shaving machine is mainly used for mass production of thin shavings with uniform thickness. The finished product is the same as the shavings produced by the wood factory. The wood shaving machine adjusts the size of the finished shavings by adjusting the blade angle and the screen diameter. To adapt to various needs.



The machine can process logs, branches, planks and other woods within 30 cm into wood shavings, divided into multiple models, with an output of 500-2000kg/h. It can meet different needs.



Type Knives qty Input size(mm) Cutter dia(mm) Blade size(mm) Output(t/h) Spindle speed(r/min) Power(kw) Size(mm)
MFJ-420 4 160*155 424 90*60*8 0.8-1.5 2600 7.5-11 1200*550*750
MFJ-500 4 210*180 510 120*70*8 1.2-2.0 2400 18.5-22 1500*640*820
MFJ-600 4 235*200 600 150*70*8 1.8-2.5 2200 22-30 1600*700*1050
MFJ-700 4-6 230*200 600 180*70*8 2.5-3.5 2000 30-37 1850*830*1050
MFJ-900 8 280*290 750 150*100*10 5.5-6.5 1500 55-75 2000*870*1500
MFJ-1000 8 280*290 750 150*140*10 6-7 1500 75-6 1180*1100*940
MFJ-1200 8 390*385 1000 190*140*12 7-8.5 1200 90-6 1430*1500*1200
MFJ-1500 8 425*500 1160 230*140*14 9-11 1000 110-6 1650*1750*1400
MFJ-1800 12 530*560 1300 150*140*14 11.5-14 950 132-6 2050*1850*1620
Questions

Q1:Before the equipment leaves the factory, we will provide you with these services:

1. We will conduct a comprehensive test on the machine, and there will be obvious safety warning slogans in the position of the main parts of the machine. Such as filling hydraulic oil, equipment rotation direction, etc.

2. After the machine is loaded into the container, all accessories will be packed into a wooden box, and the installation serial number and the shipping list will be marked.

3. The photos when the machine is loaded will be sent to you. And prepare installation video and safety manual for you while the equipment is working.

Q2:How long is your delivery time?
If there is stock, it usually takes 5-10 days. It takes 20-30 days to customize the equipment according to your requirements.
