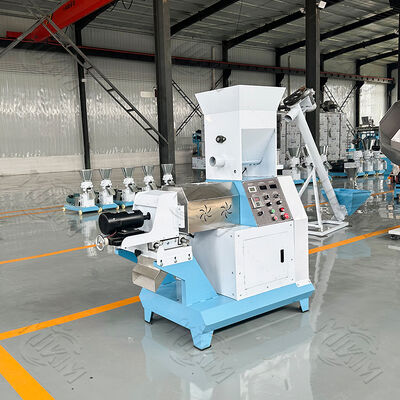

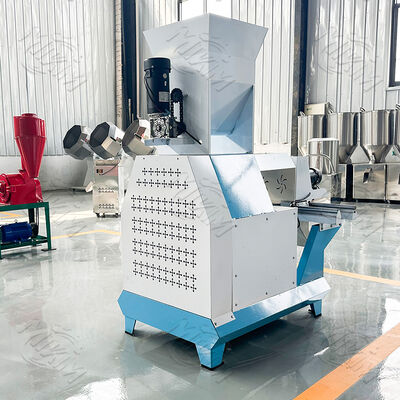

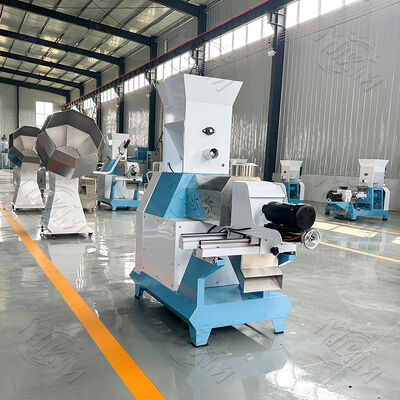

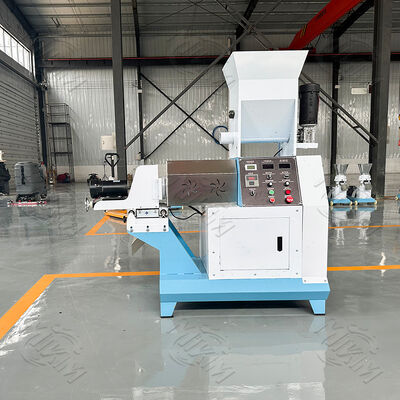

Main Structure of a Single-Screw Floating Fish Food Pellet Maker Machine
1. Feed Hopper
The feed hopper is the raw material inlet of the machine. Powdered or mixed materials are fed into the extrusion chamber through the hopper.
Functions:
- Stores raw materials temporarily
- Ensures continuous feeding
- Improves feeding stability
Advantages:
- Simple structure
- Easy cleaning and maintenance
- Reduces material blockage
2. Feed Motor
The feed motor controls the feeding speed of raw materials entering the extrusion chamber.
Functions:
- Provides stable material conveying
- Adjusts feeding quantity
- Helps maintain uniform extrusion pressure
Importance:
A stable feed motor helps improve pellet consistency and prevents uneven puffing.
3. Insulated Guard with Built-in Expansion Heater
The insulated guard contains the heating system used to raise the temperature inside the extrusion chamber.
Functions:
- Heats raw materials before extrusion
- Promotes starch gelatinization and material expansion
- Maintains stable processing temperature
Features:
- Thermal insulation design
- Energy-saving operation
- Stable heating performance
This component is critical for producing floating fish feed, pet food pellets, and expanded snack products.
4. Extrusion Chamber and Single Screw System
The single screw system is the core working part of the extruder machine.
Functions:
- Compresses raw materials
- Mixes and cooks materials under pressure
- Pushes materials toward the die outlet
Main Characteristics:
- Strong conveying ability
- Stable extrusion pressure
- Suitable for small and medium-scale production
The screw design directly influences pellet density, puffing effect, and production capacity.
5. Cutting Device
The cutting device is installed near the discharge outlet and is used to cut extruded pellets into uniform sizes.
Functions:
- Controls pellet length
- Improves pellet appearance
- Ensures uniform product size
Application:
Widely used in fish feed, pet food, poultry feed, and snack food production.
6. Cutter Motor
The cutter motor drives the cutting blades at adjustable speeds.
Functions:
- Controls cutting speed
- Improves cutting efficiency
- Produces smooth pellet surfaces
Benefits:
- Stable operation
- Low vibration
- High cutting precision
7. Adjustment Handwheel
The adjustment handwheel is used to adjust the cutter position and pellet length.
Functions:
- Adjusts cutting distance
- Controls final pellet size
- Improves production flexibility
Operators can easily produce pellets of different lengths according to customer requirements.
8. Cutter Slide
The cutter slide supports the movement and positioning of the cutting system.
Functions:
- Stabilizes cutter operation
- Reduces cutting deviation
- Improves cutting accuracy
This structure helps maintain smooth and continuous production.
9. Control Panel
The control panel is the central operating system of the machine.
Functions:
- Controls machine startup and shutdown
- Adjusts operating parameters
- Monitors machine running status
Common Controls:
- Temperature adjustment
- Motor control
- Emergency stop switch
- Speed regulation
A user-friendly control panel improves operational safety and production efficiency.
10. Outlet
The outlet is the discharge section where finished pellets are released after extrusion and cutting.
Functions:
- Smooth pellet discharge
- Reduces material accumulation
- Facilitates subsequent drying or cooling processes
Why Machine Structure Matters?
The structural design of a Single-Screw floating fish food extruder machine directly affects:
- Pellet expansion quality
- Production capacity
- Energy consumption
- Equipment durability
- Maintenance cost
A well-designed machine can improve production stability and reduce long-term operating costs.
Applications of Single-Screw Extruder Machines
Single-screw extruders are widely used for producing:
- Floating fish feed
- Sinking fish feed
- Dog food pellets
- Cat food pellets
- Poultry feed
- Corn puff snacks
- Biomass extrusion products
