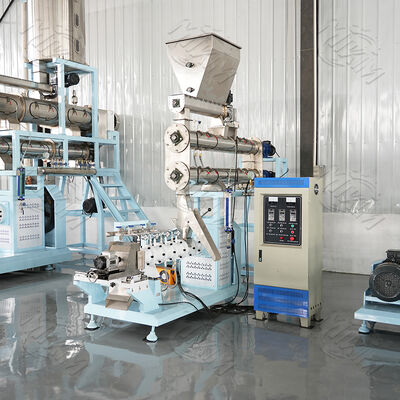

Twin screw floating fish feed pellet extruder machine Wet Type Pellet Floating Feed Steam Home Use Plant Manufacturer Core Pump Gear Bearing

Basic Properties
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: 65,70,75,85,95,120,136
Trading Properties
Minimum Order Quantity: 1 Set
Price: $1500.00 - 20000.00/ Set
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 300 sets per month
Tags

small electric fish feed extruder machine

fish feed extruder machine 70mm dia

18.5kw fish food extruder machine
Specifications
Material: Stainless Steel Spare Parts: Mold ,offer 5 Pcs For Each Machine
Output: 120-150kg/h Productname: Fish Feed Pellet Machine
Raw Material: Corn, Wheat, Etc. Control System: Automatic
Widely Exported To: Nigria ,Ghana,south Africa Etc Pellet Size: 0.5-15mm
Oil Seal: Made In Germany Feature: Floating
Power Supply: 380v/220v Or Customized
Product Description
Twin Screw Floating Fish Feed Pellet Extruder Machine
Wet Type Pellet Floating Feed Steam Home Use Plant Manufacturer Core Pump Gear Bearing
Product Overview
Advanced wet-type fish feed pellet processing machine designed for efficient production of high-quality floating fish feed.
Key Features
  • Internally advanced pelletizing structure with soft knife fitting for stepless speed change and burr-free cutting
  • Novel design with simple structure for easy installation, disassembly, and operation
  • Special wear-resistant, high-temperature alloy steel screw sleeve and screw with heat treatment for extended lifespan
  • Unique booster die device ensures consistent feed output and quality with electric heating for improved expansion rate
  • High-quality Y series three-phase main motor for reliable, powerful performance
  • Speed-adjusting feeding device for uniform feeding and prevention of machine blockage
  • Easy-to-replace discharge templates for producing feeds with different aperture sizes
  • Split screw structure design for easier cleaning and replacement
Product Benefits
Produces floating pellet feed that remains on water surface for over 12 hours without dispersion. Fish and livestock readily consume and easily digest the feed, allowing clear observation of feeding patterns while preventing waste and water pollution. High temperature and pressure processing eliminates harmful bacteria like Escherichia coli and Salmonella, ensuring feed hygiene and promoting protein denaturation and starch gelatinization for better nutrient absorption. Typically saves 8%-15% of feed compared to powdered or granular alternatives.
Twin screw floating fish feed pellet extruder machine
Production System Components
Automatic Batching System
Raw materials batching system with PLC control for precise ingredient receiving, stocking, and discharging operations.
Automatic batching system for fish feed production
Raw Materials Milling System
Integrated dust collection system for environmentally friendly crushing of mixed ingredients into powder form.
Raw materials milling system with dust collection
Secondary Mixing System
PLC-controlled blending system with buffer hopper for continuous supply of mixed ingredients to subsequent equipment.
Secondary mixing system with buffer hopper
Extruding System
Includes preconditioner with steam, liquid, and oil inlets and extruder with double shaft modular screw design.
Extruding system with preconditioner and extruder
Drying System
Multi-layer recirculating oven with hot air circulation and dehumidification for efficient drying in compact space.
Multi-layer recirculating drying system
Grease Coating System
Automated coating system for precise application of grease, attractants, and flavors with controlled adding amounts.
Grease coating system for fish feed
Cooling System
Counter flow cooler reduces product temperature to room temperature before packaging.
Counter flow cooling system
Packing System
Automated weighing and packaging into various bag sizes with sewing sealing, thermal sealing, or combination sealing options.
Raw Material Formulations
Raw Materials Small Fish Formula (Protein: 34-36%) Medium Fish Formula (Protein: 30%) Medium Fish Formula (Protein: 30%)
Corn Powder 30% 30% 35%
Fish Powder 20% 15% 15%
Rice Bran 5% 10% 10%
Soya Bean Meal 30% 25% 20%
Bone Powder 2% 2% 2%
Wheat Bran Powder 13% 18% 18%
Water 25% 25% 25%
Technical Specifications
Floating feed extruder technical specifications Pet food machine performance parameters Equipment dimensional specifications Production capacity and power requirements Machine operational parameters Technical data sheet Complete system specifications
