Pet Feed Production Line equipped with pellet mill grinding mill and extruder to produce sinking and floating animal feed pellets

Large Image : Pet Feed Production Line equipped with pellet mill grinding mill and extruder to produce sinking and floating animal feed pellets

Product Details:

Place of Origin:	China
Brand Name:	MIKIM
Certification:	CE
Model Number:	DGP-40,DGP-60,DGP-70,DGP-85,DGP-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$1500.00 - 9500.00/ Set
Packaging Details:	packed by wooden export package or loading by container
Delivery Time:	7-10 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Pet Feed Production Line equipped with pellet mill grinding mill and extruder to produce sinking and floating animal feed pellets

Description

Energy:	Electricity	Pelletdiameter:	2-10 Mm
Machinematerial:	Stainless Steel And Carbon Steel	Capacity:	1-10 Tons Per Hour
Productname:	Pet Feed Production Line	Warranty:	1 Year
Controlsystem:	PLC Control System
Highlight:	fish feed pellet machine with extruder , sinking floating feed pellet production line , pet feed pellet mill grinding machine

Pet Feed Production Line

Farm floating fish feed, poultry, pet dogs, cats, chickens, animal food pellet extruder, pellet mill, grinding mill equipment

Animal feed extruders are specialized equipment with dual functions of "extrusion + simple puffing." They can process mixed raw materials into 1-10mm sinking, semi-floating, or floating pellets, depending on the water depth in which fish inhabit. By adjusting the temperature (60-160℃) and pressure (3-12MPa), they can be adapted to the feeding habits of different aquatic animals. Production capacity is generally 0.5-2 tons/hour.

Product Parameters

Model	DGP-40	DGP-60	DGP-70	DGP-85	DGP-90
Capacity(kg/h)	40-50	120-150	200-250	300-350	400-450
Main motor(HP)	12	25	30	35	50
Feeder motor(kw)	0.4	0.4	0.4	1.5	1.5
Cutter motor(kw)	0.4	0.4	0.4	0.55	0.55
Screw diameter(mm)	φ40	φ60	φ70	φ80	φ90
Machine size(m)	1.4 * 1.25 * 1.2	1.47 * 1.12 * 1.25	2.05 * 1.4 * 1.3	2.15 * 1.5 * 1.3	2.2 * 2 * 1.35
Weight(kg)	360	560	740	850	1200

Application Scenarios

Multi-species fishponds (e.g., grass carp + bass + shrimp polyculture)
Specialty aquaculture farms (raising bass, koi, shrimp, etc., species requiring feed buoyancy)
Medium-sized aquatic feed mills (undertaking specialty aquaculture orders within the region)

Core Advantages

Dual-purpose (floating and sinking): The fish feed pellet extruder allows for easy switching between feed types by changing the mold and adjusting parameters (sinking feed: low temperature, low pressure; floating feed: high temperature, high pressure), eliminating the need to purchase separate sinking and floating feed machines.
Suitable for specific fish species: The fish food extruder machine supports 1-2mm micro-particles (for shrimp and fish fry) and 8-10mm large particles (for adult fish), meeting the needs of different growth stages.
High water resistance: The pellets processed by the floating feed extruder machine are gelatinized at high temperature. Sinking feed can withstand soaking for 1.5-2 hours, and floating feed can withstand soaking for 2-4 hours, reducing feed waste and water pollution.

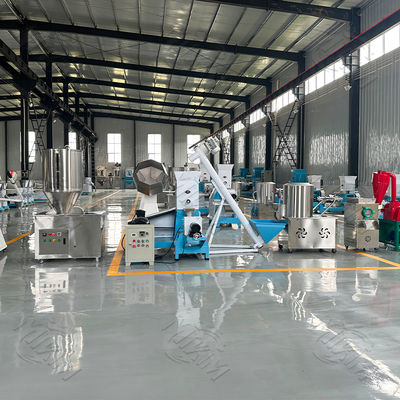

Finished Product Display

Pet Feed Production Line equipped with pellet mill grinding mill and extruder to produce sinking and floating animal feed pellets 4
