Home ProductsPoultry Feed Pellet Machine

Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate.

I'm Online Chat Now

Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate.

Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate.
Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate. Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate. Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate. Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate.

Large Image :  Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate.

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: feed pellet production line
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000USD
Packaging Details: Standard export packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100t/h

Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate.

Description
Features: High Efficiency, Low Noise, Easy Operation Color: Blue, Light Green Or Customized, Customer's Request, Natural, As Client Requirements
Raw Material: Wheat Bran, Maize, Widely, Soybean, Straw Production: 1-100 Tons
Type: One Stop Solution Animal Feed Pellet Machine, Animal Feed Processing Machinery Scale: Small, Medium And Large Farms
Highlight:

fully automatic feed pellet machine

,

low energy consumption pellet production line

,

poultry feed pellet equipment with warranty

Fully Automatic Feed Pellet Production Line Equipment

Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate.

Feed Pellet Production Process

The quality and handling of raw materials directly impact the production efficiency of the equipment. Common problems include uneven moisture content and inconsistent particle size.

  • Controlling raw material moisture: Appropriate moisture content facilitates feed forming; too much or too little reduces efficiency. A moisture regulator can be added to ensure consistent raw material moisture.
  • Pre-treating raw materials: This includes screening to remove oversized or hard particles to ensure uniform raw material entering the equipment. This reduces the risk of equipment blockage and damage.
  • Proper mixing: Adjust the ratio of different raw materials to achieve the desired mixing effect. A proper mixing ratio makes raw materials easier to form and reduces energy consumption.
  • Using additives: Adding appropriate amounts of binders or lubricants can improve raw material flow and forming quality, thereby increasing production efficiency.
Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate. 0
Technical Specifications
Capacity 1-100t/h
Range of application Large commercial feed factory, could make chicken, sheep, cow, shrimp feed
Workers requirements 4-5 people
Shipment requirements 6×40ft container
Product advantages Fully automatic intelligent batching, computer control system with stable output, efficient and continuous operation, labor saving, direct packaging, particle size can be selected from 1-12mm.
Size for whole line According to land size and layout
Equipment Components

Raw material preparation is the foundation of the entire production process. This equipment primarily includes:

Crushers: Used to crush raw materials such as corn, soybeans, and grains into a suitable particle size for subsequent processing. Equipment types include roller crushers and hammer crushers.
Screeners: Ensure uniform particle size after crushing, remove oversized and undersized impurities, and ensure stable production.
Mixing Equipment: Uniformly blends different raw materials, providing a foundation for subsequent blending and forming.
Extruders or Pelletizers: Press the mixed raw materials into pellets, improving storage and usability.
Dryers: Remove moisture from feed, prevent mold, and extend shelf life.

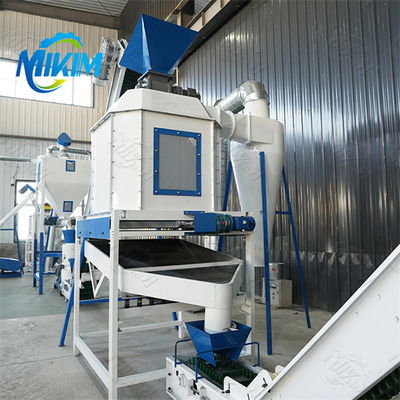

Coolers: Reduce the temperature of feed pellets to prevent deformation and clumping.
Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate. 1
Service and Support
  • We can build all kinds of fully automatic feed production lines.
  • Customize turnkey production lines according to your needs.
  • We have experienced technical experts to provide you with first-class technology and equipment.
  • We have perfect after-sales service and provide professional and systematic training to maximize the needs of the project.
Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate. 2
Certificate of Honor
Reasonably designed fully automatic feed pellet production line equipment, high quality, low energy consumption and low failure rate. 3
