Large-scale fully automatic feed pellet production line suitable for poultry farms

Large Image : Large-scale fully automatic feed pellet production line suitable for poultry farms

Product Details:

Place of Origin:	China
Brand Name:	MIKIM
Certification:	CE
Model Number:	feed pellet production line

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10000USD
Packaging Details:	Standard export packing
Delivery Time:	5-8work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100t/h

Contact Now

Large-scale fully automatic feed pellet production line suitable for poultry farms

Description

Features:	High Efficiency, Low Noise, Easy Operation	Applicable Industries:	Manufacturing Plant, Farms, Home Use
Production:	1-100 Tons	Type:	One Stop Solution Animal Feed Pellet Machine, Animal Feed Processing Machinery
Raw Material:	Wheat Bran, Maize, Widely, Soybean, Straw	Function:	Aniaml Feed Puffed Pellet Machine, Producing Animal Feeds Pellets
Highlight:	fully automatic feed pellet machine , poultry farm pellet production line , large-scale feed pellet equipment

Large-scale Fully Automatic Feed Pellet Production Line for Poultry Farms

The feed pellet machine is mainly composed of feeder, modulator, pelleting machine, lubrication system etc. The operation procedure requires the degree of the material mixed with powder should be not over 15 %. The material enters into the feeding auger through the stock bin. By adjusting the step-less speed regulating motor to change the speed, the material can flow moderately. Then the tempering begins through the paddle agitator mixing with the steam. After the tempering, the temperature of the material can be 64¡æ to 84¡æ, and the humidity can be 14% to 16%. At last, the material enters into the pressing box to be pelletized through the chute.

Technical Specifications

Capacity	1-100t/h
Range of Application	Large commercial feed factory, suitable for chicken, sheep, cow, and shrimp feed
Workers Requirements	4-5 people
Shipment Requirements	6×40ft container
Size for Whole Line	Customizable according to land size and layout

Product Advantages

Fully automatic intelligent batching
Computer control system with stable output
Efficient and continuous operation
Labor saving design

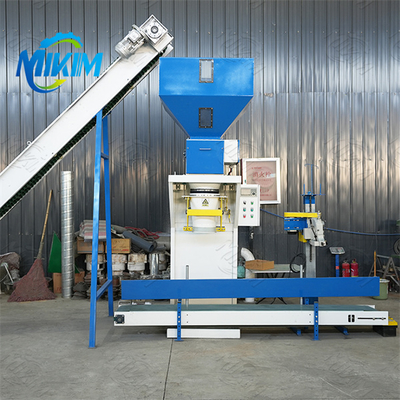

Direct packaging capability
Adjustable particle size from 1-12mm

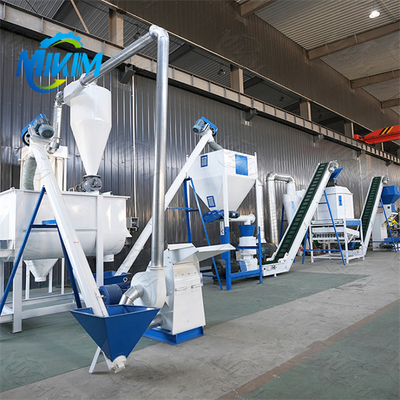

Production Process

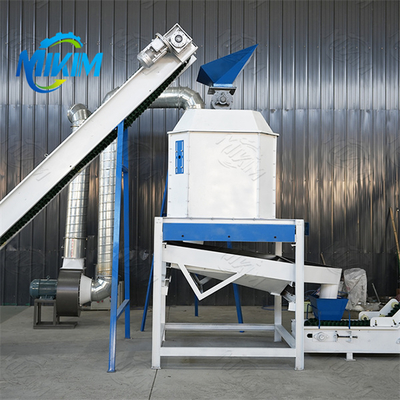

The raw materials are first conveyed by a conveyor to a screening machine for preliminary screening. Next, a standard dryer dries the raw materials to remove moisture (this step can be omitted if the raw materials have an appropriate moisture content). The dried raw materials are conveyed by an elevator to a scraper conveyor and then to a pelletizing bin. The pelletizer then forms pellets, which are then discharged via a pellet delivery conveyor (skirt belt conveyor). Finally, the pellets are cooled in a cooler before being packaged.

Auxiliary Equipment

The production process requires an electronic control system, along with a main unit cooling system and a cooler air grid to ensure stable operation. Furthermore, to ensure product quality, an iron removal system is installed to remove impurities from the raw materials.
