Product Details:
|
| Name: | Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine | Type: | Screw Briquetting Charcoal Briquette Machine |
|---|---|---|---|
| Warranty: | 12 Months | Capacity: | 400-500kg/h |
| Dimension(l*w*h): | 1.9*0.6*1.6m | Weight: | 600 KG |
| High Light: | Screw Briquetting Charcoal Briquette Machine,Screw Briquetting Rod Making Machine,Charcoal Briquette Machine Fully Automated |
||

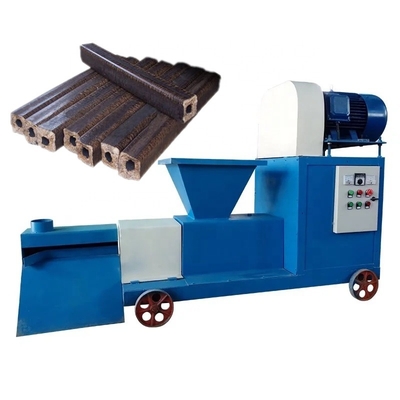

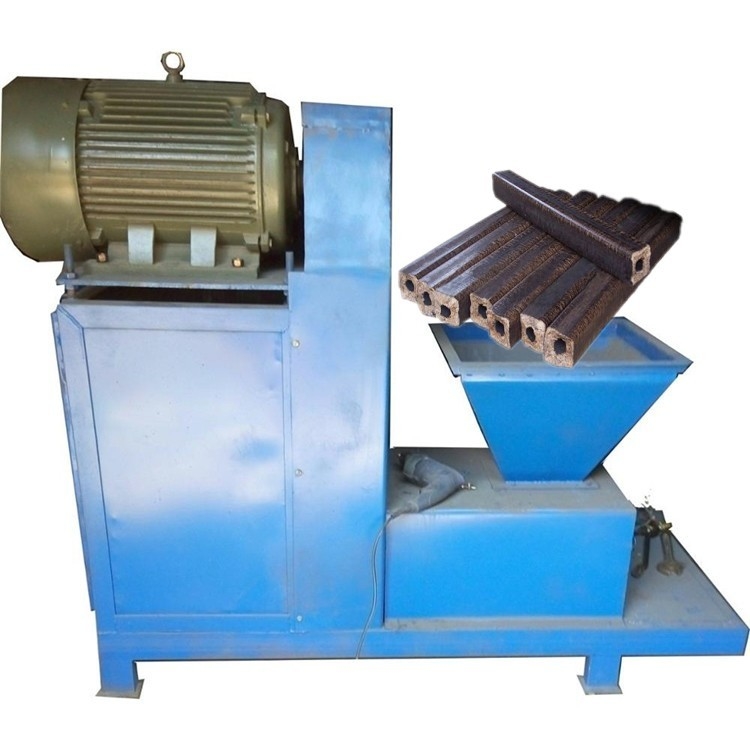

Low Investment Charcoal Briquette Machine Carbon Rod Making Machine Screw Sawdust Briquette Charcoal
The rod making machine is made of sawdust, crop straw (corn straw, soybean straw, sorghum stalk, cotton stalk, rape stalk, peanut seedling, sunflower stalk), rice husk, grass, shrub branches, bamboo and wood cut ends, feed heads, sugarcane Slag and other raw materials are used as raw materials. After being pulverized by a sawdust pulverizer, a high temperature and high pressure zone is formed under the action of a screw propeller and a heating ring, and the loose raw materials are processed into hollow rods. The product has high density, small size and good flammability, and can replace fuelwood and coal. Generally, the outer diameter of the product is 50-60mm, the hole diameter is 15-20mm, and it is a hollow quadrangular or hexagonal column. Can also be made into spherical, granular, honeycomb shape.
| Model | Power (kw) |
Coal Capacity(t/h) | Charcoal capacity(kg/h) | Weight (kg) |
Dimension (mm) |
| MBJ140 | 11 | 1000-2000 | 400-600 | 700 | 2000*1000*1100 |
| MBJ180 | 18.5 | 2000-3000 | 800-1000 | 900 | 2400*1500*1700 |
Rod making machine uses and characteristics
1. This product has the characteristics of reasonable design, reliable manufacturing quality, simple structure, convenient operation, small size, less land occupation, labor saving and power saving.
2. The designed fully automatic control electric heating device can randomly adjust the dry and humidity of the material to ensure the stability of the discharging and forming, and improve the work efficiency.
3. The main parts of this product are made of wear-resistant materials after special treatment, so it can be continuously pressed and produced and durable.
4. It is suitable for pressing and molding of various biomass raw materials, with low energy consumption and high production efficiency
