Product Details:
|
| Name: | Animal Breeding Foodstuff Extruder Press Pet Food Pellet Processing Machine Pet Food Making Machine | Type: | Feed Pellet Machine |
|---|---|---|---|
| Voltage: | 380V | Dimension(L*W*H): | 1470*1120*840mm |
| Weight: | 300 Kg | Warranty: | 1 Year |
| Widely Exported To: | USA | Product Name: | Fish Feed Production Line |
| High Light: | CE Pet Food Making Machine,Fish Feed Production Machine Wear Resistance,Pet Food Making Machine Wear Resistance |
||
Small Animal Pet Food Making Extruder Floating Fish Feed Pellet Machine
Factory sale dry dog food pet feed machine/chicken cow cat fish bird bird feed pellet making machine/pet food processing machine

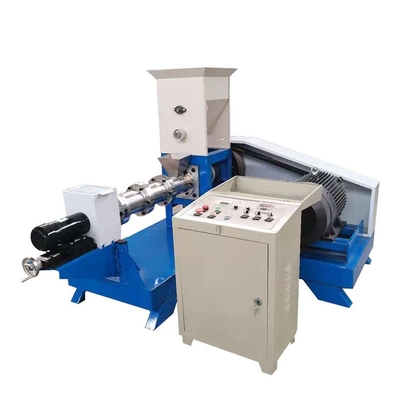

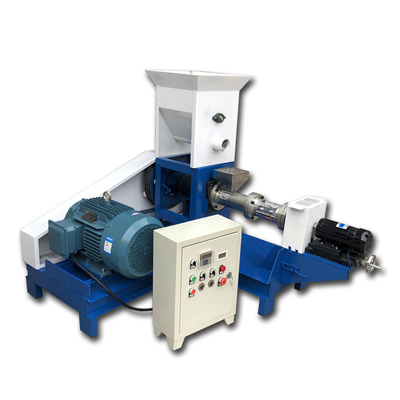

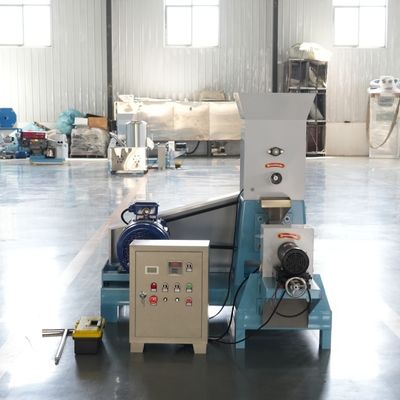

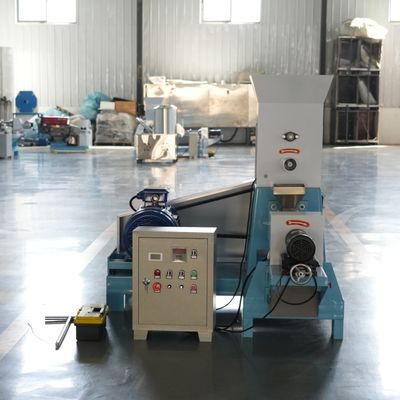

This machine is pellet feed extruder. Cat food, dog food and other pet feed extruder. It can produce a variety of flower shapes, and molds can be customized according to requirements.
The product outlet is equipped with a frequency conversion speed rotary cutting device, which can adjust the blade rotation speed at will to control the cutting speed and length.
This product has novel design, high output and stable operation. The main parts are made of alloy materials after heat treatment, and have the characteristics of high wear resistance and long service life.
| Model | Productivity(t/h) | Main angine power(kw) | Feeding power(kw) | Spiral diameter(mm) | Cutting power(kw) |
| QT-D40 | 0.04-0.05 | 5.5-5.7 | 0.4 | Φ40 | 0.4 |
| QT-D60 | 0.10-0.12 | 15 | 0.4 | Φ60 | 0.4 |
| QT-D70 | 0.18-0.20 | 18.5 | 0.4 | Φ70 | 0.4 |
| QT-D80 | 0.25-0.30 | 22 | 0.4 | Φ80 | 0.4 |
| QT-D90 | 0.4 | 30 | 0.75 | Φ90 | 1.5 |
| QT-D100 | 0.5 | 37 | 0.75 | Φ100 | 1.5 |
(1)The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
(2)The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life.
(3)In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.
(4)The main bearing is from Japanese and Sweden bearing to ensure its safety. The main motor is Y-Series three phrase industrial pure coppermotor.
(5)The floating pellets will float on the water for about 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.
