Product Details:
|
| Name: | Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine | Capacity: | 260-350kg/h |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 500 KG |
| Diameter Of Final: | 50-80mm | Voltage: | 380v |
| High Light: | 80mm Briquette Extruder Press Making Machine,Wood Charcoal Sawdust Briquette Extruder |
||

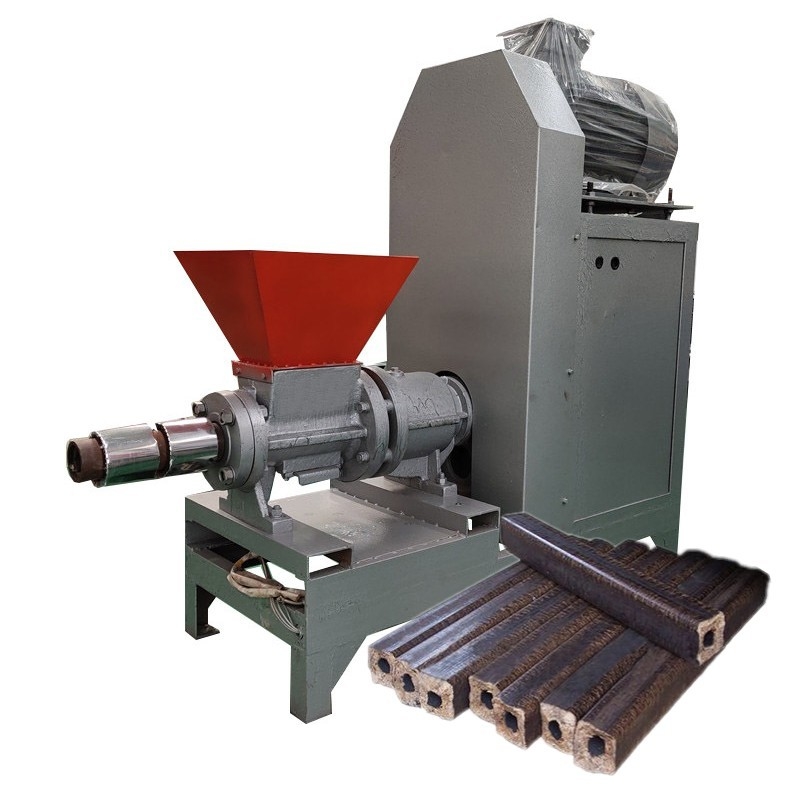

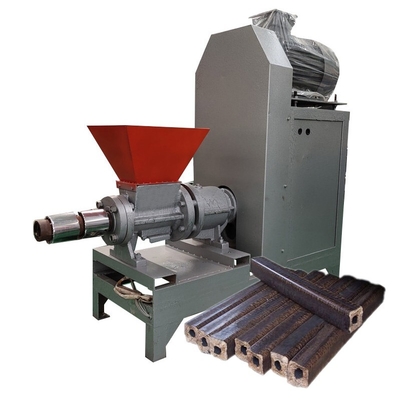

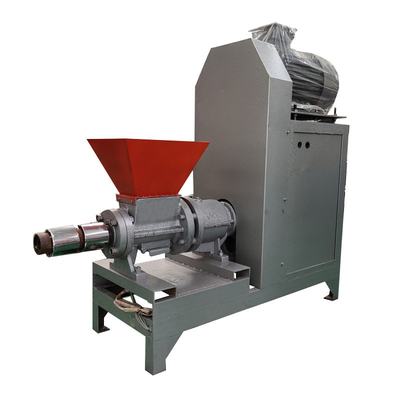

Wood Charcoal Sawdust Briquette Extruder Press Making Machine
Charcoal making machine is belong to environmental protection machinery. High production and low loss, using the raw material of wood sawdust, peanut shell,corn cob, bagasse, cotton stalk, corn stalks, rice hull, miscellaneous branches etc shattered into granular.
Within 3 to 5 mm by sawdust crusher; then the dryer dry material till water content is within 12%; through high temperature, high pressure of molding (do not add any additives) of the bar machine to the process of carbonization of coking furnace, then finished product of charcoal formed.
Features of the machine
1. Widespread and common raw materials
2. Wide application:
3. High density, small volume,good flammability;
4. Energy saving,no smoke,no additive,environment friendly.
| Model | UT -18 UT-48 | |
| Applicable materials | charcoal powders, coal powders, sawdust, any powders form Materials | |
| Capacity | 11-12 pieces / time;20-22 times/min | 48 Pieces per Time (30 mm);8-12 times/min |
| Motor | 7.5 kw (4 pole) | 18.5kw (4 pole) |
| Diameter of briquettes |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
| Feeding materials | < 3 mm | < 3 mm |
| Briquettes shape |
Round shape and Cubic shape Or as customers’ request |
Round shape and Cubic shape Or as customers’ request |
| Pressure | 40-60tons(adjustable) | 40-150tons |
| Press type | Mechanical Press | Hydraulic Press |
| Overall size | 2500x 950x1550 mm(includes conveyor) | 3500*2000*1800mm(includes conveyor) |
| Packing size | 1500x1200x1750 mm | 2100*2100*1900mm |
| Weight | 1500 KG | 5500kg |
Related machines:
1) Wood crusher: Wood crusher is used to crush straw, leaves, fruit shell, tree branches, wood sawdust, wood chips, etc. into fine powder whose dimension less than 3mm.
2) Dryer: Dry biomass powder to make sure the powder's humidity less than 12%.
3) Wood briquette machine: Use screw biomass briquette machine to shape biomass
powder into briquettes.Sugarcane firewood sawdust rice husk charcoal briquette press charcoal making machine
4) Carbonization furnace: If you want to make briquette charcoal , we need carbonization furnace to burn biomass briquettes into charcoal briquettes.
