Product Details:
|
| Name: | Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine | Type: | Screw Briquetting Charcoal Briquette Machine |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 520 KG |
| Dimension(l*w*h): | 2*0.8*1.16m | Voltage: | 380v |
| High Light: | Sawdust Briquette Compression Machine,380v Briquette Compression Machine,Charcoal Briquette Making Machine |
||

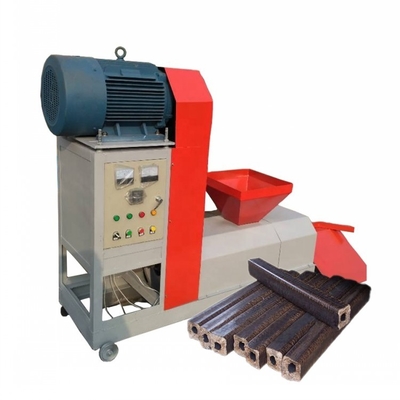

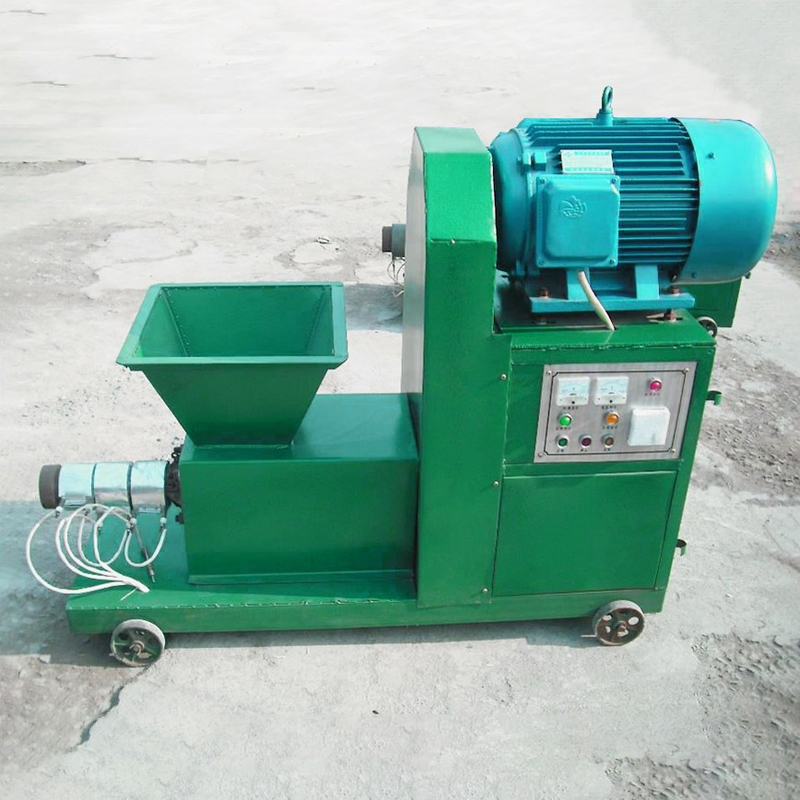

Sawdust Briquette Compression Machine Small Wood Sawdust Charcoal Briquette Making Machine
This is sawdust briquette making machine.Machine adopt good quality carbon steel,the service life over 10 years.The material can be various biomass,like palm kernel,peanut shell,branch,logs,ect.The material size must less 5mm.If material too big,we will recommend you crusher according to your requirement.Besides the material size must less 5mm,the moisture of material should be 12%.Too wet or too dry will cause bad forming effect.If your material moisture over 12%,we have sawdust drying machine.After crushing,the material was delivery to drying machine,then it was sent to forming machine.
| Model | Power | Capacity | Dimension |
| SL-50 | 15 kw | 220 kg/h | 1800*700*1500 mm |
| SL-60 | 18.5 kw | 250 kg/h | 1700*700*1600 mm |
| SL-70 | 22 kw | 300 kg/h | 1850*800*1700 mm |
| SL-80 | 30 kw | 400 kg/h | 2100*900*1700 mm |
Raw material:
Peanut shell,Rice husk,Sawdust,Little branch,Corn cob,Bagasse,Leaves,Logs,Palm kernel,Nuts shell,Straw,Bamboo,Cotton stalk,ect.If you unsure material is ok,please send to us,will offer free test service for you.
The work principle of this machine is sawdust was putted into machine,the screw will push material into sleeve.After high temperature and high pressure, the raw materials are extruded into different shapes.
