Stainless Steel Full Automatic Cnc Lamb Roll Bacon Slicer Frozen Meat Slicing

I'm Online Chat Now

Stainless Steel Full Automatic Cnc Lamb Roll Bacon Slicer Frozen Meat Slicing

Stainless Steel Full Automatic Cnc Lamb Roll Bacon Slicer Frozen Meat Slicing
Stainless Steel Full Automatic Cnc Lamb Roll Bacon Slicer Frozen Meat Slicing Stainless Steel Full Automatic Cnc Lamb Roll Bacon Slicer Frozen Meat Slicing

Large Image :  Stainless Steel Full Automatic Cnc Lamb Roll Bacon Slicer Frozen Meat Slicing

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: HC-MS200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $1450.00 / Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Stainless Steel Full Automatic Cnc Lamb Roll Bacon Slicer Frozen Meat Slicing

Description
Name: Automatic Frozen Meat Slicing Machine Meat Slicer Sausage Bacon Beef Mutton Meat Processing Machine Condition: New
Capacity: 50-70kg/h Weight: 220 KG
Dimension(l*w*h): 1200*400*1300mm Power: 2.2kw
High Light:

Cnc Lamb Roll Bacon Slicer

,

SS Frozen Meat Slicing Machine

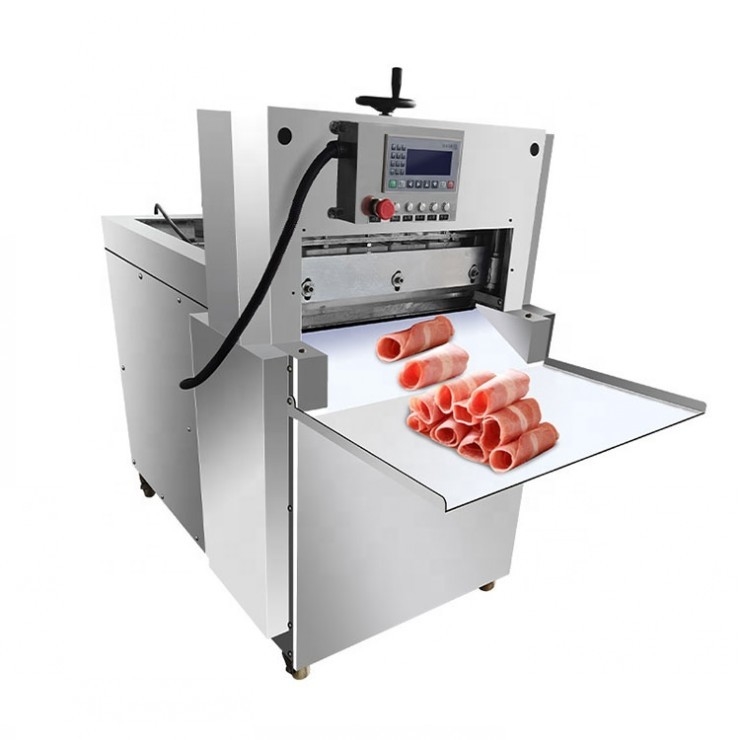

Stainless Steel Full Automatic Cnc Lamb Roll Bacon Slicer Cutting Frozen Meat Slicing Machine



1. The Meat Slicer machine use servo, stepper motor drive to completely solve the problem of failure rate of mechanical.
2. Both the automatic pusher and feeder adopt double polished rods and lead screws.
3. The main frame is made of gray iron precision casting, and groove welding, whole frame use HT450 precision casting and then heat treated and processed by a precision casting machine, the hole and shaft are closely matched, high strength, wear resistance and heat resistance, good shock absorption and runs without noise.
4. It can manufacture the whole machine with SUS304 Stainless steel.
5. The machine also can manufacture with the out conveyor, the length of conveyor is customized made as you needs.
Model
RJ-2
RJ-4
RJ-6
RJ-8
Cutting rolls quantity
2 rolls
4 rolls
6 rolls
8 rolls
Capacity
50-120kg/h
100-180kg/h
150-200kg/h
200-300kg/h
Power
1.1kw
1.5kw
2.2kw
2.2kw
Cutting speed
50-60pcs/min
Cutting thickness
Adjustable

Input width

(customer made)
230mm
430mm
630mm
830mm

Input height

(customer made)
180mm

Input length

(customer made)
700mm
Dimensions (mm)
1150*500*1350mm
1300*700*1350mm
1300*920*1400mm
1300*1150*1450mm
Weight
100kg
200kg
350kg
600kg

meat roll machine

Features:
* Slice fast, high production efficiency,60 times per minute knife speed.
* Cut meat roll thickness uniform, neatly arranged.the thickness adjustable as you need.
* The input meat height is 18cm(cutting height and method also can be customized made as requirement).
* Adopt PLC controller, automatic and simple operation. all functionsare used point switch, easy and fast.
* With urgent stop; equipped with a cover and infrared sensor device in the front of cutting knife; and sensor protective cover at feeding part. When theprotective cover is open, the cutter will automatically power off to stop running, The cutter can not run unless the security door was shut, double safety protection, to ensure safety.
* The blade is made of imported steel composite rolling (sharp, wear-resistant, long service life, neat and beautiful coil
shape).
