Product Details:
|
| Name: | Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine | Type: | Screw Briquetting Charcoal Briquette Machine |
|---|---|---|---|
| Warranty: | 12 Months | Voltage: | 380V 50hz |
| Dimension(l*w*h): | 1800*600*1600mm | Weight: | 600 KG |
| Diameter Of Briquettes: | 50~80mm Customized | Spare Parts: | Screw Propreller,mold Cyclinder |
| High Light: | Sawdust Briquetting Press Machine,380V Sawdust Briquetting Press Machine,80mm Wood Chip Briquette Press |
||

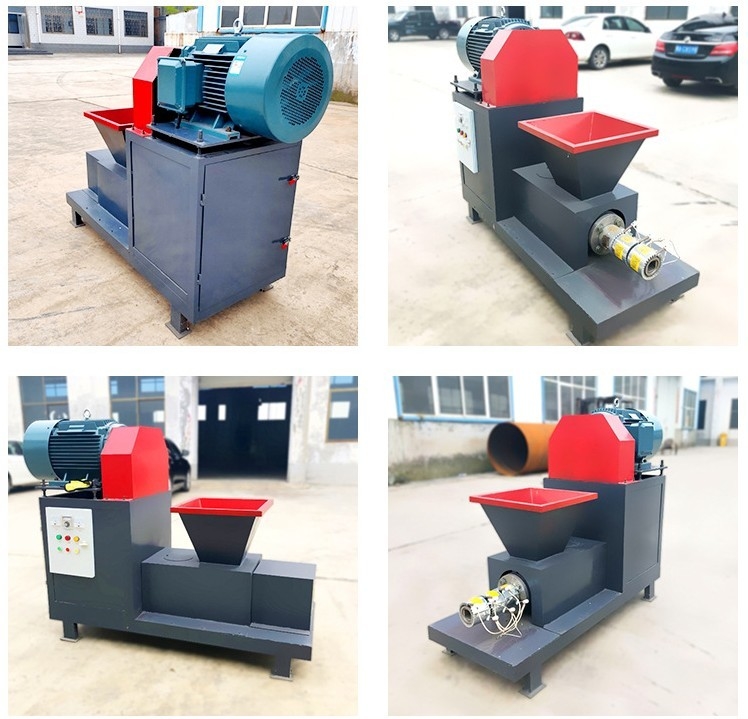

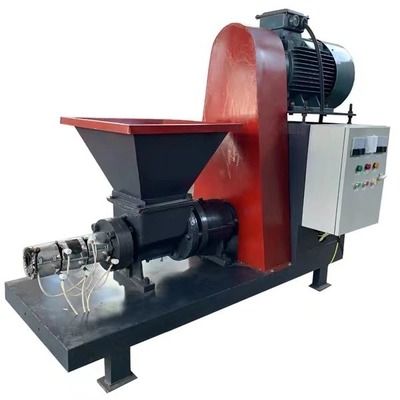

Sawdust Briquetting Press Machine/Briquette Press With Wood Chips/Rice Husk And Other Agriculture Wastes
Brife introduction of briquette press :
1. Sawdust briquetting press machine can make the wood ,sawdust. rice husk ,coconut shell and othe biomass materials into briquettes.
2. The final wood briquettes charcoal which is used for cook heatig and barbeque which is very popurlar all over the world .
3. The briqutte press is very easy to operate and maintain.
| Diameter of briquette | Motor | Capacity | Inlet diameter | Dimension |
| 50mm | 18kw | 180-200kg/h | ≤5mm | 1.7×0.66×1.5m |
| 50mm | 22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
| 80mm | 18.5-22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
briquette press :
1The moisture of raw material must be between 8%-12%.
2 Use the hot air drying heating system with excellent performance.
3.No binder or noxious chemical need to use.
The process for briquetting press as follow:
1 Crush the raw material into small pieces (diameter is about 3-5mm)
2 Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3 Put the material into feed let of briquette machine
4 Produce the briquette stick from biomass material without any additive
5 Carbonized the briquette stick
