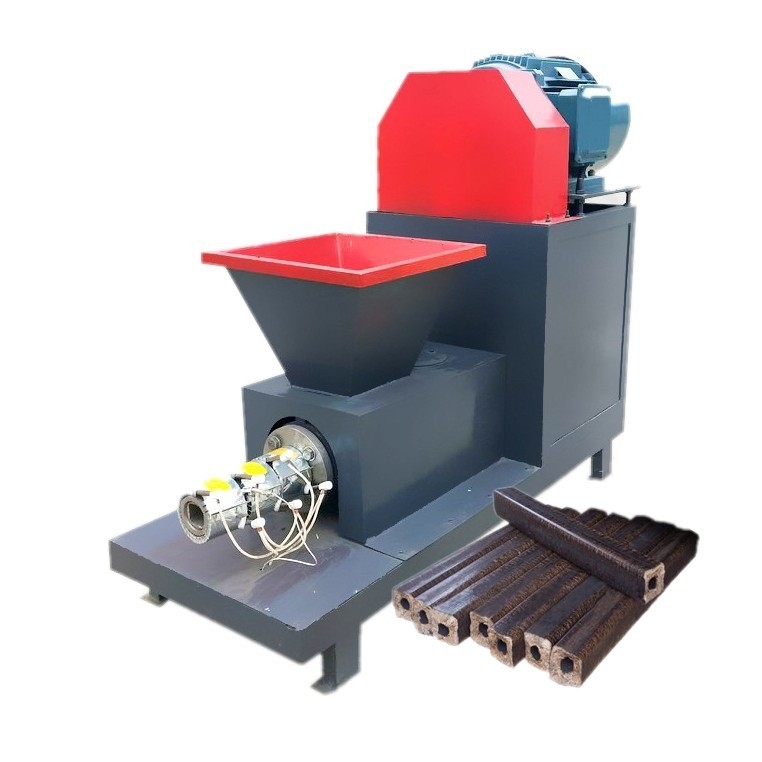

Small Biomass Charcoal Bagasse Wood Coal Sawdust Briquette Extruder Forming Press
| Name: | Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine | Type: | Screw Briquetting Charcoal Briquette Machine |
| Warranty: | 12 Months | Voltage: | 380V 50hz |
| Dimension(l*w*h): | 1800*600*1600mm | Weight: | 600 KG |
| Diameter of briquettes: | 50~80mm Customized | Spare parts: | Screw Propreller,mold Cyclinder |
| High Light: | Bagasse Wood Coal Sawdust Briquette Extruder 300kg/h,Biomass Charcoal Sawdust Briquette Extruder |
||
Mechanical small biomass charcoal bagasse wood coal sawdust briquette extruder forming press making machine
The Biomass Extrude Machine is the main molding equipment in sawdust production line. It mainly uses carbonaceous wood materials such as sawdust, sawdust, rice husk, peanut shell and plant straw, and passes through high temperature and high pressure process without any binder, extruded into a solid hollow bar.
| Diameter of briquette | Motor | Capacity | Inlet diameter | Dimension |
| 50mm | 18kw | 180-200kg/h | ≤5mm | 1.7×0.66×1.5m |
| 50mm | 22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
| 80mm | 18.5-22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
The raw materials must meet the requirements: moisture 8%-12%, size 3-5mm.
Working principle :
The raw material that meets the requirements of the rod is placed in the feeding hopper of the equipment, and a high temperature and high pressure zone is formed under the action of the screw propeller and the heating coil, and the loose raw material is processed into a hollow rod body through the forming cylinder through spiral extrusion.
Final product :
1The available shape: square, hexagonal, hexagon with edge.
2The available diameter could be: 50mm,60mm,80mm.
3.Length could be: 20cm,30cm, 40cm, 50cm
4.Gravity: 1300—1900kg/m³ Calorific value: 4500-5000kcal/kg.
