Product Details:
|
| Name: | Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine | Type: | Screw Briquetting Charcoal Briquette Machine |
|---|---|---|---|
| Warranty: | 12 Months | Voltage: | 380V 50hz |
| Dimension(l*w*h): | 1800*600*1600mm | Weight: | 600 KG |
| Diameter Of Briquettes: | 50~80mm Customized | Spare Parts: | Screw Propreller,mold Cyclinder |
| High Light: | 22kw Wood Fire Log Making Machine,CE BBQ Fire Log Making Machine,380V Biomass Powder Sawdust Briquette Machine |
||

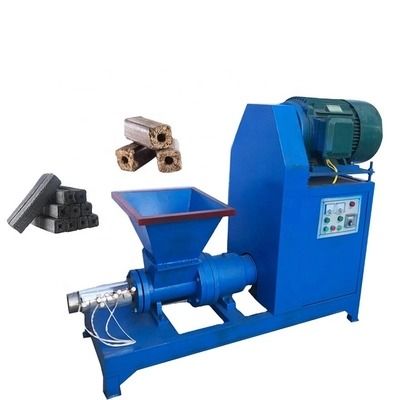

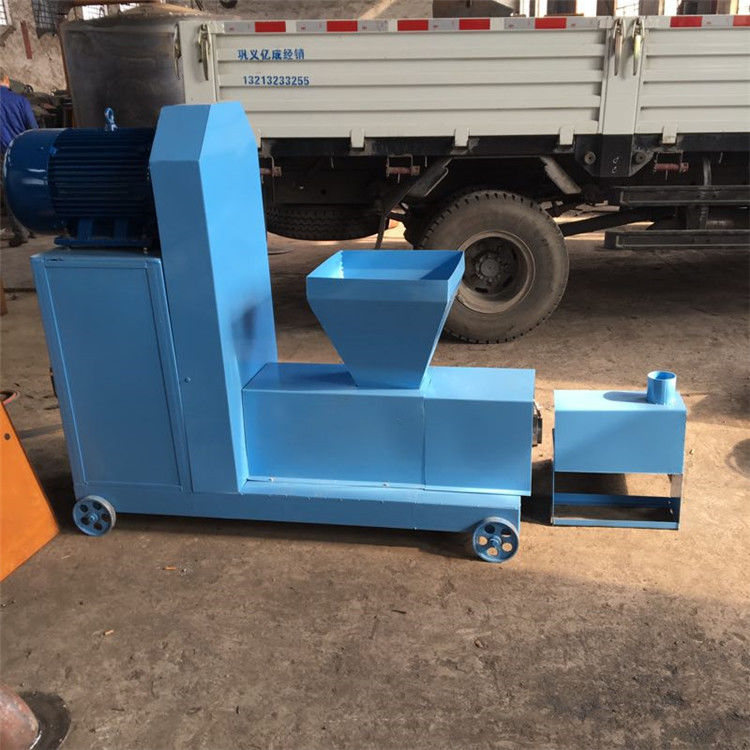

Biomass Powder Sawdust Briquette Wood Fire Log Making Machine for BBQ Cooking
Introduction
wood charcoal briquette machine has been awarded 2 patents( patent number:200530100650.5,250020031212.2) showing the features of high capacity, low energy consumption, compact and durable.many performance data such as capacity,wood briquettes density,electricity consumption and wearable degree has reached advanced level.
| Diameter of briquette | Motor | Capacity | Inlet diameter | Dimension |
| 50mm | 18kw | 180-200kg/h | ≤5mm | 1.7×0.66×1.5m |
| 50mm | 22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
| 80mm | 18.5-22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
usage and features
1. wood charcoal briquette machine can be used in producing high quality wood charcoal stick with sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.
2. It's equipped with automatic temperature control system and designed to produce high density wood briquette from biomass. the product of this machine can be used to heat boiler, fireplace, etc for warm in house.
3. Perfect working performance:This machine adopts temperature adjusting indicator, it can work steadily at the fixed temperature and has the feature of rational structure, being easy to operate and maintain.
4. Superior quality of the final products:The solid fuel produced by this machine has the feature of being easy to light, and having high calorific value (over 20% higher than normal wood), little pollution when burning and high density which is favorable to transportation. This machine can make full use of the remainder of farm and forest.
5. Uniform size:A inner moulding is equipped with the shaping mould,which ensures the shape and final size of the products.
6. Our briquette machine with higher capacity and lower energy consumption.
7. Production moisture is 8-12% ,raw material size below 3-5mm.
8. This series of briquette machine is a new type of wood briquette machine,the finished products are more solid.
9. This Wood Briquette Machine with automatic temperature control system is designed to produce high density wood briquette stick from biomass.
Advantage
1. No binder is needed during processing ,and so no pollution when it burns.
2. We have added 5-6 grooves in the machine to discharge the vapors and help increase density. Moreover,we add a wedding-ring in the machine ,which also helps to increase the density of wood sticks.
3. Wood sticks is easy for carrying and packaging .We have also design trolleys to help load the sticks.
4. The wood charcoal briquette making machine can be linked to the drier to form an automatic line .This is from our design with patent rights. It can save labour cost.
