Product Details:
|
| Name: | Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine | Type: | Screw Briquetting Charcoal Briquette Machine |
|---|---|---|---|
| Warranty: | 12 Months | Voltage: | 380V 50hz |
| Dimension(l*w*h): | 1800*600*1600mm | Weight: | 600 KG |
| Diameter Of Briquettes: | 50~80mm Customized | Spare Parts: | Screw Propreller,mold Cyclinder |
| High Light: | Firewood Agro Waste Briquette Making Machine,50mm Briquette Making Machine,220kg/h Rice Husk Briquette Machine |
||
Manufacturing Fire Wood Agro Waste Briquette Making Machine Small Rice Husk Briquette Machine For Rice Husk

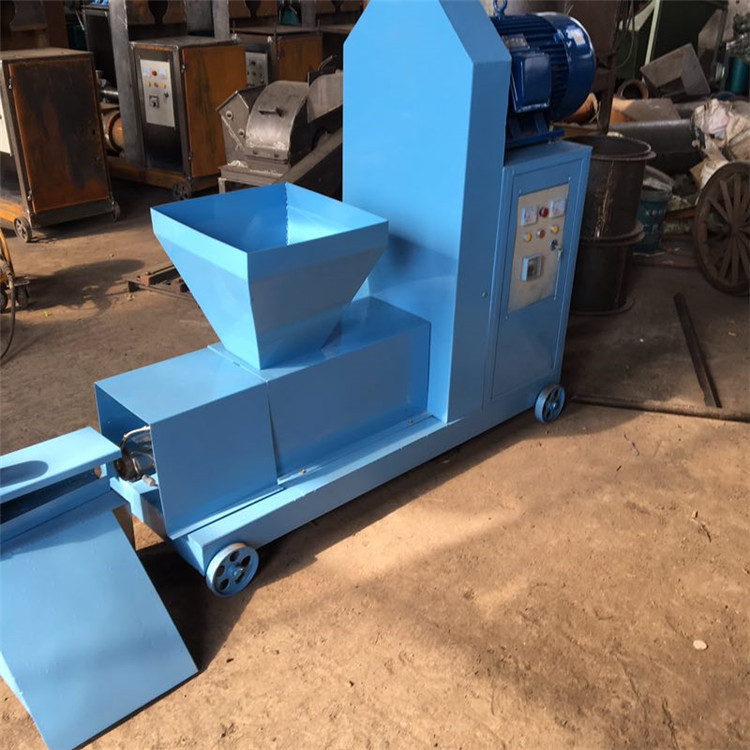

This is sawdust briquette making machine.Machine adopt good quality carbon steel,the service life over 10 years.The material can be various biomass,like palm kernel,peanut shell,branch,logs,ect.The material size must less 5mm.If material too big,we will recommend you crusher according to your requirement.Besides the material size must less 5mm,the moisture of material should be 12%.Too wet or too dry will cause bad forming effect.If your material moisture over 12%,we have sawdust drying machine.After crushing,the material was delivery to drying machine,then it was sent to forming machine.
| Diameter of briquette | Motor | Capacity | Inlet diameter | Dimension |
| 50mm | 18kw | 180-200kg/h | ≤5mm | 1.7×0.66×1.5m |
| 50mm | 22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
| 80mm | 18.5-22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
Raw material:
Peanut shell,Rice husk,Sawdust,Little branch,Corn cob,Bagasse,Leaves,Logs,Palm kernel,Nuts shell,Straw,Bamboo,Cotton stalk,ect.If you unsure material is ok,please send to us,will offer free test service for you.
The work principle of this machine is sawdust was putted into machine,the screw will push material into sleeve.After high temperature and high pressure, the raw materials are extruded into different shapes.

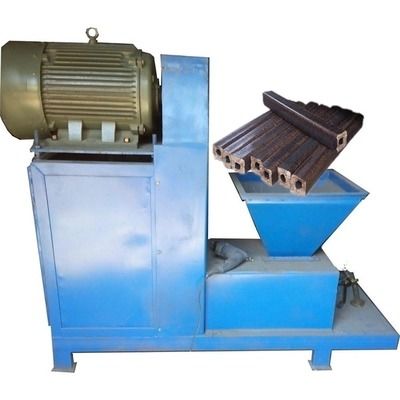

The final product of our sawdust briquette machine can be square or hexagon.If you want other shape,please contact our service center,we will offer customized service for you.Generally speaking,the diameter of sawdust briquette is 50 mm.We have exported many countries all over the world.
And we found it is popular diameter in the world.You can decide the sawdust briquette length when processing.If you want more bigger or smaller sawdust briquette,we can also offer,please contact me.
There are three spare parts of sawdust briquette:Heating ring,Screw,Sleeve.All of them adopt good quality material.We advice buy some spare parts when you order.Once there has some wrong,change it.It will save labor and time.
