Product Details:
|
| Name: | Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine | Type: | Screw Briquetting Charcoal Briquette Machine |
|---|---|---|---|
| Warranty: | 12 Months | Voltage: | 380V 50hz |
| Dimension(l*w*h): | 1800*600*1600mm | Weight: | 600 KG |
| Diameter Of Briquettes: | 50~80mm Customized | Spare Parts: | Screw Propreller,mold Cyclinder |
| High Light: | Biomass Waste Briquettes Making Machine,Coffee Husk Briquettes Making Machine |
||

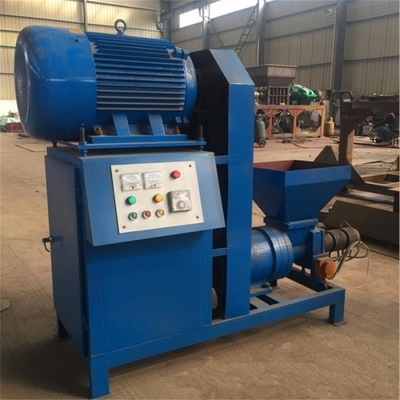

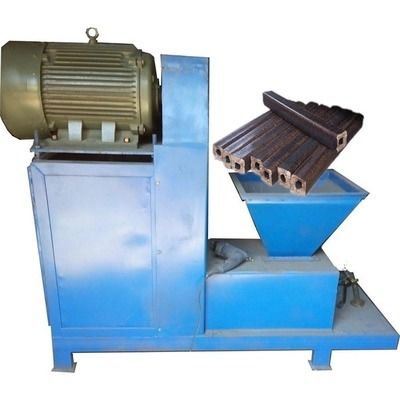

Biomass waste coffee husk wood charcoal sawdust wood briquettes making machine for sale
Wood charcoal briquette making machine shows the features of high capacity, low energy consumption, compact and durable. Many performance data such as capacity, wood briquettes density, electricity consumption and wearable degree has reached advanced level. Charcoal briquette machine can be used as charcoal powder briquette machine by replacement of some spare parts. The out diameter of finished briquettes is 50mm/80mm.
| Diameter of briquette | Motor | Capacity | Inlet diameter | Dimension |
| 50mm | 18kw | 180-200kg/h | ≤5mm | 1.7×0.66×1.5m |
| 50mm | 22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
| 80mm | 18.5-22kw | 220-300kg/h | ≤5mm | 1.78×0.66×1.53m |
Characteristic:
No binder or noxious chemical need to use.
The humidity of the raw materials is controlled in 8-12%.
Using the advanced Hot air drying system with the perfect performance.
After the processing of High temperature, purification, smoke removing, the carbonizing equipment transforms the semi-finished bio-fuel briquette into a smoke-free, tasteless, non-toxic cleaning carbon.
Working Principle
Briquetting is a process that biomass is compressed under high pressure and high temperature. The machine uses a large screw to grind,compress and extrude the biomass into briquettes.
The self bonding of biomass to form a briquette involves the thermo-plastic flow of the biomass. The natural lining content in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, binds the particles of wood together, thus binding,compressing the biomass to form into high density briquettes.
During this process, no binder need to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires.
