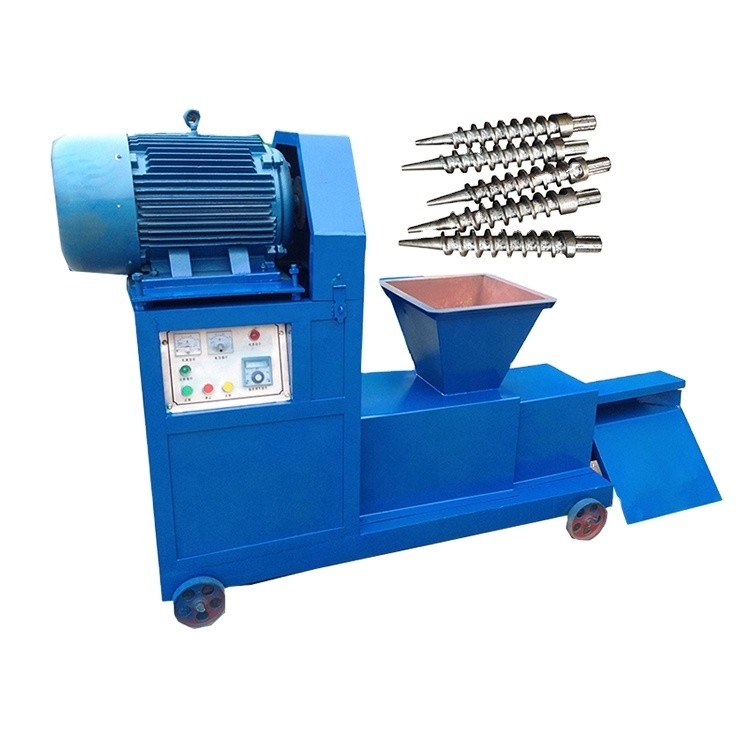

Screw Wood Log Sawdust Charcoal Briquette Machine In Uganda

I'm Online Chat Now

Screw Wood Log Sawdust Charcoal Briquette Machine In Uganda

Screw Wood Log Sawdust Charcoal Briquette Machine In Uganda
Screw Wood Log Sawdust Charcoal Briquette Machine In Uganda

Large Image :  Screw Wood Log Sawdust Charcoal Briquette Machine In Uganda

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: MK-50,MK-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000.00 - 2400.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Screw Wood Log Sawdust Charcoal Briquette Machine In Uganda

Description
Name: Fully Automatic Wood Waste Sawdust Screw Briquetting Charcoal Making Machine Type: Screw Briquetting Charcoal Briquette Machine
Warranty: 12 Months Voltage: 380V 50hz
Dimension(l*w*h): 1800*600*1600mm Weight: 600 KG
Diameter Of Briquettes: 50~80mm Customized Spare Parts: Screw Propreller,mold Cyclinder
High Light:

Log Sawdust Charcoal Briquette Machine

,

Screw Wood Charcoal Briquette Machine

charcoal briquette making machine in uganda wood log sawdust briquette machine

♦ 1. This is a sawdust briquette-making machine. The machine adopts good quality carbon steel, the service life over 10 years.

♦ 2. If the material too big, we will recommend you crusher according to your requirement. Besides the material size must less than 5mm, the moisture of the material should be 12%.

♦ 3. Too wet or too dry will cause a bad forming effect.

♦ 4. If your material moisture over 12%, we have a sawdust drying machine. After crushing, the material was delivered to the drying machine, then it was sent to forming machine.



Diameter of briquette Motor Capacity Inlet diameter Dimension
50mm 18kw 180-200kg/h ≤5mm 1.7×0.66×1.5m
50mm 22kw 220-300kg/h ≤5mm 1.78×0.66×1.53m
80mm 18.5-22kw 220-300kg/h ≤5mm 1.78×0.66×1.53m


Raw material:

Peanut shell, Rice husk, Sawdust, Little branch, Corncob, Bagasse, Leaves, Logs, Palm kernel, Nuts shell, Straw, Bamboo, Cotton stalk, etc. If you unsure material is ok, please send it to us, will offer a free test service for you.



The working principle of this machine is sawdust was put into the machine, the screw will push the material into the sleeve. After high temperature and high pressure, the raw materials are extruded into different shapes.



There are three spare parts of sawdust briquette: Heating ring,Screw,Sleeve.All of them adopt good quality material.We advice buy some spare parts when you order.Once there has some wrong,change it.It will save labor and time.





Screw Wood Log Sawdust Charcoal Briquette Machine In Uganda 0

Screw Wood Log Sawdust Charcoal Briquette Machine In Uganda 1

Screw Wood Log Sawdust Charcoal Briquette Machine In Uganda 2
