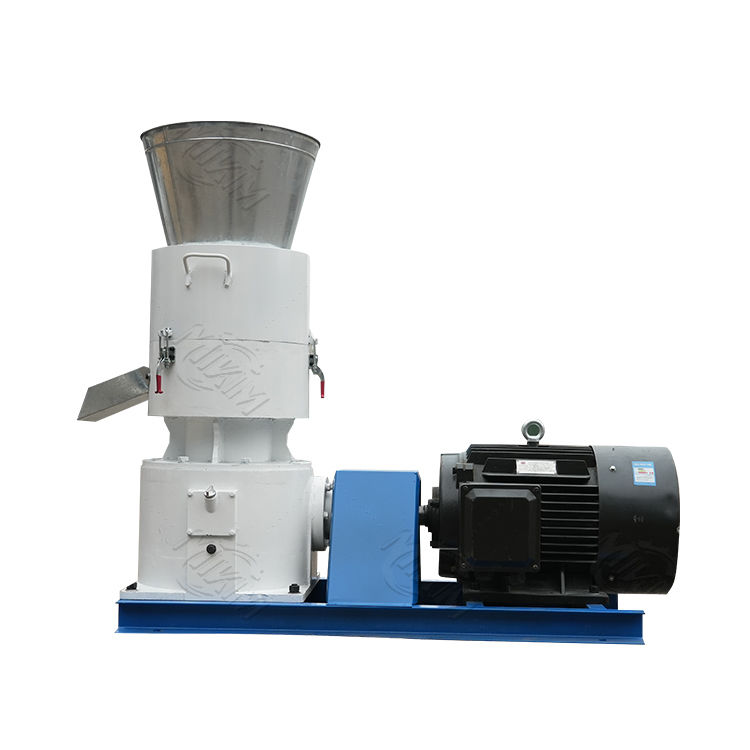

Professional biomass wood sawdust pellet machine

I'm Online Chat Now

Professional biomass wood sawdust pellet machine

Professional biomass wood sawdust pellet machine
Professional biomass wood sawdust pellet machine

Large Image :  Professional biomass wood sawdust pellet machine

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: KL-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $500.00 / Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Professional biomass wood sawdust pellet machine

Description
Name: Poultry Feed Pellet Machine ITEM: Pellet Making Machine
Weight (KG): 350 Driven Type: Motor ,diesel Engine,PTO
Pellet Diameter: 2-12 Mm (can Be Selecation) Warranty: 1 Year
Raw Material: Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Show Room: Viet Nam, Indonesia,China
Key Selling: Easy To Operate Power Supply: Diesel Engine/gasoline/motor/PTO Driven
Certificate: CE Dust Remove System: Cyclone And Bag Dust, To Remove The Dust
Capacity: 800-1000kg/h

Professional biomass wood sawdust pellet machine

On the market, there are two types wood pellet machine,flat die and ring die(horiztonal type and vertical ring die pellet machine)Wood pellets machine also called wood pellet making machine,pellet press machine, is a biomass equipment which is used to press small size wood into 6/8mm wood pellets.

Wood pellets machine belongs to the 6th Vertical ring die.Double layer, both side can be used, enhanced the lifetime of spare parts and reduce cost.



Professional biomass wood sawdust pellet machine 0



Model

Capacity

(kg/h)

Power

(kw)

Specification

(mm)

Weight(t)

Dimension

(mm)

RKL-250 100-200 15 4-6 0.5 1400*600*1000
RKL-280 150-250 22 4-6 0.65 1760*670*1600
RKL-300 100-300 30 4-8 0.76 1860*670*1600
RKL-350 300-600 37 4.5-10 2.2 1900*850*1750
RKL-400 500-800 55 4.5-10 4.3 2300*1100*1900
RKL-550 1000-1500 90 4.5-12 5.5 2350*1100*2050
RKL-800 1500-2500 160 4.5-12 6.8 3200*1235*2700
RKL-1200 3000-5000 320 4.5-15 19 3800*1700*4200



Professional biomass wood sawdust pellet machine 1



Wood pellet machine Features:



(1) Adopt reduction box with low noise, long lifespan gear and can rotate forward and reverse. Other manufacturers adopt low cost bevel gear that cannot rotate reverse.

(2) The pressing die and main shaft adopt Cr12, which is more wear-resisting because of high Cr content. The special heat treatment makes their hardness to be 60HRC. Other manufacturers use 45# instead with low hardness and wear-resistance.



(3) The roller, pressing die, main shaft and roller shaft are processed by vacuum heat treatment other than carburizing and quenching (that other manufacturers use) to have higher hardness, wear-resistance and longer lifespan.



(4) The sealing of spare parts for small pellet machine is excellent. The roller shaft is sealed on both sides, while other manufacturers only seal one side.



(5) The feeding hopper applies whole sheet metal edge instead of welding to be more stable and firm.



(6) The compression ratio of small pellet press determines the quality of your pellets. We have professional team doing the raw material test and have obtained best compression ratio for over 20 kinds of common seen biomass.



(7) The electric components adopt top brands in China to guarantee stable performance.



Professional biomass wood sawdust pellet machine 2



PACKAGE
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.

DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order
